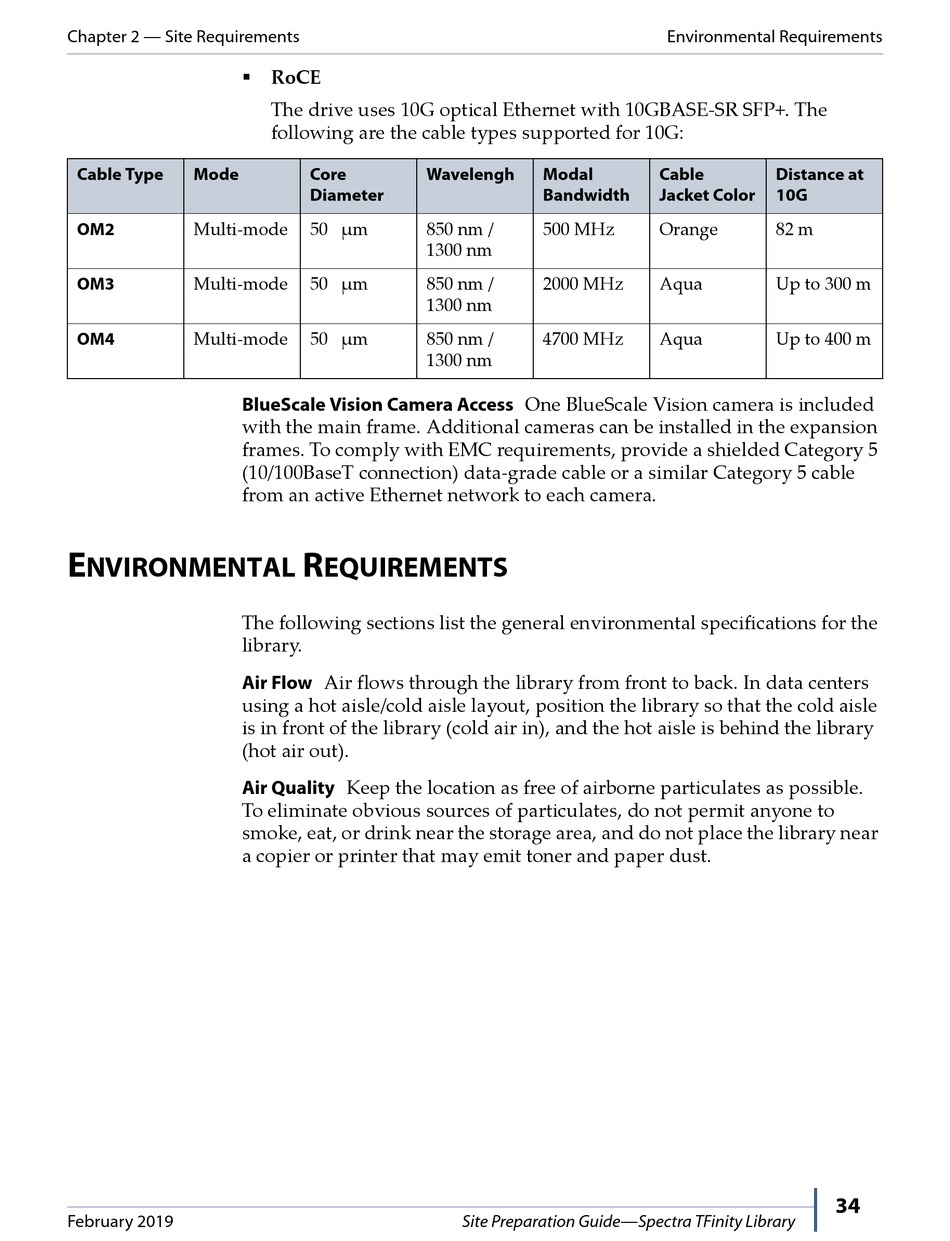

Chapter 2 — Site Requirements
 RoCE
Cable Type Mode
OM2 Multi-mode
OM3 Multi-mode
OM4 Multi-mode
BlueScale Vision Camera Access One BlueScale Vision camera is included
with the main frame. Additional cameras can be installed in the expansion
frames. To comply with EMC requirements, provide a shielded Category 5
(10/100BaseT connection) data-grade cable or a similar Category 5 cable
from an active Ethernet network to each camera.
E

NVIRONMENTAL

The following sections list the general environmental specifications for the
library.
Air Flow Air flows through the library from front to back. In data centers
using a hot aisle/cold aisle layout, position the library so that the cold aisle
is in front of the library (cold air in), and the hot aisle is behind the library
(hot air out).
Air Quality Keep the location as free of airborne particulates as possible.
To eliminate obvious sources of particulates, do not permit anyone to
smoke, eat, or drink near the storage area, and do not place the library near
a copier or printer that may emit toner and paper dust.
February 2019
The drive uses 10G optical Ethernet with 10GBASE-SR SFP+. The
following are the cable types supported for 10G:
Core Wavelengh
Diameter
50 µm 850 nm /
1300 nm
50 µm 850 nm /
1300 nm
50 µm 850 nm /
1300 nm
R
EQUIREMENTS
Modal
Bandwidth
500 MHz
2000 MHz
4700 MHz
Site Preparation Guide—Spectra TFinity Library
Environmental Requirements
Cable Distance at
Jacket Color 10G
Orange 82 m
Aqua Up to 300 m
Aqua Up to 400 m
