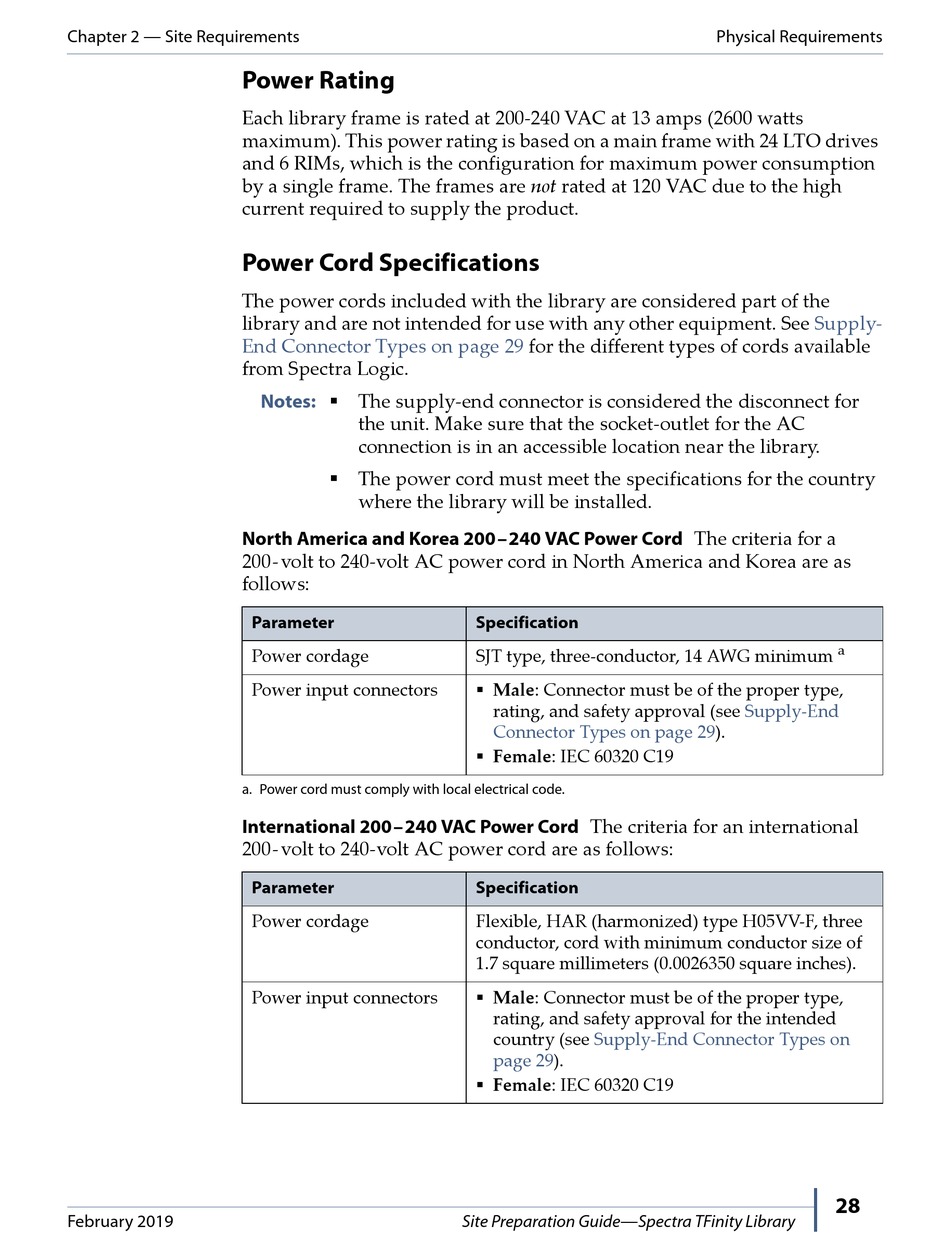

Chapter 2 — Site Requirements
Power Rating
Each library frame is rated at 200-240 VAC at 13 amps (2600 watts
maximum). This power rating is based on a main frame with 24 LTO drives
and 6 RIMs, which is the configuration for maximum power consumption
by a single frame. The frames are not rated at 120 VAC due to the high
current required to supply the product.
Power Cord Specifications
The power cords included with the library are considered part of the
library and are not intended for use with any other equipment. See
End Connector Types on page 29
from Spectra Logic.
North America and Korea 200–240 VAC Power Cord The criteria for a
200-volt to 240-volt AC power cord in North America and Korea are as
follows:
a. Power cord must comply with local electrical code.
International 200–240 VAC Power Cord The criteria for an international
200-volt to 240-volt AC power cord are as follows:
February 2019
 The supply-end connector is considered the disconnect for
Notes:
the unit. Make sure that the socket-outlet for the AC
connection is in an accessible location near the library.
 The power cord must meet the specifications for the country
where the library will be installed.
Parameter
Power cordage
Power input connectors
Parameter
Power cordage
Power input connectors
for the different types of cords available
Specification
SJT type, three-conductor, 14 AWG minimum
 Male: Connector must be of the proper type,
rating, and safety approval (see
Connector Types on page
 Female: IEC 60320 C19
Specification
Flexible, HAR (harmonized) type H05VV-F, three
conductor, cord with minimum conductor size of
1.7 square millimeters (0.0026350 square inches).
 Male: Connector must be of the proper type,
rating, and safety approval for the intended
country (see Supply-End Connector Types on
page 29).
 Female: IEC 60320 C19
