Chapter 2 — Site Requirements

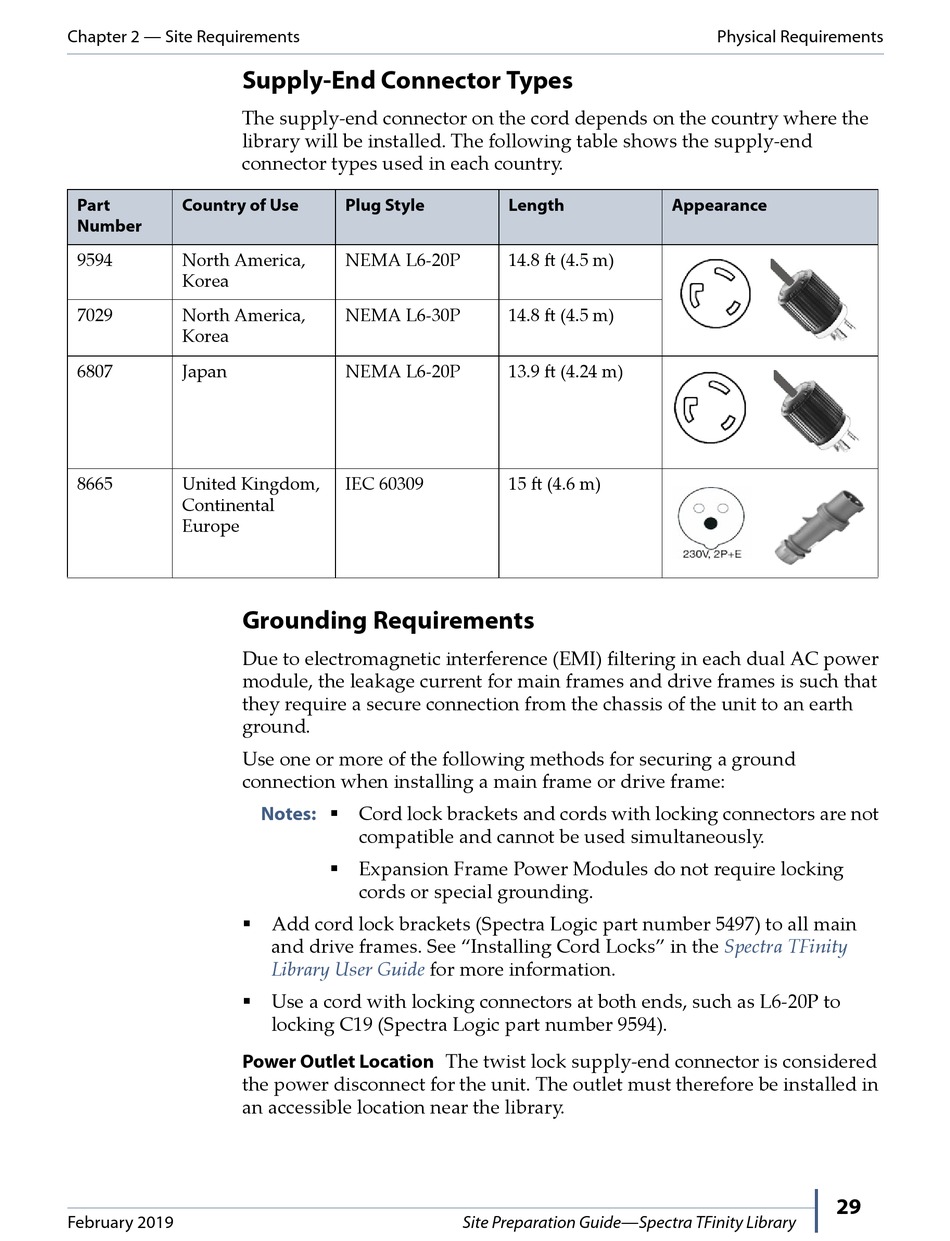

Supply-End Connector Types
The supply-end connector on the cord depends on the country where the
library will be installed. The following table shows the supply-end
connector types used in each country.
Part Country of Use
Number
9594 North America,
Korea
7029 North America,
Korea
6807 Japan
8665 United Kingdom,
Continental
Europe
Grounding Requirements
Due to electromagnetic interference (EMI) filtering in each dual AC power
module, the leakage current for main frames and drive frames is such that
they require a secure connection from the chassis of the unit to an earth
ground.
Use one or more of the following methods for securing a ground
connection when installing a main frame or drive frame:
 Add cord lock brackets (Spectra Logic part number 5497) to all main
 Use a cord with locking connectors at both ends, such as L6-20P to
Power Outlet Location The twist lock supply-end connector is considered
the power disconnect for the unit. The outlet must therefore be installed in
an accessible location near the library.
