HD920 QUICK START GUIDE
About this Guide
This guide is a quick reference that offers users basic information regarding
installation and operation of the HD920 Night Vision Indoor / Outdoor High
Definition IP Camera. For further details on installation and operation, please
refer to the User Manual at avertx.com.
CONTENTS OF CAMERA BOX
Before proceeding, please confirm that the box contains the items listed here. If
any item is missing or has defects, DO NOT install or operate the product and
contact AvertX for assistance.

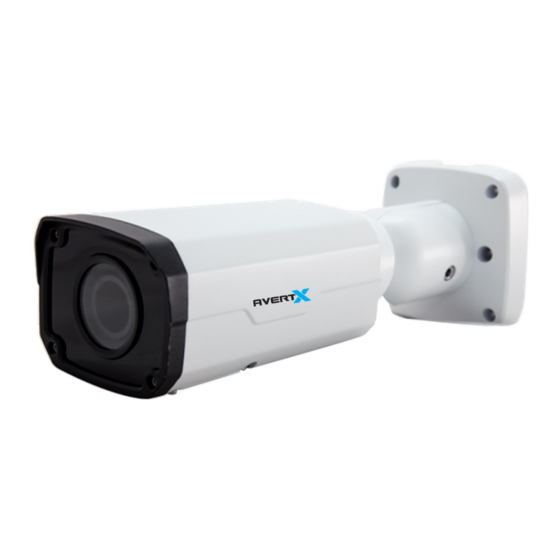

HD920 Bullet Camera
Anchors
Documents &
Waterproof Cable
Connector
Screws
Desiccant
4MP IP BULLET CAMERA
INSTALLATION
Align Holes on Wall
Adjust Aim
Note:
If mounting outside, seal the opening at the wall and the base of the
camera with silicone caulking.
Improper installation may cause damage to your camera and void the warranty.
The HD920 bullet camera can be installed
directly onto a wall or ceiling. Be sure that
the structure is strong enough to support the
camera.
1. Remove the HD920 bullet camera from
the packaging.
2. Connect the camera cable from the ceiling
or wall to the dongle on the camera. If
using the waterproof cable connector,
attach it now. See instructions below.
3. Loosen the set screw on the camera
bracket mount using the included wrench.
Aim the camera down to access screw
holes
4. Affix the camera base to the ceiling or
wall with the included self-tapping screws.
When mounting on an unprotected wall,
the cable notch should be positioned
downward.
5. Adjust the position of your camera. Be
careful not to damage the cable when
moving the camera.
6. Tighten the set screw to secure your
camera.
35077AA
