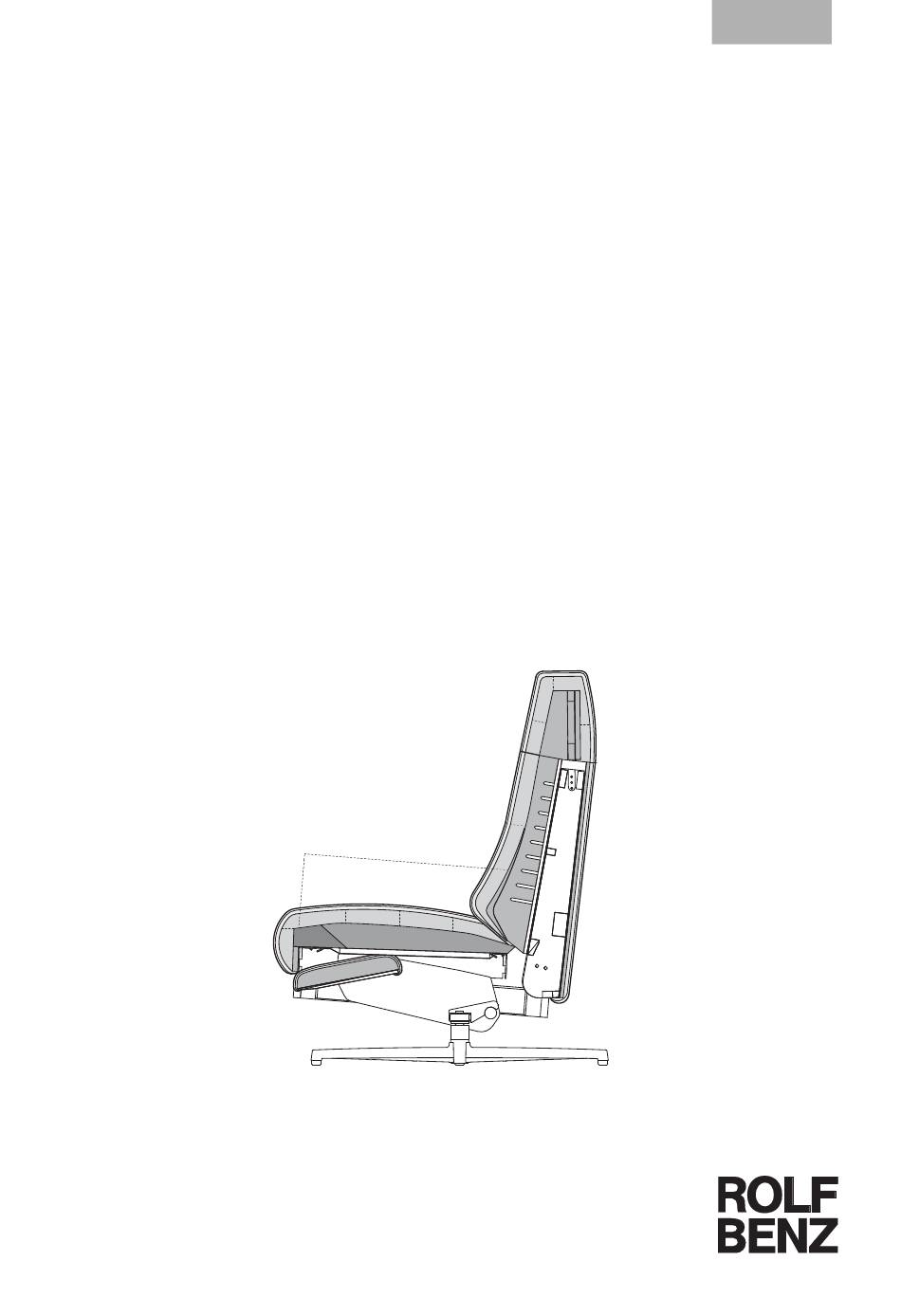

Design structure and materials
•
Metal inner frame with integrated rotary and adjustment function
•
Stepless electric motor-powered adjustment
•
Seat and backrest can be individually steplessly adjusted to the relax position
•
Nosag spring support
•
Seat made of polyurethane foam, built up in layers to achieve a balance of
different heights and firmnesses. Covered with a mat to achieve a down-like
effect, which has chambers worked into it and is filled with foam rods and
polyester fibres.
•
Back surface made from polyurethane foam, covered in polyester fleece
•
Steplessly adjustable headrest, tilt action
•
Cover
•
Leg finish:
- Cross foot aluminium, fine structure, powder-coated, silk matt
RAL 9017 traffic black
- Cross foot polished aluminium
- Star base steel, fine structure, powder-coated, silk matt RAL 9017 traffic black
- Star base steel, fine structure, powder-coated, silk matt RAL 7022 umbra grey
- Steel star base, polished chrome
Cover material and textile identification
•
See attachment to the original sample
•
Care and cleaning instructions enclosed
Medium
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P57 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rolf Benz P57 Series

Summary of Contents for Rolf Benz P57 Series

  • Page 1 English Design structure and materials • Metal inner frame with integrated rotary and adjustment function • Stepless electric motor-powered adjustment • Seat and backrest can be individually steplessly adjusted to the relax position • Nosag spring support • Seat made of polyurethane foam, built up in layers to achieve a balance of different heights and firmnesses.
  • Page 2 Design structure and materials • Metal inner frame with integrated rotary and adjustment function • Stepless electric motor-powered adjustment • Seat and backrest can be individually steplessly adjusted to the relax position • Nosag spring support • Seat made from polyurethane foam, constructed in layers of different thicknesses and firmnesses, matched to one another, and covered with polyester fleece •...
  • Page 3 Design structure and materials • Metal inner frame with integrated rotary and adjustment function • Stepless electric motor-powered adjustment • Seat and backrest can be individually steplessly adjusted to the relax position • Nosag spring support • Seat built up in layers with polyurethane foam and a highquality cold foam, coordinated in different heights and hardnesses, with a polyester fleece covering •...

  • Page 4: Table Of Contents

    Product Information/Operating Instructions Table of Contents 1. Introduction 1.1 Brief Description 1.2 Product Description 2. Important Information 2.1 Safety Information 2.2 Warning Note 2.3 Identification Plate 2.4 Explanation of Symbols 3. Operation 3.1 Version EL 01 with Power Supply Unit 3.2 Version EL 02 With Power Supply Unit and Battery 3.3 Operation and Adjustment Options 4.

  • Page 5: Introduction

    1. INTRODUCTION 1.1 Brief Description Thank you for choosing a Rolf Benz functional recliner from the 57x product family. By purchasing this piece of furniture, you are the owner of functional furniture with an electrical adjustment function for the back and seat. We have put together the most important information about your new upholstered furniture.

  • Page 6: Important Information

    2. IMPORTANT INFORMATION 2.1 Safety Information The Rolf Benz EL functional recliner should be positioned on a flat and even surface. Position the functional furniture at a sufficient distance from other objects and walls to avoid causing damage to them. Furniture, walls and the like must not prevent the furniture from transitioning from the sitting to the relaxed position.

  • Page 7: Warning Note

    Please do not attempt to rectify any malfunctions of the functional furniture within the furniture itself. Measures such as exchanging or repairing electrical components may be carried out only by a certified electrician or by ROLF BENZ customer service. 2.2 Warning Note –...
  • Page 8 – Children must not play with the device. – Before you operate the functional furniture, please ensure that the area below the seat is free from any objects. – The functional furniture is not suitable for use in rooms with a high level of humidity. –...

  • Page 9: Identification Plate

    2.3 Identification Plate The sticker with the model description and serial number of the Rolf Benz 57x product family is located on the underside of the upholstered furniture. The electronic compo- nents are also labelled. Rolf Benz AG & Co. KG Haiterbacher Straße 104...

  • Page 10: Operation

    3. OPERATION 3.1 Version EL 01 with Power Supply Unit The functional furniture in the 57x product family is delivered assembled. Scope of delivery: – 1 power cable with country-specific connector plug (cable A) – 1 power supply unit LIMOSS MC 120 –...

  • Page 11: Version El 02 With Power Supply Unit And Battery

    3.2 Version EL 02 With Power Supply Unit and Battery The functional furniture of the Rolf Benz 57x product family is delivered assembled. Scope of delivery: – 1 power cable with country-specific connector plug (cable A) –...
  • Page 12 Power cable with europlug (cable A) Power supply unit LIMOSS MC120 Connecting cable (cable B) The functional furniture must be operated exclusively with the components provided (power cable, power supply unit and connecting cable). If other components are used, this may cause damage to the furniture and the con- trol of the functional furniture and endanger persons as a result.
  • Page 13 Ensure that the power socket is always freely accessible. The electronic po- wer supply unit must not be covered by any objects owing to the heat that it produces. Charge the battery before using it for the first time. A charge cycle takes bet- ween 3 and 6 hours.

  • Page 14: Operation And Adjustment Options

    3.3 Operation and Adjustment Options Sit, lounge, lie down, chill, sleep: Thanks to its unique comfort function, the Rolf Benz functional furniture in the 57x product family easily turns into a recliner chair. The func- tion transitions smoothly and organically between the different settings. The touch sensors A and B for operating the adjustment functions are affixed to the right outer side of the seat on the right side section.

  • Page 15: Care And Maintenance

    Headrest inclination: Individual comfort by steplessly adjusting the headrest inclinati- on: Simply grasp the headrest by the two upper corners and push or pull it to the required position. The back is not suitable as a seat. The footrest is not suitable as a seat. 4.
  • Page 16 Cleaning and care of metal surfaces Dust regularly using a soft dry cloth. Wipe away any stubborn dirt using a damp cloth or sponge dipped in a mild washing up liquid or household detergent solution (if necessary leave the cleaning solution for some time to soften any remaining dirt).

  • Page 17: Disposal

    5. DISPOSAL Disposal of electrical and electronic components: The electrical and electronic components contain cables, metals and plastics. Accor- ding to EU directives, these components must not be handled as household waste but must be sent to a collection point for recycling electrical and electronic devices. By contributing to the correct disposal of this product, you are protecting the environment and human health.

  • Page 18: Troubleshooting

    Please do not attempt to rectify any malfunctions of the functional furniture within the furniture itself. Measures such as exchanging or repairing electrical compo- nents may be carried out only by a certified electrician or by ROLF BENZ customer service.

  • Page 19: Technical Data

    7. TECHNICAL DATA Models: L-SE-EL 57x EL01 electrical adjustment without battery L-SE-L-EL 57x EL01 electrical adjustment without battery Weight: L-SE-EL 57x 57 kg L-SE-L-EL 57x 59 kg Power supply unit: LIMOSS power supply unit MC120 Device type: Input voltage 100 – 240 V AC Output voltage 29 V DC Security through NTC temperature sensor, primary fuse, overload protection, overcurrent...
  • Page 20 Motors: LIMOSS motor MD146-65-L2-140-190 (seat) Compressive force up to max. 1,300 N Traction force up to max. 1,300 N Duty cycle max. 10% Continuous operation max. 2 minutes with subsequent 18 minute rest LIMOSS motor MD125-65-L3-194-042 (back) Compressive force up to max. 2,600 N Traction force up to max.

  • Page 21: Warranty

    8. WARRANTY Rolf Benz offers a 5-year warranty on the construction, upholstery material and fabrica- tion of the entire upholstery structure. A separate regulation based on the statutory war- ranty applies to the covers. For more information, please refer to the quality certificate.
  • Page 22 We hereby declare that the above-mentioned products by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy basic health and safety requirements as well as the guidelines named below. If the product is modified without our approval, this declaration is no longer valid..
  • Page 23 TECHNICAL DATA ROLF BENZ 571...
  • Page 24 Star base steel, fine structure, powder-coated, silk matt RAL 7022 umbra grey • Steel star base, polished chrome 97 175 Wave formation and depressions in the seat area are unavoidable, due to comfort and design reasons, even in high quality Rolf Benz upholstered furniture. All measurements are approximate.
