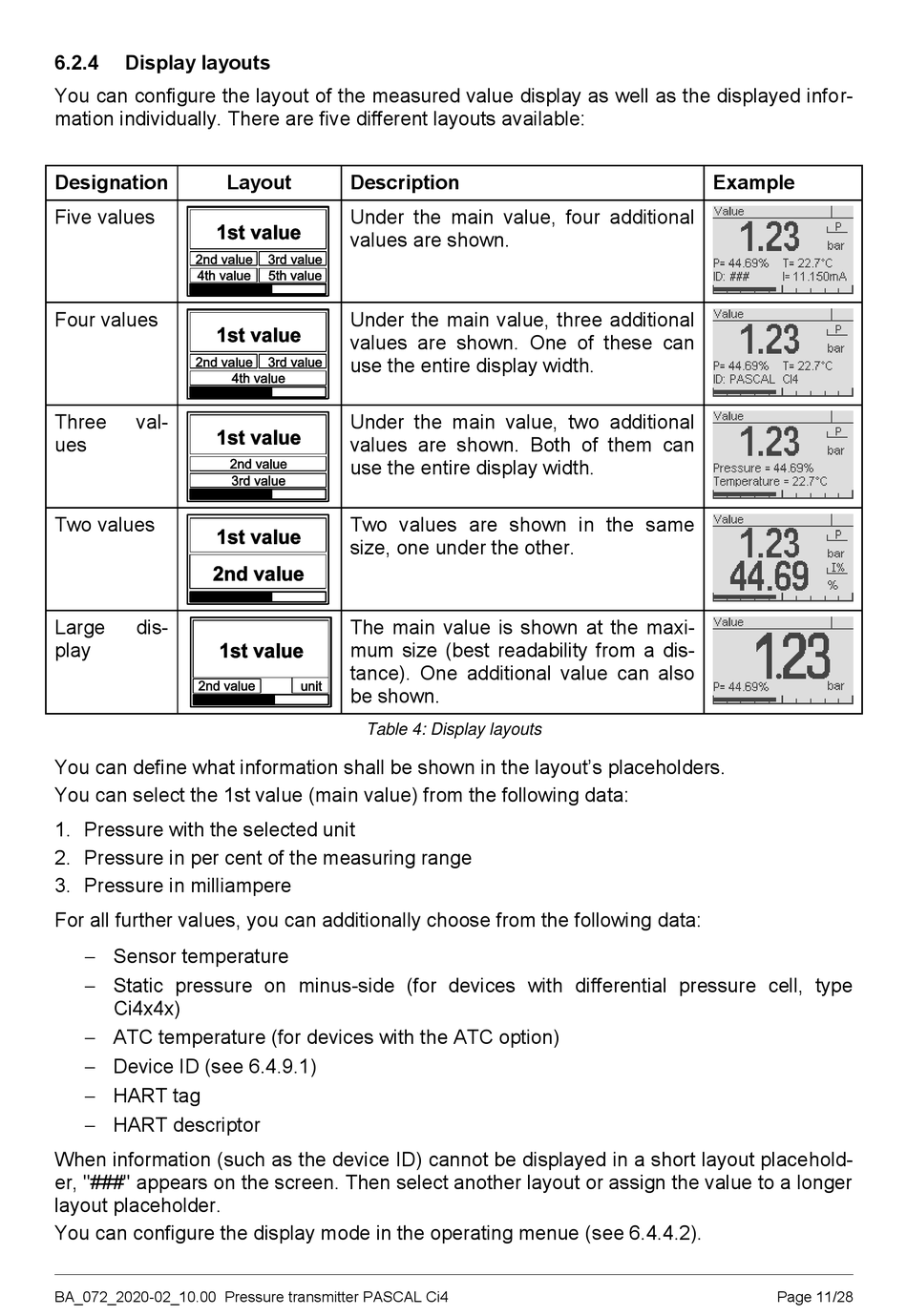

6.2.4 Display layouts
You can configure the layout of the measured value display as well as the displayed infor-
mation individually. There are five different layouts available:
Designation
Five values
Four values
Three val-
ues
Two values
Large dis-
play
You can define what information shall be shown in the layout's placeholders.
You can select the 1st value (main value) from the following data:
1. Pressure with the selected unit
2. Pressure in per cent of the measuring range
3. Pressure in milliampere
For all further values, you can additionally choose from the following data:
 Sensor temperature
 Static pressure on minus-side (for devices with differential pressure cell, type
Ci4x4x)
 ATC temperature (for devices with the ATC option)
 Device ID (see 6.4.9.1)
 HART tag
 HART descriptor
When information (such as the device ID) cannot be displayed in a short layout placehold-
er, "###" appears on the screen. Then select another layout or assign the value to a longer
layout placeholder.
You can configure the display mode in the operating menue (see 6.4.4.2).
BA_072_2020-02_10.00 Pressure transmitter PASCAL Ci4
Layout Description
Under the main value, four additional
values are shown.
Under the main value, three additional
values are shown. One of these can
use the entire display width.
Under the main value, two additional
values are shown. Both of them can
use the entire display width.
Two values are shown in the same
size, one under the other.
The main value is shown at the maxi-
mum size (best readability from a dis-
tance). One additional value can also
be shown.
Table 4: Display layouts
Example
