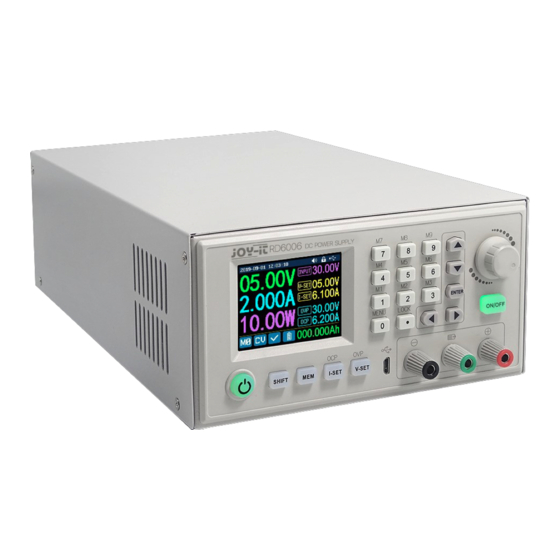

LARGE CASE FOR RD6006 JT-RD6006-Case02 1. GENERAL INFORMATION Dear customer, Thank you for purchasing our product. In the following, we will show you which things should be noted during the use. Should you encounter any unexpected problems, do not hesitate to contact us.
Page 2
2. ASSEMBLY OF VERSION A This case is made for the JT-RD6006 / JT-RD6006P and the corresponding power supply JT-RD6006-NT. Both products are not included in the scope of delivery. First of all, unscrew the eight screws from the outside and open up the case.
Page 3
Now, mount the power supply into the case. Therefore, you have to screw it from the bottom of the case with the big silver screws. Now, screw the fan control next to the Power Supply with the remaining black screws and connect the fan to the connector provided for this purpose.
Page 4
Now, connect the black cables of the fan controller and the RD6006 power supply unit to the V- terminals and the red cables to the V+ terminals. Now, you have to connect the last loose cable with the RD6006. Therefore, the black cable will be connected in IN- and red with IN+.
Page 5
The RD6006-NT has a switch with which you can set the input voltage to 110 or 230V. Now screw on the cover and your laboratory power supply unit is ready for use. You can adjust the output voltage of the RD6006-NT with the help of the fine-tuning potentiometer.
Page 6
3. ASSEMBLY OF VERSION B This case is made for the JT-RD6006 / JT-RD6006P and the related power supply JT-RD6006-NT. Both products are not included in the scope of delivery. Screw the feet onto the case with the black screws. Now, place the switch, the power connector, the fan control and the fan in the enclosure and screw them in place with the silver screws and nuts, if necessary.
Page 7
Now, mount the power supply into the case. Therefore, you have to screw it from the bottom of the case with the big silver screws. Now, connect the fan to the fan controller and the fan controller to the power supply. Therefore, connect the black cable of the fan control to the power supply with one of the anticipated terminals V- and the red cable with one of the V+ terminals.
Page 8
Now, you have to connect the last loose cables with the RD6006 and the power supply. Therefore, the black cable will be connected between IN– on the RD6006 and V– on the power supply and the red cable between IN+ on the RD6006 and V+ on the power supply. You can also connect the connector from the temperature sensor lead-out if you want to lead the temperature sensor outside of the case.
Page 9
The RD6006-NT has a switch with which you can set the input voltage to 110 or 230V. Now, screw on the cover and your laboratory power supply unit is ready for use. You can adjust the output voltage of the RD6006-NT with the help of the fine-tuning potentiometer.
