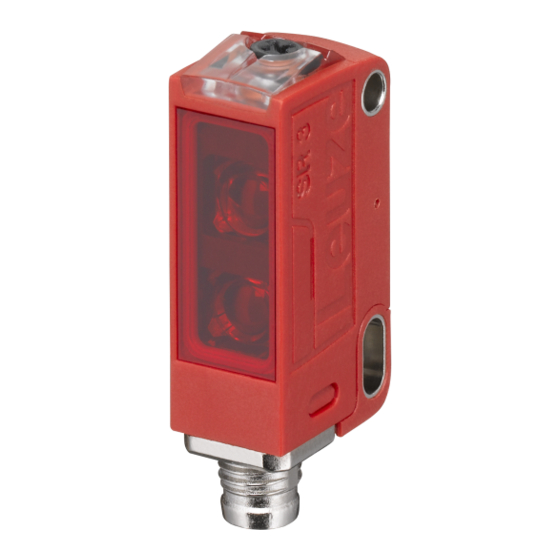

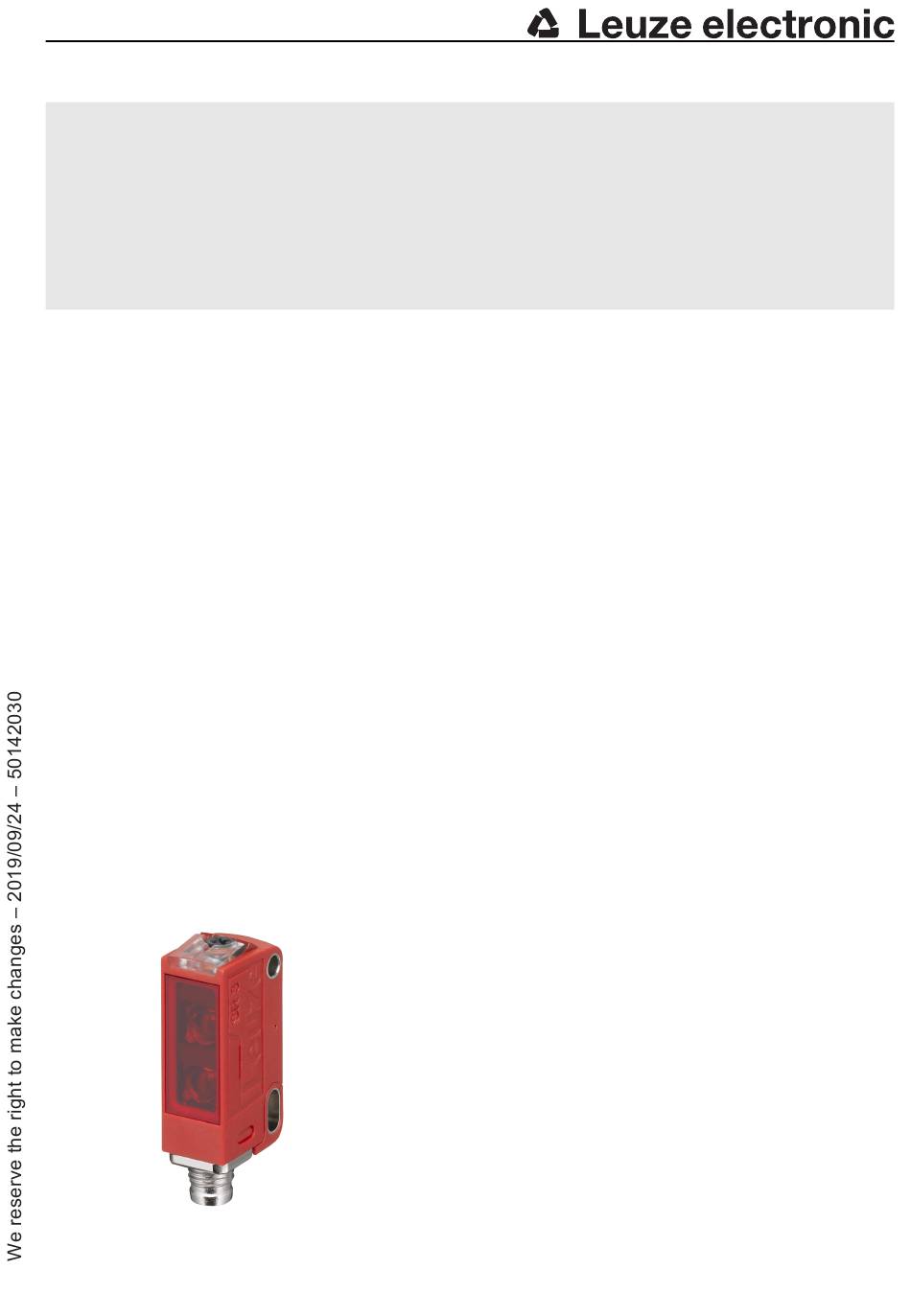

- Page 1 Label sensor HT3CI Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel.: +49 (0) 7021 573-0 info@leuze.com • www.leuze.com...
- Page 2 1Figure part...
- Page 3 Ä Align the label sensor at an angle of approx. 15° … 20° to horizontal. Ä If possible, use the BTU 200M-D12 mounting system (part no. 50117255). A HT3CI label sensor B BTU 200M-D12 mounting system C Rod ⌀12 mm D Container Adjustment and alignment Ä...
- Page 4 Setting the label sensor A Aligning the label sensor The label sensor evaluates the signal difference between a free glass surface (specular reflection) and a surface with a label (diffuse reflection). For optimum adaptation to the conditions, the sensitivity of the label sensor can be adjusted via the operational control.
