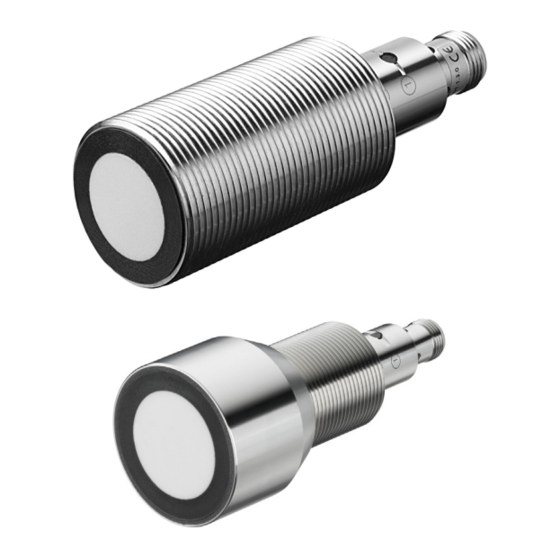

HTU430B
300 ... 3000mm
600 ... 6000mm
15 - 30 V
DC
Function largely independent of surface
properties, ideal for detection of liquids, bulk
materials, transparent media, ...
Small design at long operating range
Temperature-compensated operating range
2 independent PNP switching outputs
NEW – Both outputs can easily be taught
using a button
NEW – Stable all-metal design
NEW – Process data and configuration via
IO-Link interface
NEW – Five operating modes:
scanning, synchronous, multiplex,
activation and throughbeam operation
IP 67
IP IP 68
68
IEC 60947...
IEC 60947...
Accessories:
(available separately)
Mounting systems
Cables with M12 connector (K-D ...)
Teach adapter PA1/XTSX-M12
(Part no. 50124709)
USB IO-Link master 2.0
(Part no. 50121098)
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com
ADVANCED ultrasonic sensors with 2 switching outputs
Dimensioned drawing
A
Control button 2
B
Control button 1
C
Indicator diodes
D
Active sensor surface
Electrical connection
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
Factory setting for pin 2 multi funct: teach input
HTU430B-...X3/LT4-M12 - 03
1
Advertisement
Related Manuals for Leuze electronic HTU430B Series
Summary of Contents for Leuze electronic HTU430B Series
- Page 1 Factory setting for pin 2 multi funct: teach input Teach adapter PA1/XTSX-M12 (Part no. 50124709) USB IO-Link master 2.0 (Part no. 50121098) Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU430B-…X3/LT4-M12 - 03 info@leuze.com • www.leuze.com...
-
Page 2: Technical Data
HTU430B Technical data Diagrams HTU430B-3000…-M12 Ultrasonic specifications HTU430B-3000.X3/… HTU430B-6000.X3/... Operating range 300 … 3000mm 600 … 6000mm Typ. response behavior Adjustment range 300 … 3000mm 600 … 6000mm (plate 100x100mm) Ultrasonic frequency 120kHz 75kHz Typ. opening angle 15° Resolution of switching output Direction of beam Axial Accuracy... -
Page 3: Order Guide
The sensors listed here are preferred types; current information at www.leuze.com. Designation Part no. Operating range 300 … 3000mm HTU430B-3000.X3/LT4-M12 50124273 600 … 6000mm HTU430B-6000.X3/LT4-M12 50142209 Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU430B-…X3/LT4-M12 - 03 info@leuze.com • www.leuze.com... - Page 4 HTU430B Device functions and indicators The sensor has two buttons for adjusting output OUT1 and output OUT2. Alternatively, all adjustments can also be made via IO- Link. The multi funct teach input can be used to perform the 1-point teach and the changeover of the switching function (NO con- tact/NC contact).
- Page 5 For 2-point window-teach, the switching behavior is dependent on the selected object distances for switching points 1 and 2. See previous page! Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU430B-…X3/LT4-M12 - 03...
- Page 6 HTU430B Adjusting the switching points (teach) via the teach input The switching points of the sensor outputs OUT1/OUT2 are set to 3000mm or 6000mm on delivery. By means of a simple teach event, the two switching points can be individually taught to an arbitrary distance within the operating range.
-
Page 7: Io-Link Interface
Further information and the device-specific description of the IO-Link interface (IODD) can be found on the Internet at www.leuze.com in the Downloads area of the respective sensor. Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU430B-…X3/LT4-M12 - 03... - Page 8 HTU430B HTU430B-…X3/LT4-M12 - 03 2019/05...
