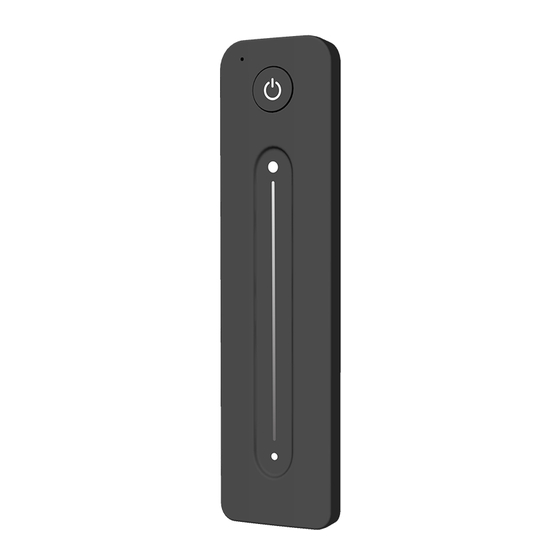

Ultrathin Touch Slide RF Remote Controller
Model No.: R11,R12,R13
Touch color slide/1-3 color/Wireless remote 30m distance/CR2032 batter y/Magnet stuck fix
1 Zone Dimming
Features
● Apply to single color, dual color or RGB LED controller.
● Ultra sensitive color adjustment touch slide.
● Each remote can match one or more receiver.
● CR2032 battery powered .
● Operate with LED indicator light.
● Magnet on the back which can be easily stuck on back holder or any metal surfaces.
Technical Parameters
Input and Output
Output signal
Working voltage
Working current
Standby current
Standby time
Remote distance
Warranty
Warranty
User Manual Ver 1.0.2
R11
R12
1 Zone CCT
RF 2.4GHz
(
)
3VDC CR2032
(
＜5mA
＜10μA
1 year
30m
5 years
R13
1 Zone RGB
Safety and EMC
EMC standard (EMC)
)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
IP rating
www.iskydance.com
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
O
Ta: -30
C ~ +55
Max.
O
(
)
T c: +85
C
IP20
O
C
Page 1
Advertisement
Related Manuals for SKYDANCE R11
Summary of Contents for SKYDANCE R11
- Page 1 Ultrathin Touch Slide RF Remote Controller Model No.: R11,R12,R13 Touch color slide/1-3 color/Wireless remote 30m distance/CR2032 batter y/Magnet stuck fix 1 Zone Dimming 1 Zone CCT 1 Zone RGB LVD RED Features ● Apply to single color, dual color or RGB LED controller.
- Page 2 R11,R12,R13 Ultrathin Touch Slide RF Remote Controller Mechanical Structures and Installations 36.00 mm 11.00 mm C 2032 Battery Note: Before the first use, Back holder with magnet please remove the protective film on the battery. To fix the remote, three options are offered for selection: Option 1: stuck the remote on any metal surfaces directly.
- Page 3 R11,R12,R13 Ultrathin Touch Slide RF Remote Controller Key function R11 1 zone dimming remote ● LED indicator On/Off 100% Bright touch slide R12 1 zone CCT remote ● LED indicator Short press to turn on or turn off light. On/Off Long press 1-6s to adjust brightness.
- Page 4 R11,R12,R13 Ultrathin Touch Slide RF Remote Controller R13 1 zone RGB remote ● LED indicator Short press to turn on or turn off light. On/Off Long press 1-6s to adjust brightness. R 100% Color touch slide G 100% B 100% Safety information 1.
