- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select radios.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A
(sold separately).
- Retains factory back-up camera.
- EIA color coded wiring for easy installation.
BUICK
2008-2015
Enclave
2006-2011
Lucerne
CADILLAC
2006-2011
DTS
2007-2014
Escalade
2007-2009
SRX
CHEVROLET
2007-2013
Avalanche*
2007-2008
Equinox
2008-2013
Express Van**
2006-2013
Impala / Impala SS
2006-2007
Monte Carlo
2007-2013
Silverado 1500-3500
Pickup*
2007-2014
Suburban*
2007-2014
Tahoe*
2009-2015
Traverse
1. *NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation radios.
2. **NOT compatible with Express and Savana vans that are powered by a diesel engine.
3. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).
4. DOES NOT support ONSTAR.

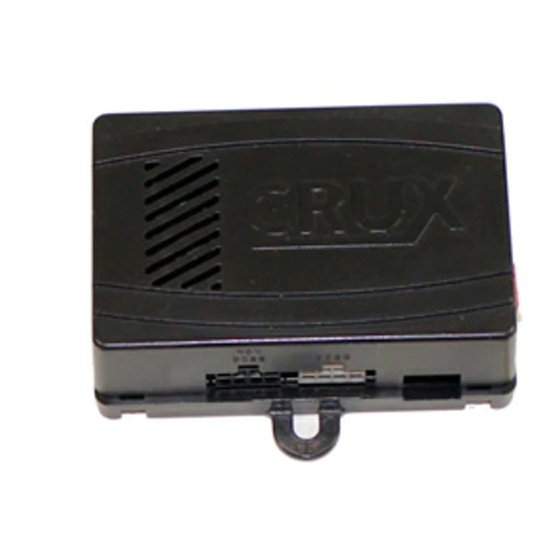

GM-49 Module
GM-49 Harness
nd
incoming call, AVRCP Track, Seek.
GMC
2007-2015
2008-2013
2007-2013
2007-2014
HUMMER
2008-2009
PONTIAC
2007-2009
SATURN
2007-2010
2008-2009
SUZUKI
2007-2008
SWC Cables
Antenna Adaptor
1 / 5
Acadia
Savana**
Sierra 1500-3500
Pickup*
Yukon*
H2
Torrent
Outlook
Vue
XL7
CRUX2543
Rev.041917
