INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains OnStar, factory Rear view camera and chime functions.
- Adds automatic speed/time sense front camera view after reverse process.
- Adds Forced front and rear view aftermarket camera inputs while in motion using the factory side mirror controls.
- Supports Bose, non-Bose and Y-91 audio systems.
- EIA color coded wiring for easy installation.
NOTES:
1. The Front and Rear fading are not retained on Y-91 Bose System.
2. Chime includes: seat belt, check engine, key in ignition, low fuel, low oil and lights on.

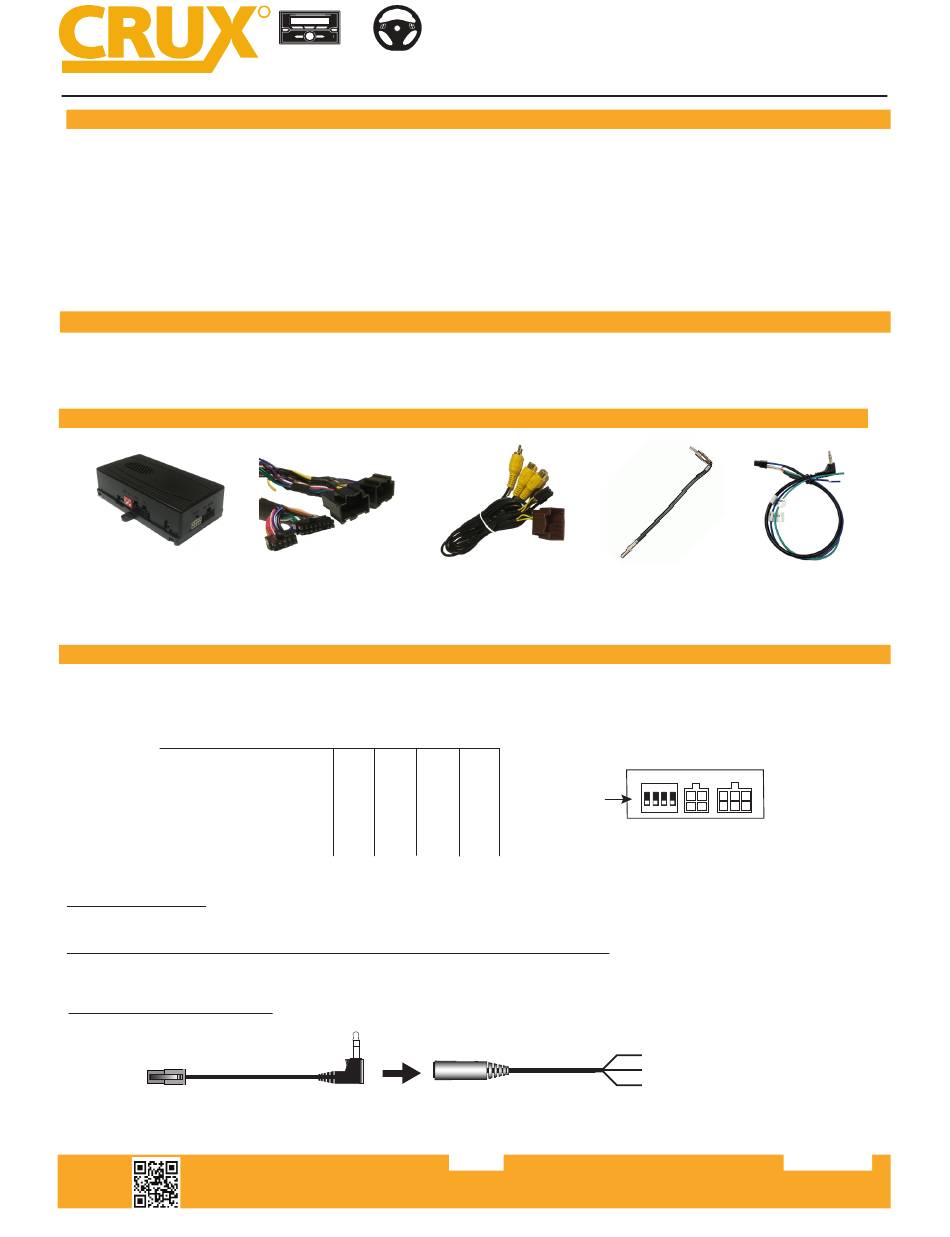

PARTS INCLUDED:
SOOGM-16V Module SOOGM-16V Harness
DIP SWITCH SETTINGS:
SETTING THE AFTERMARKET RADIO BRAND
With the key in the off position, set the DIP switches to the corresponding aftermarket radio setting.
RADIO BRAND:
Dual, Fahrenheit, Jensen, Pioneer
Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Sony, Boss
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
NOTE: Cap or Insulate the 3.5mm plug, Blue/Yellow or Green wires if not being used.
SWC 3.5MM PLUG ADAPTER
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
R
+
RADIO REPLACEMENT
SWC RETENTION
DIP:
1
2
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
ON
OFF
ON
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Radio Replacement with OnStar, SWC Retention and
Video Switcher for GM LAN 29 Bit Vehicles
Video Harness
Antenna Adaptor
3
4
ON
ON
ON
ON
OFF
OFF
AFTERMARKET
ON
OFF
RADIO SELECTOR
ON
ON
OFF
ON
OFF
OFF
(included in kit)
1 of 6
SOOGM-16V
SWC Cable
SWC DIP SWC
CAM
ON
1 2 3
4
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
rev.122518
Advertisement
Related Manuals for Crux SOOGM-16V
Summary of Contents for Crux SOOGM-16V
- Page 1 RED to SWC Key 1 WHITE to SWC Key 2 SHIELD to SWC Ground (included in kit) 1 of 6 rev.122518 Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
-
Page 2: Installation Diagram
To OEM Camera Harness SELECTING THE AUDIO SYSTEM: If the vehicle is equipped with a Bose system, the SOOGM-16V has a built-in Bose adaptor that allows the proper audio input gain from the aftermarket radio to the Bose amplifier. To use this feature, plug in the male 8-pin connector on the harness to the GRAY female 8-pin connector on the SOOGM-16V module. -
Page 3: Rear Seat Entertainment (Rse)
BACKUP CAMERA CONNECTION: The SOOGM-16V includes a video harness that allows a front and rear view camera to be plugged in and viewed on the aftermarket radio screen. The video harness includes a 16-pin brown connector that plugs into the OEM rear view camera harness to retain the use of the OEM rear view camera (if equipped). -
Page 4: Wire Color
For vehicles with a factory reverse camera installed, the factory camera module must be powered up to enable the forced view feature of the SOOGM-16V. Connect the Reverse Gear Wire (RED/WHITE) on the SOOGM-16V harness to the reverse camera power wire located on the reverse camera module or BCM. The factory reverse camera module or BCM can be found in different locations in the vehicle depending on the year and model. - Page 5 FORCED CAMERA FEATURE: The SOOGM-16V can force the aftermarket radio to show the front1 or rear video camera on select GM trucks and SUV’s with power mirror controls at any time while driving. To force the front or rear camera while driving do the following: 1.
- Page 6 Monte Carlo 2008-2010 2007-2014 Silverado 1500-3500 Pickup* 2007-2014 Suburban* SUZUKI 2007-2014 Tahoe* 2007-2008 2009-2014 Traverse 6 of 6 rev.122518 Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
