- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select radios.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A
(sold separately).
- Retains factory back-up camera.
- EIA color coded wiring for easy installation.
1. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).
2. DOES NOT support ONSTAR.

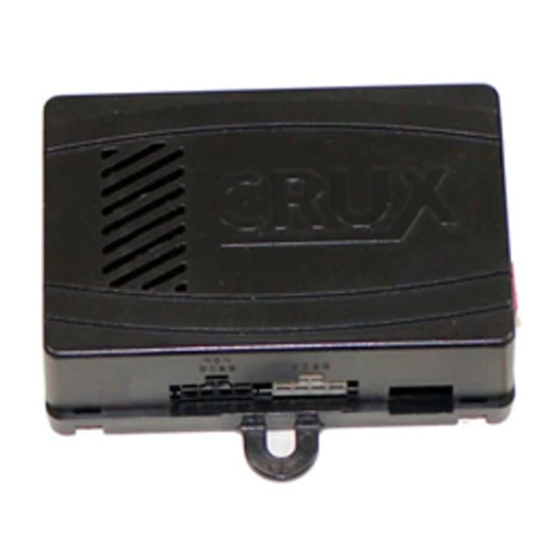

SWRGM-49 Module
SWRGM-49 Harness
nd
incoming call, AVRCP Track, Seek.
SWC Cables
Antenna Adaptor
1 / 5
CRUX2543
Rev.050918
Advertisement
Related Manuals for Crux SWRGM-49
Summary of Contents for Crux SWRGM-49
- Page 1 (sold separately). - Retains factory back-up camera. - EIA color coded wiring for easy installation. 1. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately). 2. DOES NOT support ONSTAR. SWRGM-49 Module SWRGM-49 Harness SWC Cables Antenna Adaptor CRUX2543 1 / 5 Rev.050918...
- Page 2 NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used. If the vehicle is equipped with a Bose system, the SWRGM-49 has a built-in Bose adaptor that allows the proper audio input gain from the aftermarket radio to the Bose amplifier. To use this feature, plug in the male 8-pin connector on the harness to the GRAY female 8-pin connector on the GM-49 module.
-
Page 3: Short Press
The SWRGM-49 has a potentiometer to adjust the chime volume. It is set at half way by default. To adjust the volume, simply use a suitable screw driver and turn the potentiometer clockwise to increase the volume and counter-clockwise to decrease the volume. - Page 4 SWC Button SHORT PRESS LONG PRESS CLARION VOL + Step Increment Continuous VOL + VOL - Step Decrement Continuous VOL – Arrow Up ▲ Preset Up Seek Up Arrow Down ▼ Preset End Call SRCE Source Power On/Off ►I None Mute On/Off Voice Pick Up Call...
- Page 5 The Value in the bracket [X.XX] will vary and will be used as parameter for each assigned function. Press: [Assign] > [4.07] > [Vol-], then the [4.07] will be replaced with [ Vol-] With [Assign] highlighted: Press: [3.66] > [Vol+], then the [3.66] will be replaced with [Vol+] Press: [3.37] >...
