Crux SWRTY-61S Manual

INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Retains factory features in select Toyota vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select radios.
- Supports BT-HF/A2DP/AVRCP profile on select aftermarket radio models.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRCP Track, Seek.
- Retains factory Aux Input.
- EIA color coded wiring for easy installation.
PARTS INCLUDED:
SWRTY-61S MODULE

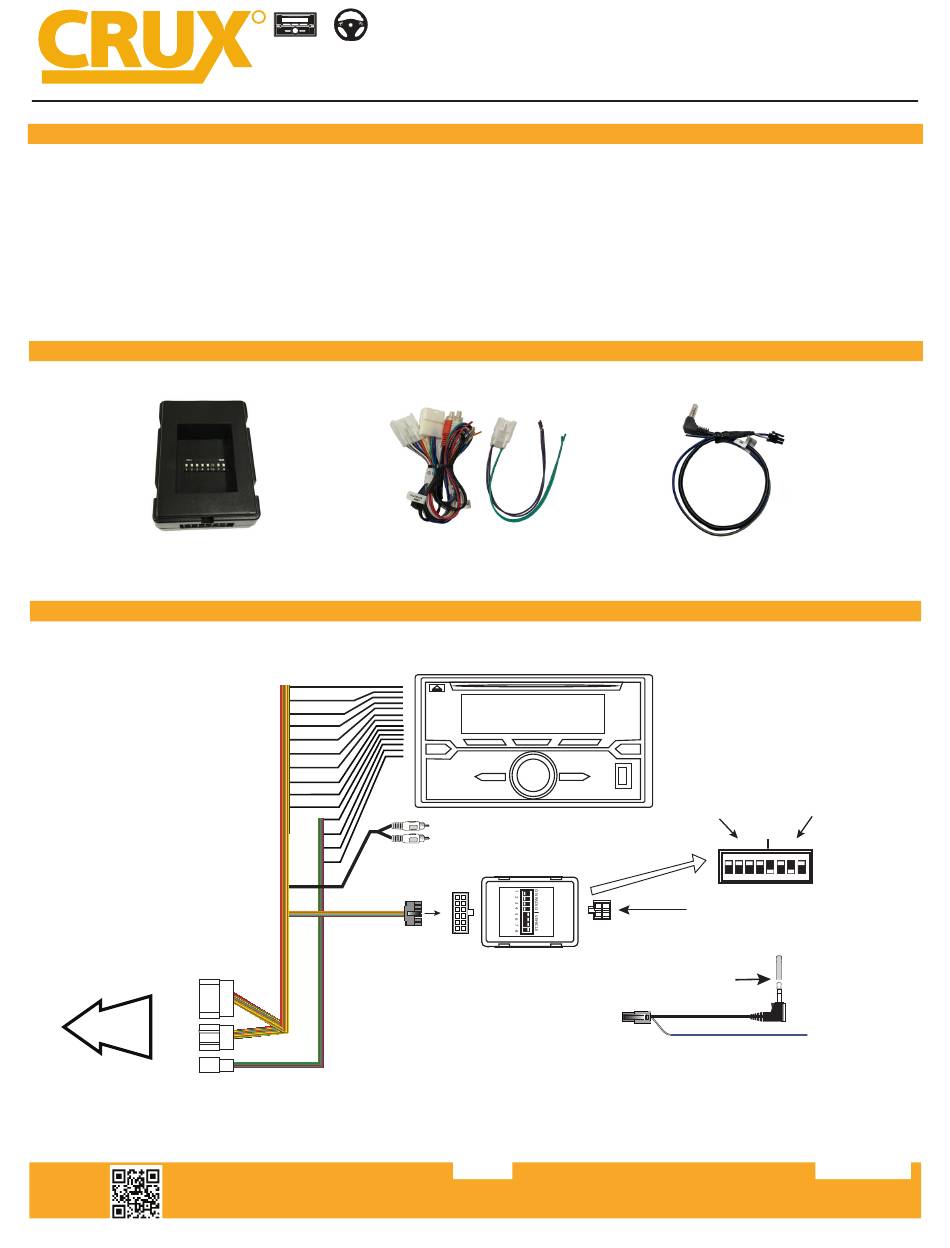

INSTALLATION DIAGRAM:
+12V Constant
+12V ACC
Ground
Illumination
Amp Turn-On
Power Antenna
Right Front (+)
Right Front (-)
Left Front (+)
Left Front (-)
Right Rear (+)
Right Rear (-)
Left Rear (+)
Left Rear (-)
Audio Input
(Retains Factory AUX Input
in Select 2007-Up Vehicles)
20 PIN
TO FACTORY
HARNESS
10 PIN
6 PIN
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
R
+
RADIO REPLACEMENT
SWC RETENTION
SWRTY-61S HARNESS
Yellow
Red
Black
Orange
Blue/ White
Blue
Gray
Gray/Black
White
White/Black
Violet
Violet/Black
Green
Green/Black
12-Pin Black
Red/White RCA
Connector
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Radio Replacement with Steering Wheel Retention for
AFTERMARKET
RADIO
SWRTY-61S SWC
MODULE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See "DIP SWITCH SETTINGS" section.
4-Pin
Connector
1 of 2
SWRTY-61S
Select Toyota Vehicles 2003 - Up
SWC CABLE
TOYOTA
AFTERMARKET
SWC SETTING
RADIO SELECTOR
(OFF ON OFF ON)
(See Chart)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
3.5MM SWC CABLE
Cap or insulate if
not being used
To aftermarket
radio SWC port
Insulate with tape
if not being used
Kenwood/JVC (BLUE / YELLOW)
rev.020320
