User's manual
V.
Controller function
Due to multiple function fulfi lled by the controller, the menu is divided into Main menu and
Fitter's menu.
V.a)

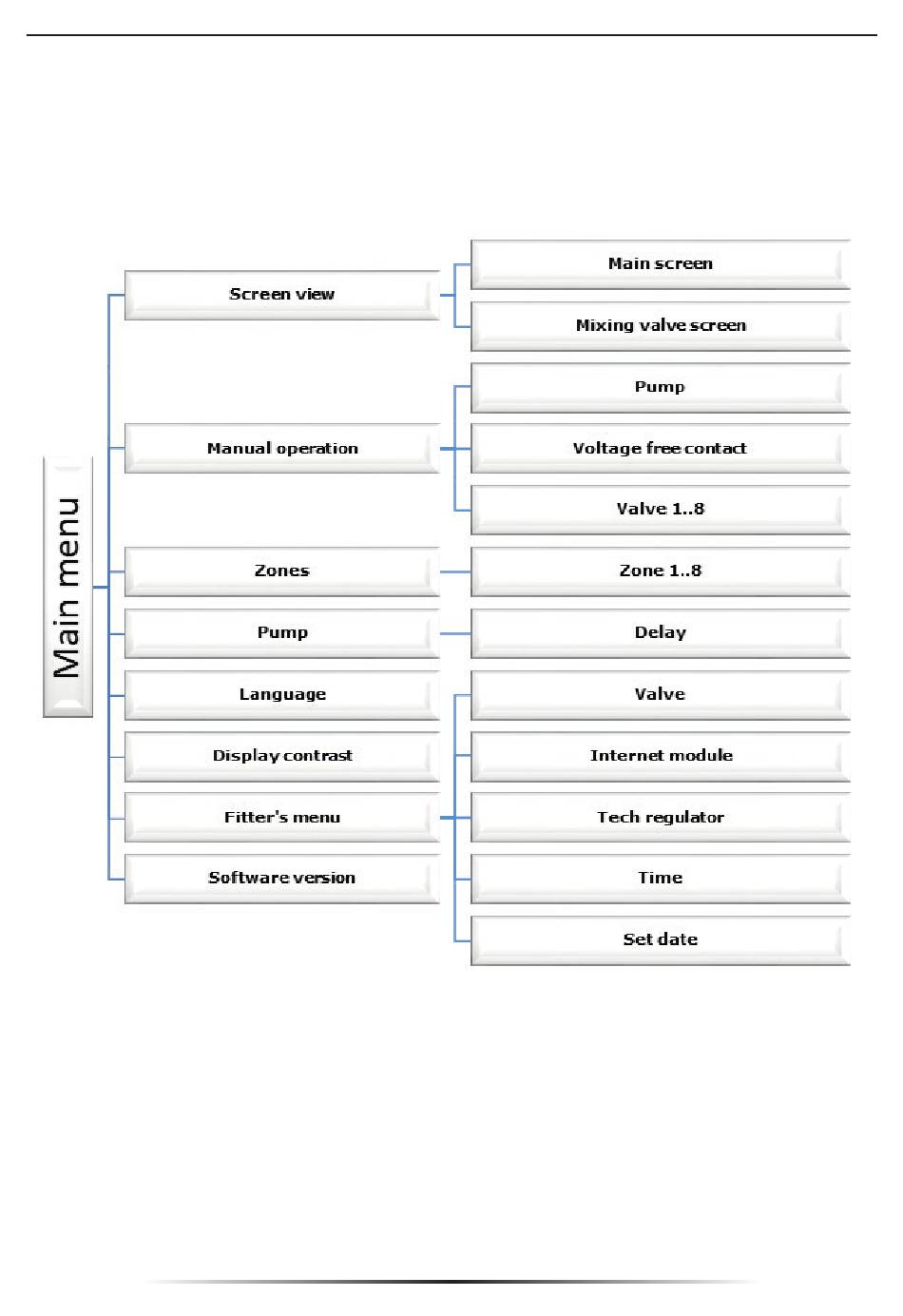

Block diagram of the main menu
V.b)
Screen view
•
In this submenu the user may adjust the main screen view:
•
Main screen – including particular zones parameters e.g. pre-set temperature, current
temperature etc.
•
Mixing valve screen – including mixing valve operation parameters.
14
