Summary of Contents for Tech Controllers EU-WiFi X

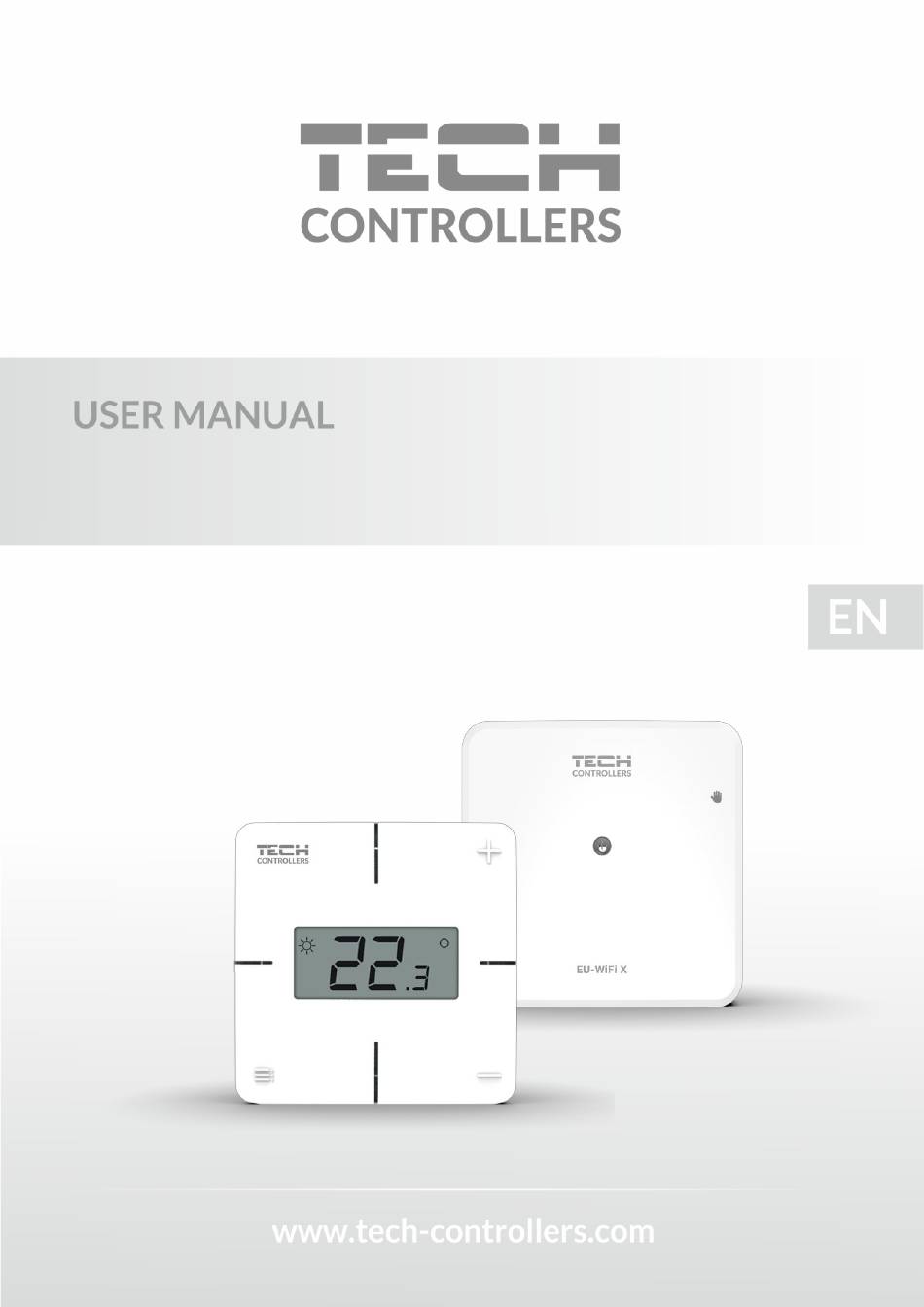

- Page 1 EU-WiFi X...
- Page 2 TABLE OF CONTENTS Safety..................................3 Device description ..............................4 III. Controller installation ..............................6 First start-up ................................7 Connecting the controller........................... 7 Internet connection configuration ........................7 Work as a contact ............................... 8 Registration of the regulator and floor sensor ....................8 Manual mode ..............................
- Page 3 SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. In order to avoid accidents and errors it should be ensured that every person using the device has familiarized themselves with the principle of operation as well as security functions of the controller.
- Page 4 II. DEVICE DESCRIPTION EU-WiFi X is a module included with a wireless controller. Enables cooperation with any wireless system controller or temperature sensor from the 8 series. The device is designed to maintain the temperature of the room and floor at a constant level.
- Page 5 1. Module registration button 2. Registration button for the controller, floor sensor 3. Heating/cooling input 4. Potential-free contact 5. Power supply...
- Page 6 III. CONTROLLER INSTALLATION WARNING • The device should be installed by a qualified person. • Risk of fatal electric shock from touching live connections. Before working on the controller switch off the power supply and prevent it from being accidentally switched on. To connect the cables, remove the controller cover.
- Page 7 IV. FIRST START-UP For the controller to work properly, please follow the steps below when starting it for the first time: 1. Connecting the controller according to the diagram 2. Internet connection configuration 3. Work as a contact 4. Registration of the regulator and floor sensor 5.
- Page 8 WORK AS A CONTACT The controller works as a contact until the regulator is registered. After registering the room regulator, it controls the contact based on data from the room sensor. When operating as a contact, 2 operating modes are available: •...
- Page 9 INSTALLATION CONTROL IN EMODUL.EU The web application at https://emodul.eu offers multiple tools for controlling your heating system. In order to take full advantage of the technology, create your own account: https://emodul.eu Registration a new account at Registration a new module...
- Page 10 Once logged in, go to the Settings tab and select Register module. Next, enter the code generated by the controller (we generate the code on the phone in the "Configuration portal" tab in the "Module registration" option). The module may be assigned a name (in the field labelled Module description).
- Page 11 The upper value is the current zone temperature whereas the bottom value is the pre-set temperature. The pre-set zone temperature depends by default on the weekly schedule settings. Constant temperature mode enables the user to set a separate pre-set temperature value which will apply in the zone regardless of the time. Editing the constant pre-set temperature By selecting constant temperature icon, it is possible to set the temperature with time limits.
- Page 12 Tap on Schedule icon to open up the schedule selection screen. Selecting a weekly schedule It is possible to set six weekly schedules: 1-local, 5-global. Temperature settings for schedules are common for heating and cooling. The selection of a specific schedule in a given mode is remembered separately. - Local schedule - weekly schedule assigned only to the zone.
- Page 13 Editing enables the user to define two programs and select the days when the programs will be active (e.g. from Monday to Friday and the weekend). The starting point for each program is the pre-set temperature value. For each program the user may define up to 3 time periods when the temperature will be different from the pre-set value.
- Page 14 3.2. ZONE 3.2.1. ROOM SENSOR • Hysteresis - Room temperature hysteresis introduces a tolerance of fluctuations for the set room temperature in the range of 0,1 ÷ 10°C. • Calibration - The room sensor is calibrated during installation or after prolonged use of the controller/sensor, if the displayed room temperature differs from the actual temperature.
- Page 15 3.3. HEATING - COOLING 3.3.1. OPERATING MODE ➢ Automatic – varies depending on the heating/cooling input - if there is no signal, it works in heating mode ➢ Heating – the zone is heated ➢ Cooling – the zone is cooled 3.4.
- Page 16 SETTINGS TAB The settings tabs allow you to edit user data and view module parameters and register a new one. Settings/Account tab WiFi X WiFi X WiFi X WiFi X Settings/Module tab...
- Page 17 VI. SOFTWARE UPDATE To update the driver and module, select the "Setup Portal" tab on your phone and select the "…. update" option or download and upload the file. This option also allows you to view the current version of the program, which is needed to contact the Tech Sterowniki service.
- Page 18 EU DECLARATION OF CONFORMITY Hereby, we declare under our sole responsibility that EU-WiFi X manufactured by TECH STEROWNIKI II Sp. z o.o., head- quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament...
