STEP 2: Switch on the power supply and check if the devices work
After all the devices have been connected, switch on the power supply.
Use Manual operation function in order to check if particular devices work properly. Use
▲ and ▼ to select the device and press MENU – the device should switch on. Follow this
procedure to check all the devices.
STEP 3: Activate the Internet module
L-7 external controller is compatible with ST-507 and WiFi RS.
WiFi RS uses WiFi wireless network whereas ST-507 needs to be connected to a router with
RJ45 network cable.
ST-507
ROUTER
L-8

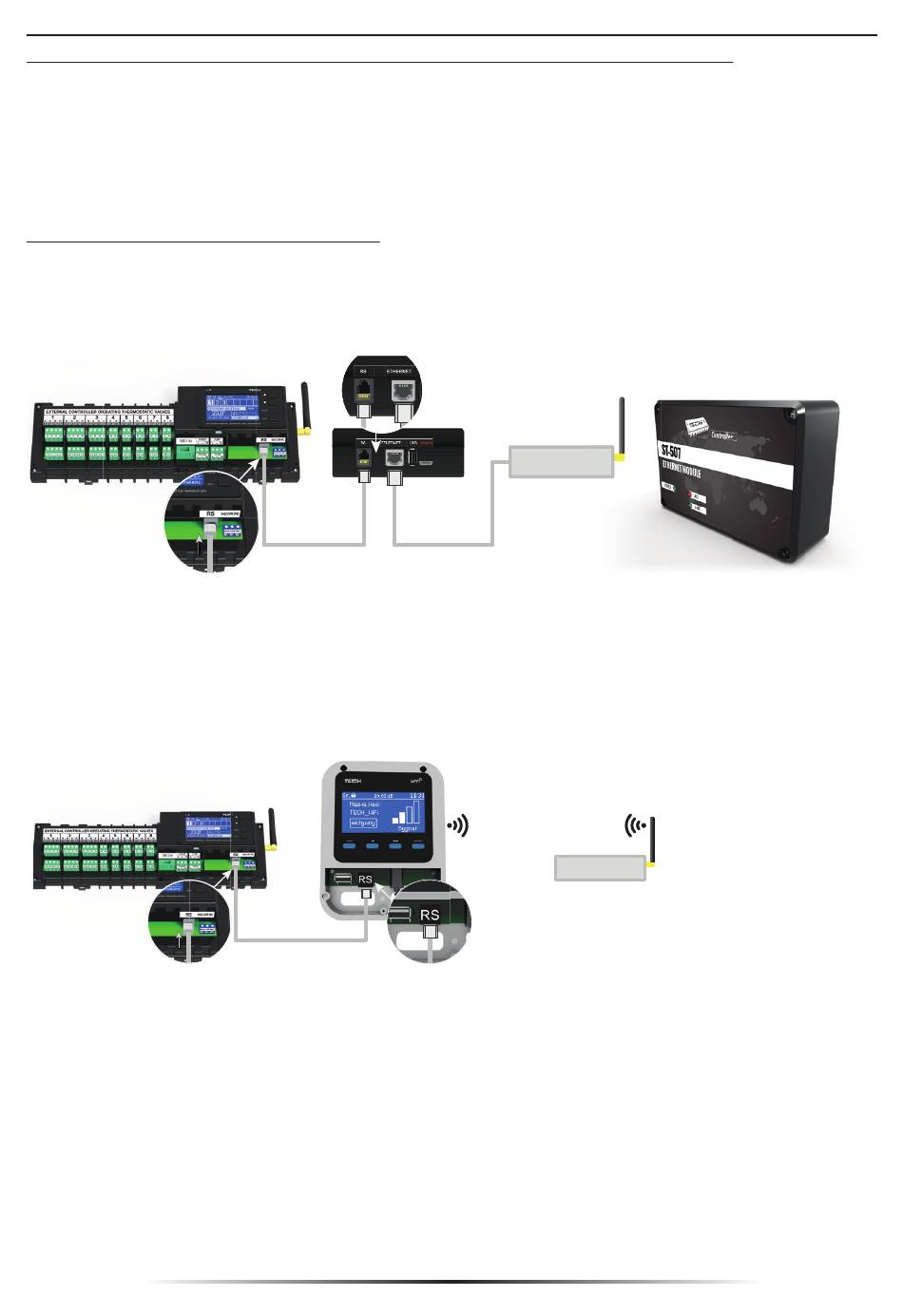

Connection diagram for ST-507 Internet module.
WiFi RS
ROUTER
L-8
Connection diagram for WiFi RS.
ST-507 Internet module or WiFi RS should be connected as illustrated in the diagrams
above. Next, activate the module: Main menu/Fitter's menu/Internet module/ON. Further
steps are described in detail in the instruction manual for the Internet module.
