Tech Controllers L-7 User Manual page 13

L-7
3
1 2
8
4
7
5
6

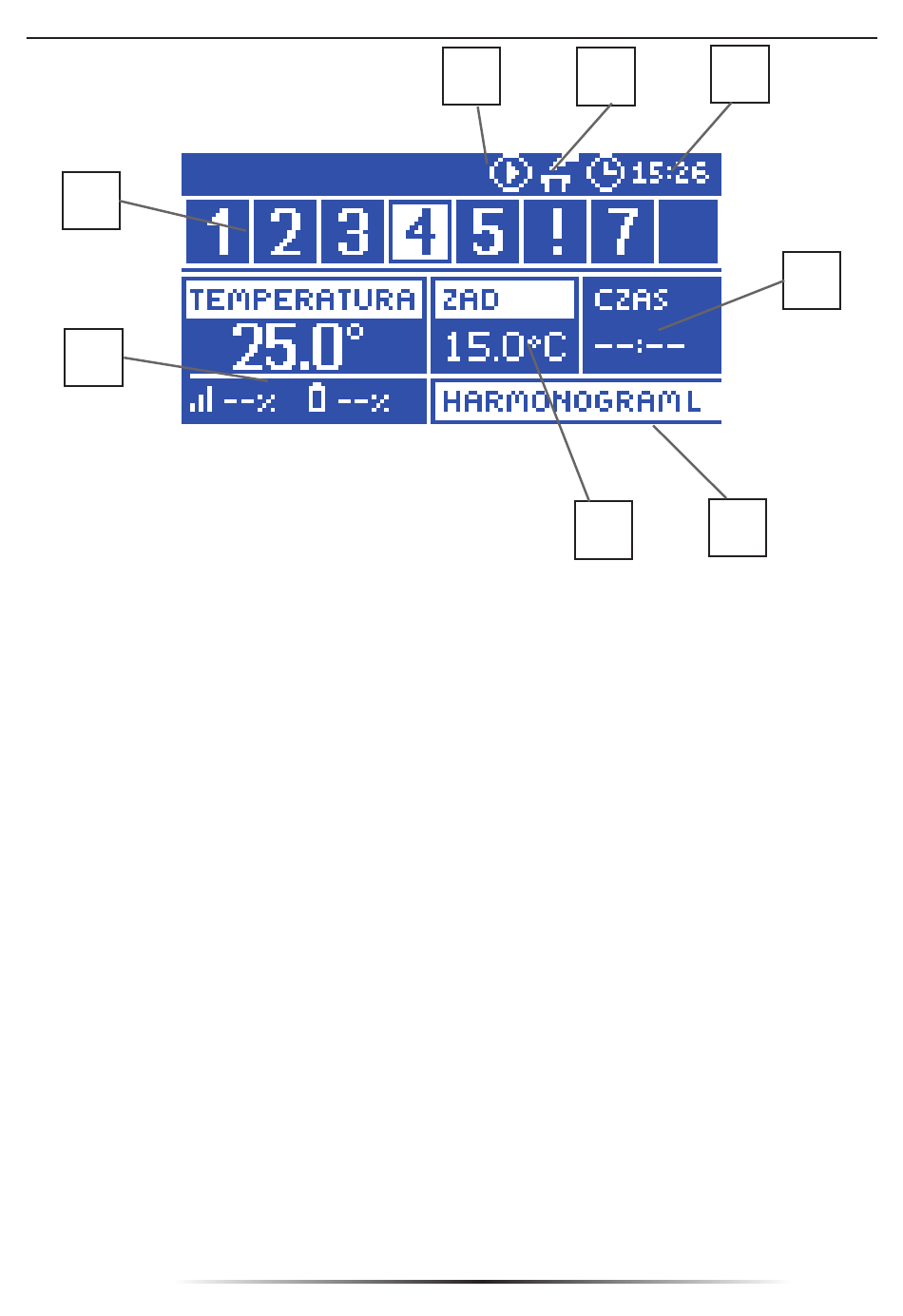

11. An icon indicating pump operation
2. An icon indicating that the additional contact is switched on
3. Current time
4. Time left until the manually set temperature in a given zone changes
5. Information about the type of current weekly schedule
6. Pre-set temperature in a given zone (backlit number in the zone bar – see: description
no. 12)
7. Current temperature of C-8-r sensor in a given zone (backlit number in the zone bar –
see: description no. 12)
8. Zone information:
The digit displayed indicates that the corresponding room sensor is connected and sends
current temperature information. If the zone temperature is too low, the digit fl ashes. In
the event of a zone alarm, an exclamation mark is displayed instead of the digit. In order
to view the operation parameters of a given zone, select its number using ▲ or ▼.
13
