CHAPTER 1. PRIOR TO USE

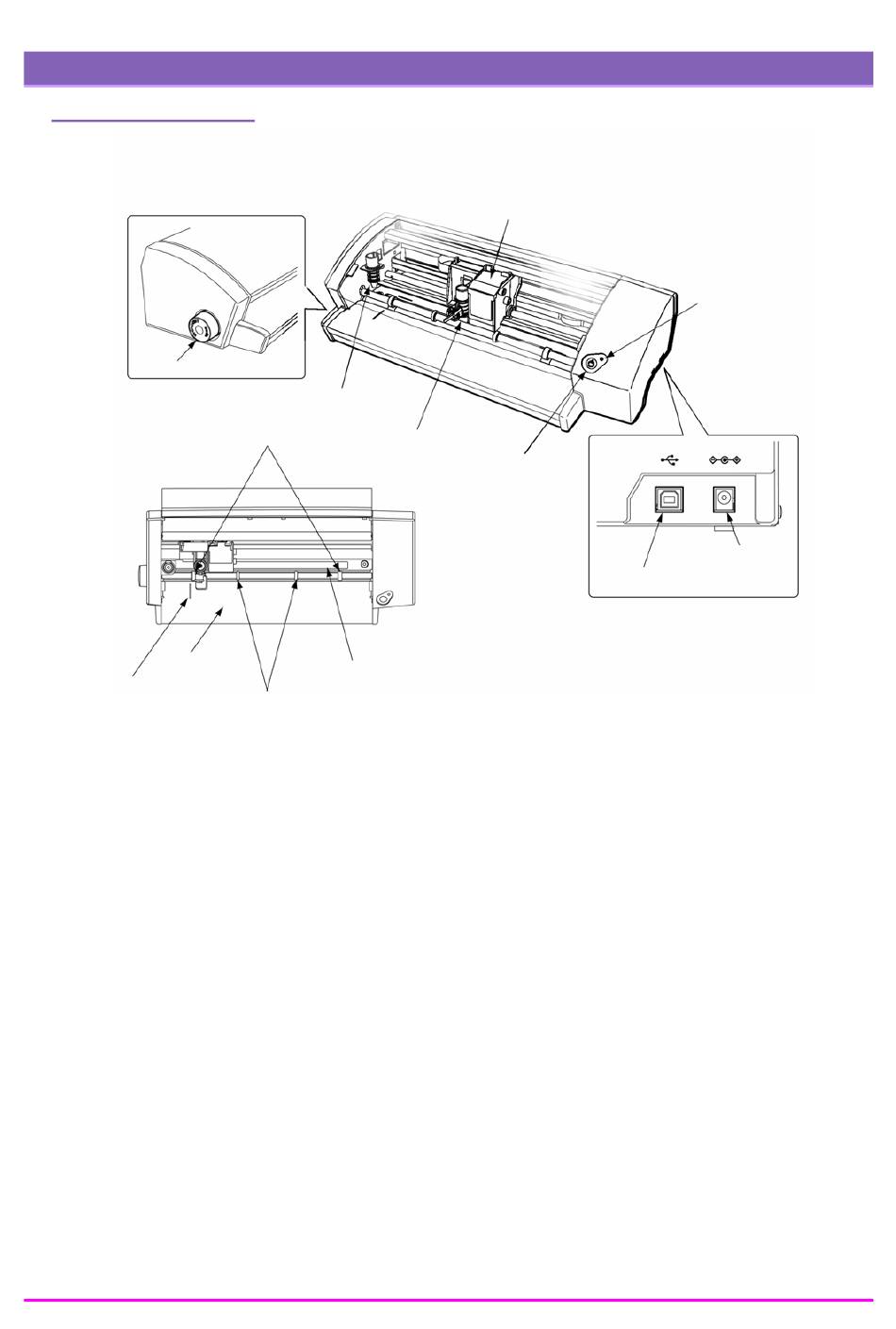

1.2 Craft ROBO Parts and Functions

Craft ROBO (CC100)

Feed knob
Work surface
Guideline
Feed knob ..........................Manually feeds media in and out
Cutting Head ......................Drives the blade holder to the left or right
Ballpoint penholder...........Used for plotting using a ballpoint pen
Blade holder.......................Used for cutting using a blade
Clamp bracket....................Holds the blade holder/penholder and drives it up or
Standby switch ..................Turns on and off the cutter
LED lamp............................The light is on when unit is ready to operate and flashes
USB interface connector...Used for connecting USB cable
AC adapter jack .................Used for connecting AC/DC power adapter cable
Pinch roller.........................White rollers that tightly holds media in place, assuring
Guideline ............................Used as a guide when media is loaded in
Work surface......................Used for media support and alignment
Media roller ........................Prevents media from warping
Cutting mat ........................A black strip that protects work surface from damage
1-2
Ballpoint pen holder
Pinch roller Blade holder and Clamp bracket
Cutting mat
Media roller
down
when data is received
accurate operation
caused by the blade
Cutting head
Standby switch
USB interface connector
LED lamp
AC adapter jack
