Blade adjustment caps and media selection

Changing the blade adjustment caps

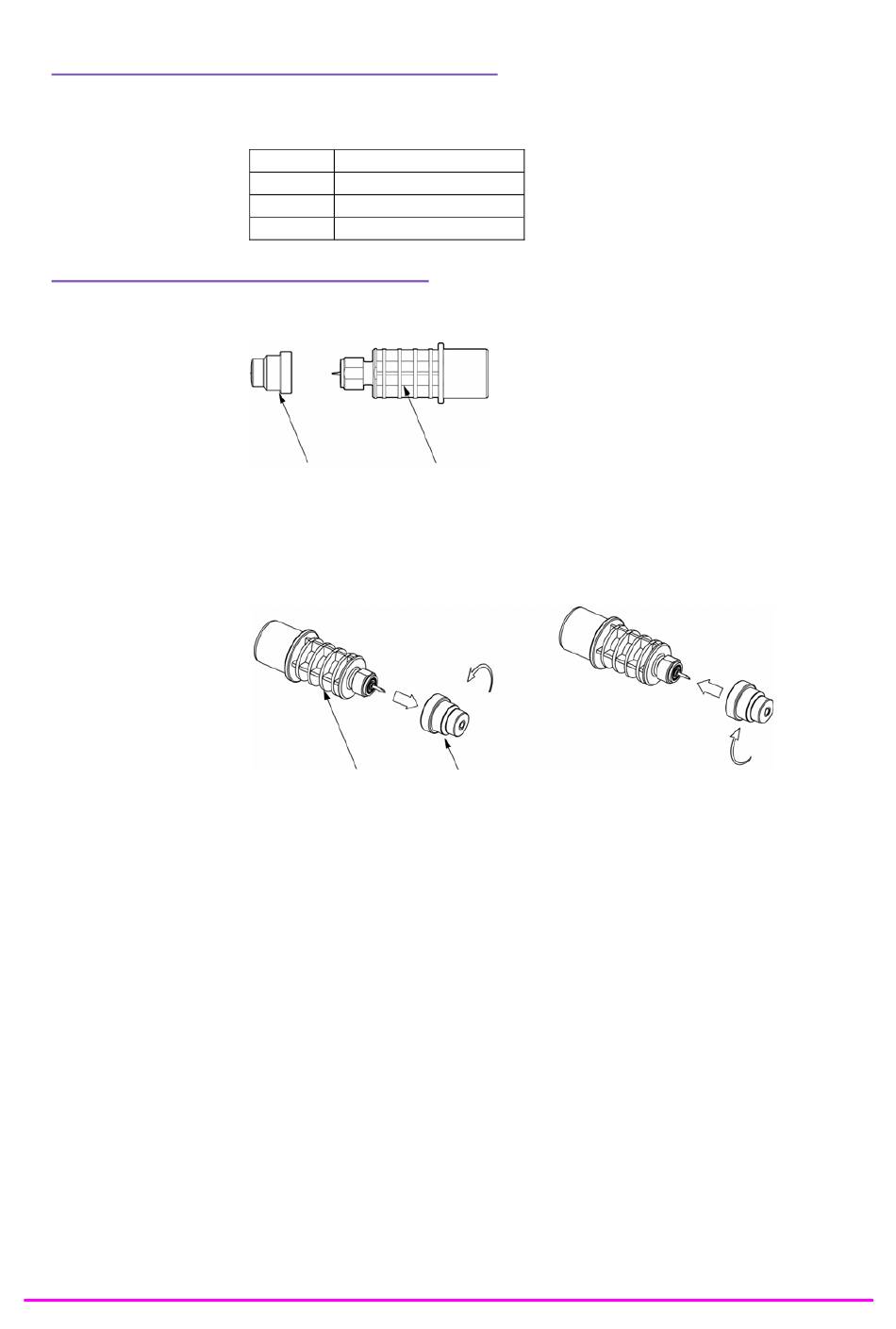

Select and set the blade adjustment cap best suited to the media in use
Selection guide for blade adjustment caps
Cap Media
Blue Thin film
Yellow Thick film, thin media
Red Thick media
The blade adjustment cap is a screw-on type.
Blade
Blade holder
adjustment cap
1. Turn it in the counterclockwise direction to remove the cap.
2. Replace with the correct blade adjustment cap.
3. Turn it in the clockwise direction to tighten the cap.
Blade holder
CHAPTER 2. CONNECTION AND PREPARATION
Loosen
Blade adjustment cap
Tighten
2-9
