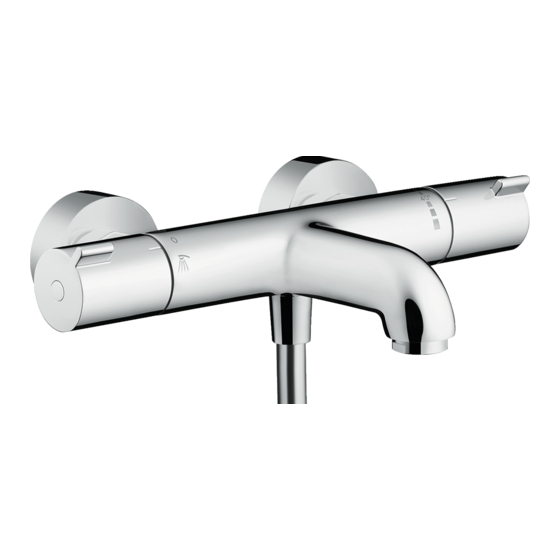

Summary of Contents for Hans Grohe Ecostat 13201007

  • Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / assembly instructions Ecostat 13201007 Ecostat 13211007...
  • Page 2 中文 ECOSTOP (参见第页 6) 安全技巧 保养 (参见第页 6) 装配时为避免挤压和切割受伤,必须戴上手套。 本产品只允许作为洗浴、卫生和洁身之用。 • 单向阀必须在符合国家或当地的法律的情况下按照DIN EN 1717定期检 不得让儿童和肢体、精神和/或意识有障碍的成人在不受监管的情况下 查(至少一年一次)。 使用淋浴系统。受酒精或毒品影响的人员不得使用淋浴系统。 • 为了保证恒温器的稳定运转,请务必定期从最热到最冷转动调温器。 冷热水管间过大的压力差必须予以平衡。 大小 (参见第页 8) 安装提示 • 安装前必须检查产品是否受到运输损害。 安装后将不认可运输损害或 流量示意图 (参见第页 8)  表面损伤。 淋浴出水  • 管道和阀门必须根据通用标准进行安装、冲洗和检查。 浴缸出水嘴出水 • 请遵守当地国家现行的安装规定。 备用零件 (参见第页 10) • 本产品并非设计来与蒸气浴连接使用! 清洗 (参见第页 9) ECOSTAT与连续流热水器的连接。 操作 (参见第页 7) • 如果要连接手持花洒,必须去掉它的水流控制器。 • If the continuous water heater causes any problems, or you have different • 要连接连续流热水器,必须把ECOSTOP锁紧环 (#95042000) 取下。 技术参数 1 MPa 工作压强:...
  • Page 3: Installation Instructions

    English Adjustment (see page 5) Safety Notes After the installation, the output temperature of the thermostat must be checked. A Gloves should be worn during installation to prevent crushing and cutting correction is necessary if the temperature measured at the output differs from the injuries. temperature set on the thermostat. The product may only be used for bathing, hygienic and body cleaning To adjust the hot water limiter. Using a hot water limiter in combination with a purposes. continuous flow water heater is not recommended. Children as well as adults with physical, mental and/or sensoric impairments ECOSTOP (see page 6) must not use this product without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this product. Maintenance (see page 6) The hot and cold supplies must be of equal pressures. • The check valves must be checked regularly according to DIN EN 1717 in Installation Instructions accordance with national or regional regulations (at least once a year). • Prior to installation, inspect the product for transport damages. After it has been • To guarantee the smooth running of the thermostat, it is necessary from time to installed, no transport or surface damage will be honoured. time to turn the thermostat from total hot to total cold. • The pipes and the fixture must be installed, flushed and tested as per the Dimensions (see page 8) applicable standards. • The plumbing codes applicable in the respective countries must be observed. Flow diagram (see page 8) • The product is not designed to be used with steam baths!  Shower outlet ...
  • Page 4 36 mm Silicone X + 36 mm max. 39 mm SW 24 mm max. 5 mm SW 30 mm (17 Nm)
  • Page 5 SW 3 mm SW 3 mm (2 Nm) SW 3 mm 例如 42° C for example 42° C SW 3 mm (2 Nm)
  • Page 6 SW 3 mm 例如 10 l/min for example 10 l/min SW 3 mm (2 Nm) SW 30 mm SW 10 mm 红色 / red SW 30 mm (17 Nm) SW 10 mm (20 Nm)
  • Page 7 开 / open 开 / open >40°C 关 / close 冷 / cold 热 / hot 开 / open 开 / open >40°C 关 / close 冷 / cold 热 / hot...
  • Page 8 Ecostat Ecostat 13201007 13211007 15 - 2 3 G 1 / 2 10 0 Ecostat Ecostat 13211007 13201007 0,60 0,60 0,55 0,55 0,50 0,50 0,45 0,45 0,40 0,40 0,35 0,35 0,30 0,30 0,25 0,25 0,20 0,20 0,15 0,15 0,10 0,10 0,05 0,05 0,00...
  • Page 9: Warranty

    English 中文 汉斯格雅产品的清洁建议 Cleaning Recommendation for Hansgrohe Products Today, modern sanitary and kitchen tapware, showers, accessories, washstands, 现代的卫浴龙头、厨房龙头、花洒、配件、盥洗台、浴盆和加热器采用的 tubs and radiators consist of very different materials to comply with the needs of the 制造材料非常迥异,以适应产品外形设计和使用功能的市场需求。 market with regard to design and functionality. 为了避免产品损坏和由此引发的投诉及争议,必须在使用和清洁产品时遵 To avoid damage and reclamations, it is necessary to consider certain criteria when 循有关规程。 cleaning. 在保养汉斯格雅产品时,原则上必须注意: With regard to caring for the Hansgrohe products, the following must in principle be heeded: • 只能使用那些有明确注明是适用于本产品的清洁剂。 • Only use cleaning material which is explicitly provided for this type of • 不允许使用含有盐酸、蚁酸、氯漂或醋酸的清洁剂,因为这些清洁剂会 application. 给产品表面造成严重的损伤。 • Never use cleaning materials, which contain hydrochloric acid, formic acid, • 含磷酸的清洁剂必须在特定条件下使用。 chlorine pale lye or acetic acid, as they cause considerable damage.
  • Page 10 Ecostat 13201007 92836000 94140007 SW 24 mm 95041000 96922000 95433000 98137000 (17x1,5) (M4x14) 94282000 96737000 SW 3 mm 96157000 SW 30 mm 93136000 96467000 94285000 98674000 98129000 (16x2) 92511000 (M4x14) (M24x1 - 25 l/min) 96509000 SW 3 mm SW 22 mm 95433000 92836000 Ecostat 13211007 92836000 94140007 SW 24 mm 95041000 96922000 95433000 98137000 (17x1,5) 94282000 (M4x14) 96737000...
  • Page 12 Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...

This manual is also suitable for:

Ecostat 13211007
