Installation Instructions / Warranty
Starck
10933XX1
Phoenix
17944XX1
Terrano
37930XX1
Citterio
39925XX1
Hansgrohe Faucets & More www.NeedPlumbingSupplies.com 800-728-8890

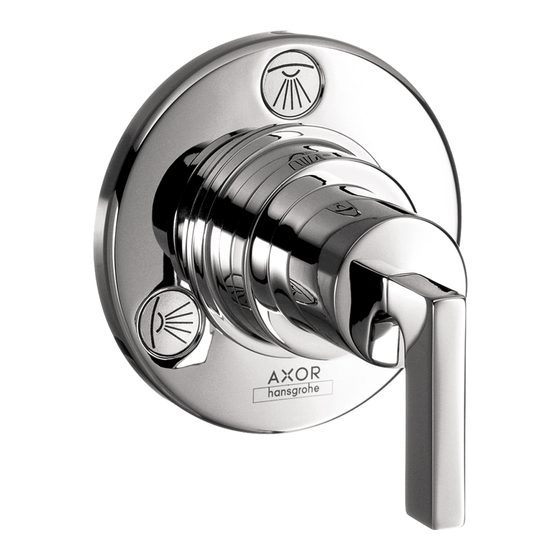

QUATTRO FOUR WAY DIVERTER
Trim sets
Montreux
16830XX1
Phoenix
17945XX1
Terrano
37933XX1
Mondial/
Metris/
Elegance/
Sportive
15935XX1
Carlton
17933XX1
Steel
35933801
Uno
38933XX1
Rough-in Ref.
No.: 13932181
Carlton
17935XX1
Allegroh
36933XX1
Citterio
39920XX1
Advertisement
Table of Contents
Related Manuals for Hans Grohe Axor Pharo Metris 15935 1 Series
Summary of Contents for Hans Grohe Axor Pharo Metris 15935 1 Series
- Page 1 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Installation Instructions / Warranty QUATTRO FOUR WAY DIVERTER Trim sets Starck Montreux Carlton Carlton 10933XX1 16830XX1 17933XX1 17935XX1 Allegroh Phoenix Phoenix Steel 17944XX1 17945XX1 35933801 36933XX1 Terrano Terrano Citterio 37930XX1 37933XX1 38933XX1 39920XX1 Rough-in Ref. No.: 13932181 Mondial/ Citterio...
- Page 2 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Starck Montreux Carlton 10933XX1 16830XX1 17933XX1 Carlton Phoenix Phoenix 17935XX1 17944XX1 17945XX1 Steel Allegroh Terrano 35933801 36933XX1 37930XX1 Terrano Uno Novo Citterio 37933XX1 38933XX1 39920XX1 Citterio Mondial/ Metris/ 39925XX1 Elegance/ Sportive 15935XX1 Hansgrohe Faucets & More www.NeedPlumbingSupplies.com 800-728-8890...
- Page 3 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Sleeve and escutcheon assembly 1. Remove the cover 2. Seal around the rough-in with waterproof bathroom sealant 3. Push the guide ring into the body of the rough- in, only necessary for Starck10933XX1, Montreux 16830XX1, Phoenix 17944XX1/ 17945XX1, Terrano 37930XX1/37933XX1, Uno 38933XX1 and Citterio 39920XX1 / 39925XX1. 4. Install the trim sleeve and the escutcheon.
- Page 4 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Handle assembly Starck 10933XX1 Montreux 16830XX1 Terrano 37930XX1 / 37933XX1 1. Push the handle onto the shaft. 2. Fix the screw. 3. Cover the hole by the plastic cap. Carlton 17933XX1 / 17935XX1 Phoenix 17944XX1 / 17945XX1 1. Push the handle onto the shaft. 2. Fix the screw. 3. only Phoenix cross handle: Cover the hole by the plastic cap. Steel 35933801 Allegroh 36933XX1 Uno 38933XX1 Mondial / Metris / Elegance / Sportive 15935XX1 1. Lock the screw by hand only three turns. 2. Snap on the handle. 3. Fix the screw. 4. Cover the hole by the plastic cap. Hansgrohe Faucets & More www.NeedPlumbingSupplies.com 800-728-8890...
- Page 5 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Citterio 39920XX1 / 39925XX1 1. Install the handle fixation and lock the screw. 2. Snap on the handle. 3. Fix the hollow set screw with a hex wrench 2 Hansgrohe Faucets & More www.NeedPlumbingSupplies.com 800-728-8890...
-
Page 6: Spare Parts
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Spare parts escutcheon Montreux 98669XX1 escutcheon Starck/Carlton/Phoenix/Steel/Allegroh/Terrano/Citterio/Uno/ Mondial/Metris/Elegance/Sportive 13936XX0 handle Starck 10993XX1 2.1 screw-cover Starck 96540XX1 sleeve Starck/Carlton/Phoenix/Steel/Allegroh/Terrano/Citterio/Uno/ Mondial/Metris/Elegance/Sportive 96242XXX sleeve Steel 96242XXX cross handle Carlton 17993XX1 lever handle Carlton 17298XX1 handle Steel 35993801 6.1 screw-cover Steel/Allegroh/Uno/Mondial/Metris/ Elegance/Sportive/Phoenix cross handle 96541001 handle... - Page 7 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 15.1 Hansgrohe Faucets & More www.NeedPlumbingSupplies.com 800-728-8890...
-
Page 8: Cleaning Procedures
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by im- proper treatment is not covered under the Hansgrohe warranty. Cleaning Materials for Faucets and Showers · To remove lime scale, use only products made specifically for that purpose. Always follow the manufacturer’s instructions when using. · Do not use cleaners that contain hydrochloric, formic, acetic, or phosphoric acids, as these will cause considerable damage to finishes and to plastic components. · Never mix cleaning materials. · Never use cleaners containing abrasives. Do not use abrasive cleaning cloths, pads, or sponges. Cleaning Procedures · Clean your faucets and shower products as and when required. Regular cleaning will prevent scale buildup and water spotting. · Follow the label instructions. Do not allow any cleaner to remain on the product for longer than necessary. · When using spray cleaners, spray first onto a sponge or cloth – do not spray directly onto the product. -
Page 9: Limited Lifetime Consumer Warranty
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. („Hansgrohe“). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original consumer purchaser only. WHAT IS COVERED BY THE WARRANTY This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of the product which proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be timely made, Hansgrohe may elect to refund the purchase price in exchange for the return of the product. LENGTH OF WARRANTY Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences. If you are a consumer who purchased the product for use primarily for personal, family, or household purposes, this warranty extends for as long as you own the product and the home in which the product is installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Interaktiv and Retroaktiv products, and (ii) for 5 years, with respect to AXOR, ShowerPower and Pharo products. -
Page 10: To Obtain Warranty Service
Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 TO OBTAIN WARRANTY SERVICE Contact your Hansgrohe retailer, or write to Technical Service at: Hansgrohe Inc. 1492 Bluegrass Lakes Parkway Alpharetta GA 30004 Or, call Hansgrohe toll-free at (800) 334-0455. In requesting warranty service, you will need to provide 1. The sales receipt or other evidence of the date and place of purchase. 2. A description of the problem. 3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc. 1492 Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, At- tention: Technical Service, if required by Hansgrohe. When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid. EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PUR- CHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. - Page 11 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Hansgrohe Faucets & More www.NeedPlumbingSupplies.com 800-728-8890...
- Page 12 Hansgrohe Internet Dealer www.NeedPlumbingSupplies.com 800-728-8890 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770 360-9880 • Fax 770 360 9887 www.hansgrohe-USA.com Hansgrohe Faucets & More www.NeedPlumbingSupplies.com 800-728-8890...
