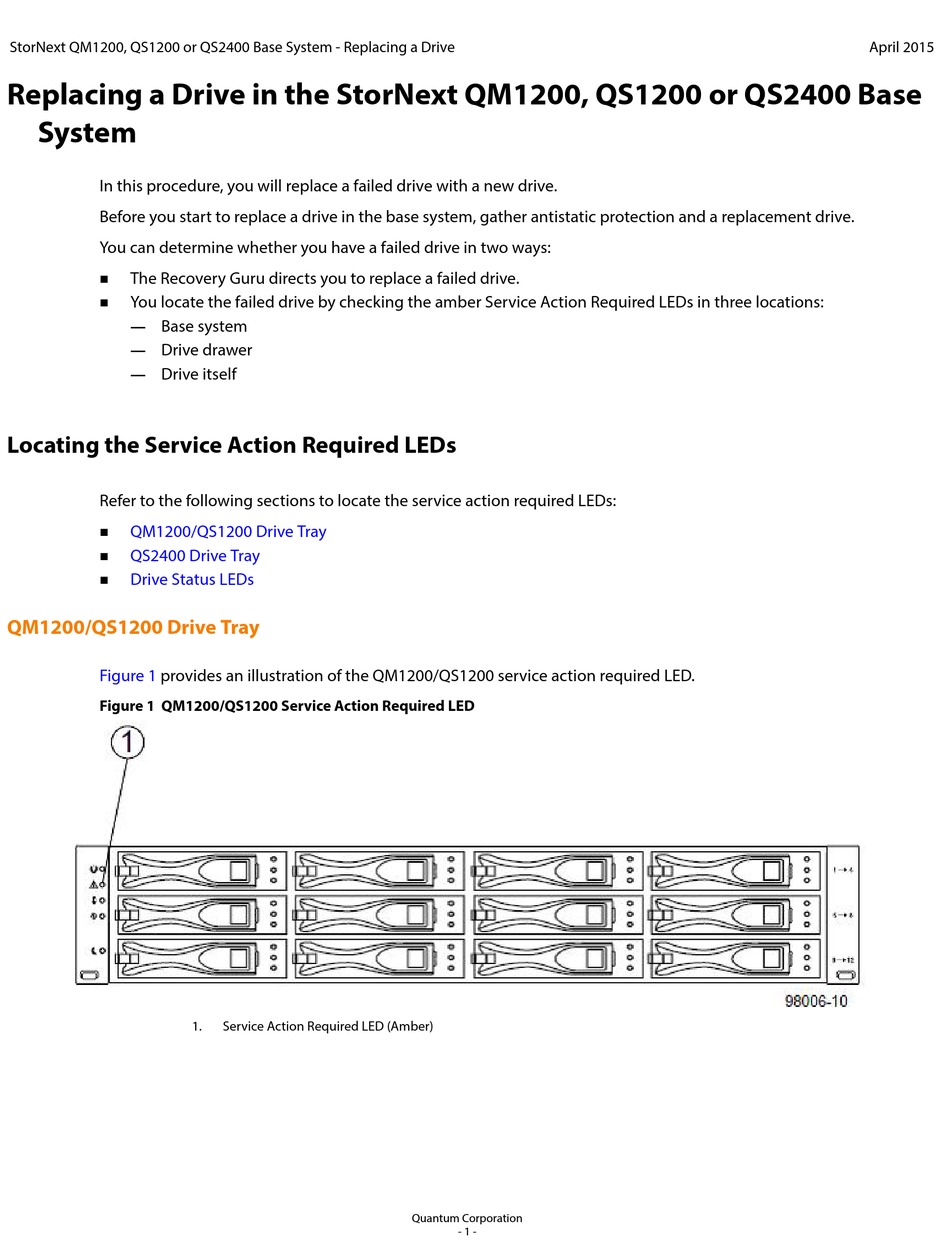

StorNext QM1200, QS1200 or QS2400 Base System - Replacing a Drive
Replacing a Drive in the StorNext QM1200, QS1200 or QS2400 Base
System
In this procedure, you will replace a failed drive with a new drive.
Before you start to replace a drive in the base system, gather antistatic protection and a replacement drive.
You can determine whether you have a failed drive in two ways:
The Recovery Guru directs you to replace a failed drive.

You locate the failed drive by checking the amber Service Action Required LEDs in three locations:

Base system
—
Drive drawer
—
Drive itself
—
Locating the Service Action Required LEDs
Refer to the following sections to locate the service action required LEDs:
QM1200/QS1200 Drive Tray

QS2400 Drive Tray

Drive Status LEDs

QM1200/QS1200 Drive Tray
Figure 1 provides an illustration of the QM1200/QS1200 service action required LED.
Figure 1 QM1200/QS1200 Service Action Required LED
1. Service Action Required LED (Amber)
