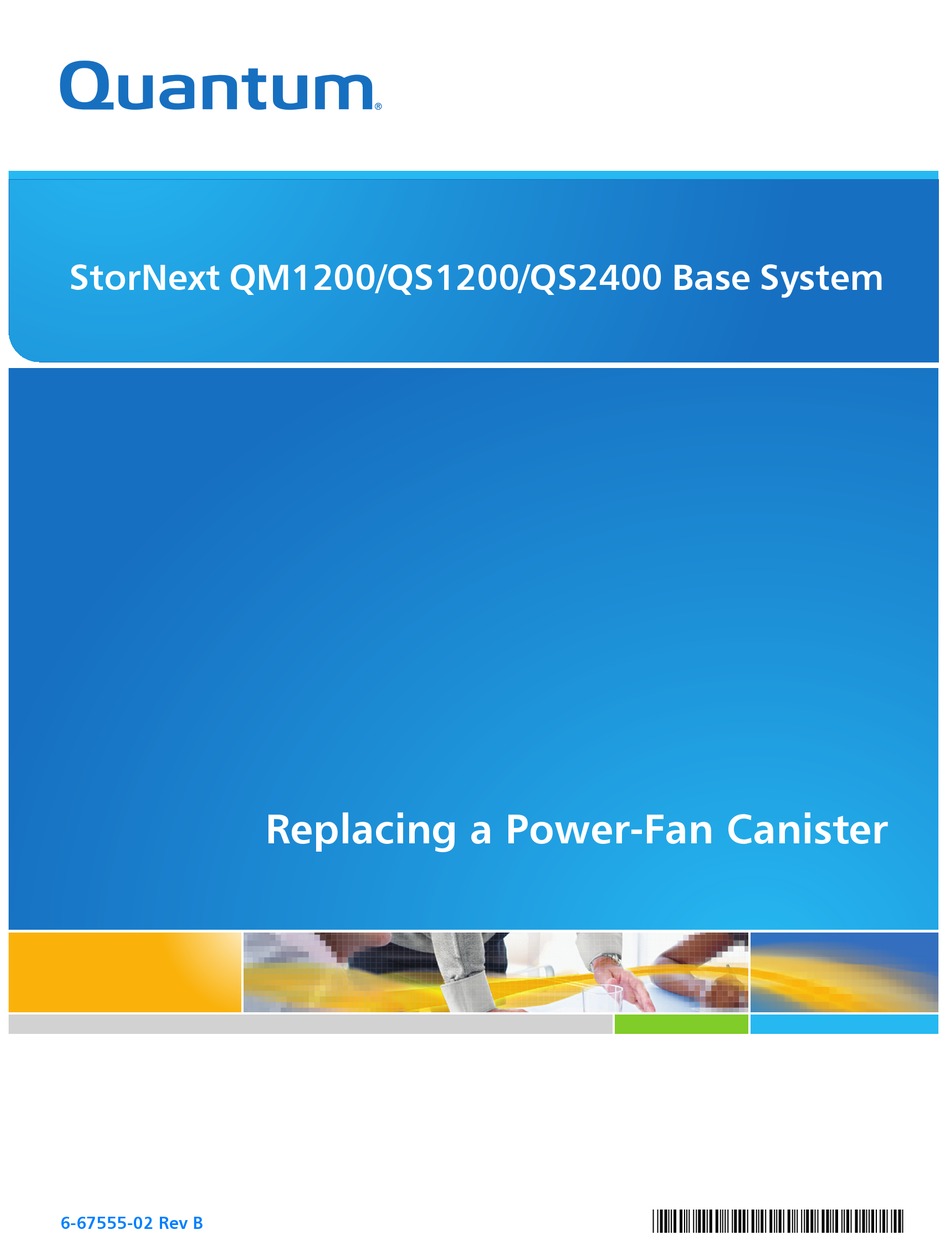

- Page 1 StorNext QM1200/QS1200/QS2400 Base System Replacing a Power-Fan Canister *6-67555-02 B* 6-67555-02 Rev B...
- Page 2 Quantum Corporation is prohibited by law and constitutes a punishable violation of the law. TRADEMARK STATEMENT Quantum, the Quantum Logo, Backup. Recovery. Archive. It's What We Do., Be Certain, Be Quantum Certain, DLT, the DLT Logo, DLTSage, DLTtape, the DLTtape Logo, DXi, DXi Accent, Dynamic Powerdown, FastSense, FlexLink, GoProtect, GoVault, iLayer, Lattus, MediaShield, Optyon, Pocket-sized., Well-armored., Preserving the World's Most Important Data.
- Page 3 Replacing a Power-Fan Canister in the StorNext QM1200/QS1200/QS2400 Base System Before you start to replace the power-fan canister in the StorNext QM1200/QS1200/QS2400 Base System, gather antistatic protection and a replacement power-fan canister. ATTENTION Possible equipment damage – If you perform this procedure with the power turned on, you must complete it within three minutes to prevent the possibility of overheating the equipment.
- Page 4 StorNext QM1200/QS1200/QS2400 Base System - Replacing a Power-Fan Canister April 2015 Figure 2 Power-Fan Canister Service Action LEDs Standby Power-Fan LED (Green) Power-Fan DC Power LED (Green) Power-Fan Service Action Allowed LED (Blue) Power-Fan Service Action Required LED (Amber) Power-Fan AC Power LED (Green)
- Page 5 StorNext QM1200/QS1200/QS2400 Base System - Replacing a Power-Fan Canister April 2015 Unpack the new power-fan canister. Set the new power-fan canister on a flat, static-free surface near the base system. Save all packing materials in case you need to return the power-fan canister.
- Page 6 StorNext QM1200/QS1200/QS2400 Base System - Replacing a Power-Fan Canister April 2015 Installing the Power-Fan Canister Slide the replacement power-fan canister all the way into the tray. Rotate the power-fan canister latches towards the center to lock the power-fan canister into place.
