- Page 1 DCT-7 Virtual 5.1 Surround Audio Processor Operation Manual DCT-7...
-
Page 2: Revision History
Revision History Version No Date Summary of Change 20090408 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to Audio Processor and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ... - Page 3 Table of Contents Introduction…………………………………………………..………. Application…………………………………………………....…. Contents………………………………………………......… System Require…………………………………….…………..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. Front Panel ................Rear Panel …………………………………………..….….… Side Panel …………………………………………..….….… Connection and Installation……………………………..……..… Specifications……………………………………………...………..
- Page 4 1. Introduction The Audio Processor is a comprehensive application for your entertainment usage. It allows stereo sound to imitate 5.1CH sound and adjust different sound volume into a balance form to make the listening more enjoyable. With only a pair of L/R input and a pair of L/R output users can set up the surrounding very easily and play the sound directly.
- Page 5 5. Features Supports stereo 2 channels input and converts a surround audio signal (5.1 channels) output through L/R jack. Support AST (Adaptive Surround Technology) technology to coverts 2 channels audio signal to Virtual 5.1 channels surround sound audio. Support DVX (Virtualizer X) technology for virtual 5.1 channels surround ...
-
Page 6: Operation Controls And Functions

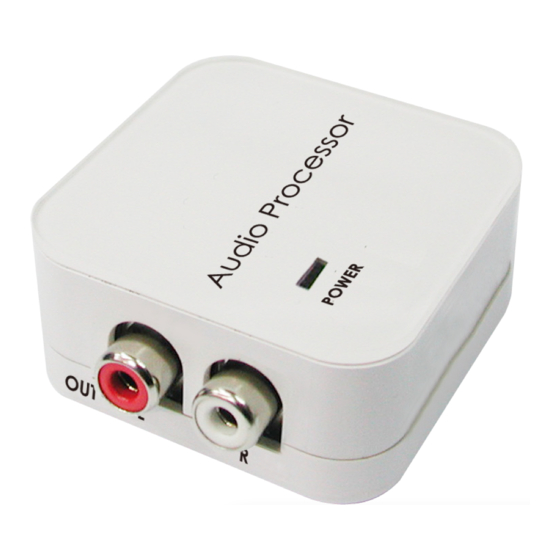

6. Operation Controls and Functions 6.1 Front Panel ① L/R input: Connect L/R stereo analog audio input port to the L/R source equipment, such as DVD player or PS3. 6.2 Rear Panel ① L/R output: Connect L/R stereo analog audio output to the display audio input of TV. -
Page 7: Connection And Installation
7. Connection and Installation LCD TV 8. Specifications Input ports L/R stereo Input Impedance 6.8K Output ports L/R surround sound Output Impedance Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 42(W) x 40.5(D) x 22(H) Weight(g) Chassis Material Plastic Silk Skin Color White... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 2008.07.08 MPM-DCT7...
