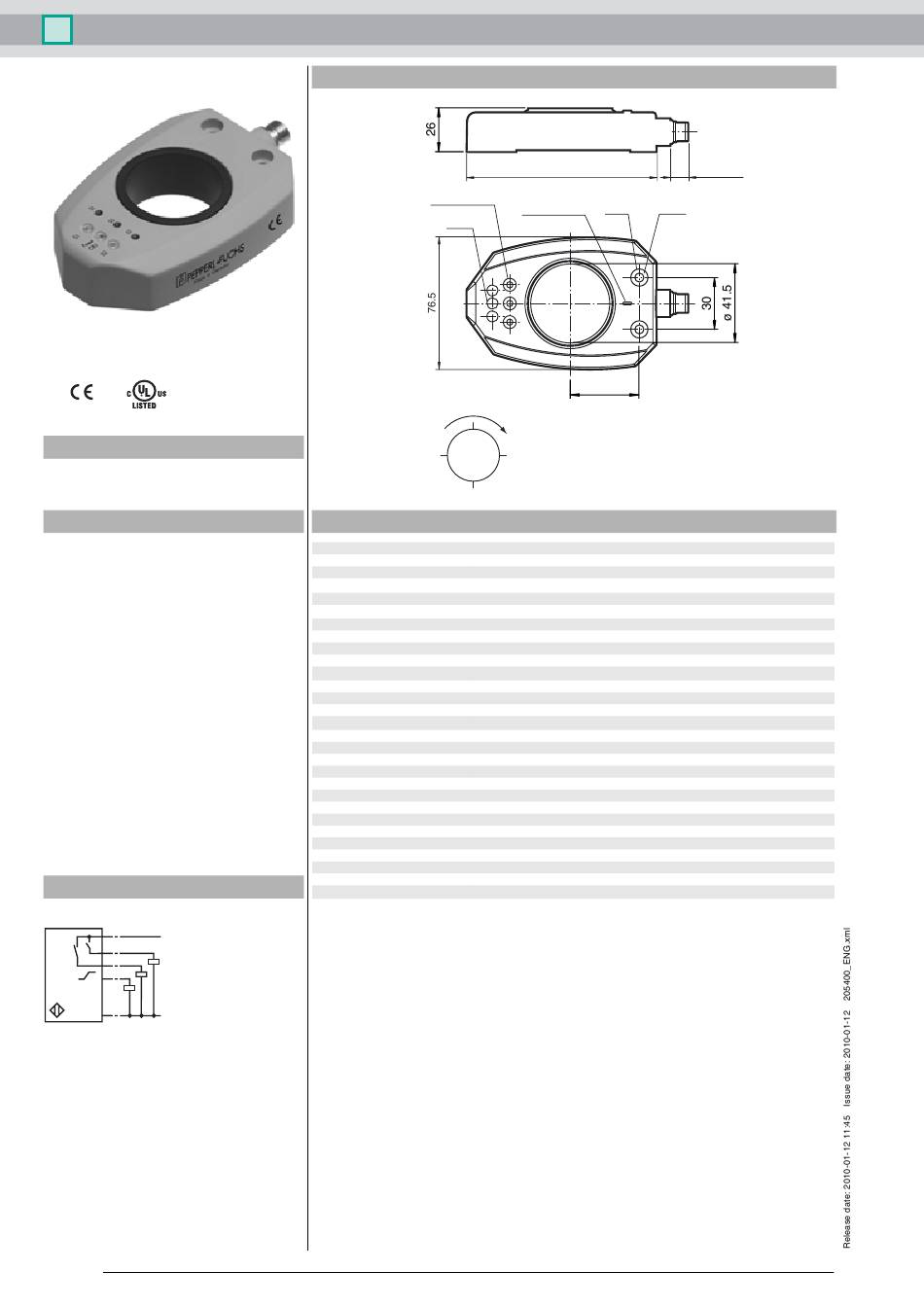

Pepperl+Fuchs PMI360D-F130-IE8-V15-Y205400 Quick Start Manual

Ind. angular measuring system
Order Code
PMI360D-F130-IE8-V15-
Y205400

Features

• Measuring range 0 ... 360°
• Analogue output 4 mA ... 20 mA
• Option of parameterizing signaling
zone, position and width

Electrical Connection

I 1/BN
L+
4/BK
2/WH
5/GY
4-20mA
3/BU
L-
Subject to reasonable modifications due to technical advances.
1
Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com

Dimensions

Push buttons
LEDs
Direction of rotation
270°
180°
90°

Technical Data

General specifications
Installation not embeddable
Measuring range 360°
Rotational speed ≤ 100 min
Nominal ratings
Operating voltage U 18 ... 30 V
B
Reverse polarity protection protected against reverse polarity
Repeat accuracy 0.5°
Resolution 0.4°
Temperature drift 1.5° (-25 °C ... 70 °C)
≤ 45 mA
No-load supply current I
0
Operating voltage display LED green
Switching output
Output type 2 switch outputs pnp, NO , protected against reverse polarity , short-circuit proof
≤ 100 mA
Operating current I
L
≤ 3 V
Voltage drop
Short-circuit protection pulsing
Analogue output
Output type 1 current output: 4 ... 20 mA
≤ 1.2 °
Linearity error
≤ 400 Ω
Load resistor
Ambient conditions
Ambient temperature -25 ... 70 °C (248 ... 343 K)
Mechanical specifications
Connection type connector M12 x 1, 5-pin
Housing material PBT
≤ 27.5 mm Steel
Shaft diameter
Protection degree IP67
Mass 180 g
PMI360D-F130-IE8-V15-Y205400
110
ø ø
10 5.2
Zero position
40
+
360°/0°
-1
Copyright Pepperl+Fuchs, Printed in Germany
10.3 ± 0.3
