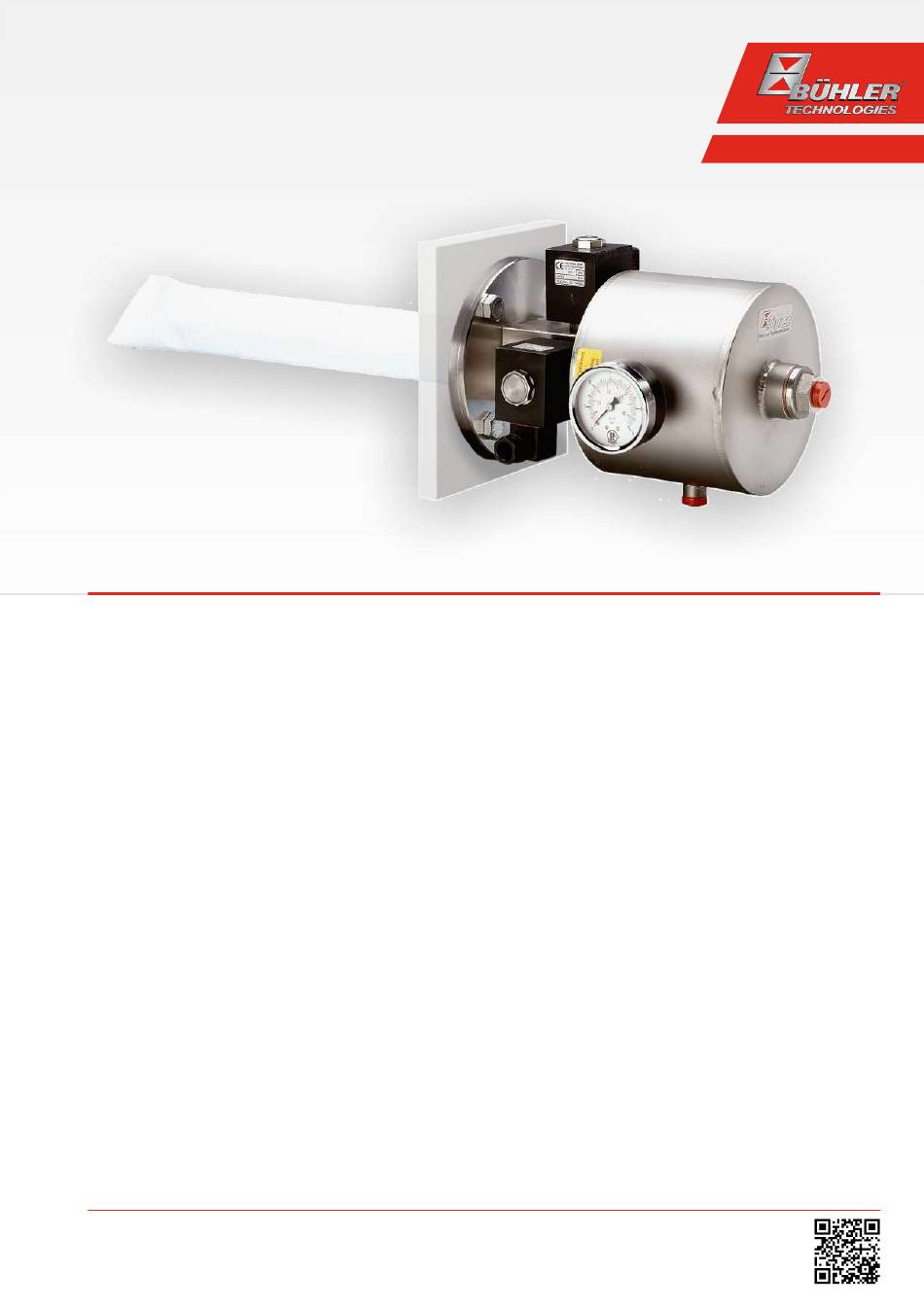

- Page 1 Gas Analysis Sample gas probe Installation and Operation Instructions Original instructions BE460013 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 01/2020 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: analyse@buehler-technologies.com Internet: www.buehler-technologies.com...
- Page 2 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 Internet: www.buehler-technologies.com E-Mail: analyse@buehler-technologies.com Read this instruction carefully prior to installation and/or use. Pay at- tention particularly to all advises and safety instructions to prevent in- juries.
-
Page 3: Table Of Contents
Table of Contents Introduction............................................. 2 Intended Use......................................... 2 Scope of Delivery........................................ 2 Ordering Instructions...................................... 2 Safety instructions......................................... 3 Important advice ......................................... 3 General hazard warnings .................................... 4 Transport and storage ........................................ 5 4 Installation and connection ...................................... 6 Installation site requirements.................................. 6 Installation .......................................... 6 Insulation.......................................... 6 Connecting the Gas Line.................................... 6 Electrical connections ...................................... -
Page 4: Introduction
– Connection and mounting accessories (only optional) 1.3 Ordering Instructions Item no. Description Material 46 22 290 Sample Gas Probe ECO 46 22 2007 Sampling tube 10, max. 135°C Polyester / 1.4571 46 22 2015 Sampling tube 11, max. 260°C PTFE / 1.4571... -
Page 5: Safety Instructions
2 Safety instructions 2.1 Important advice Operation of the device is only valid if: – the product is used under the conditions described in the installation- and operation instruction, the intended application according to the type plate and the intended use. In case of unauthorized modifications done by the user Bühler Technolo- gies GmbH can not be held responsible for any damage, –... -
Page 6: General Hazard Warnings
2.2 General hazard warnings The equipment must be installed by a professional familiar with the safety requirements and risks. Be sure to observe the safety regulations and generally applicable rules of technology relevant for the installation site. Prevent malfunctions and avoid personal injuries and property damage. The operator of the system must ensure: –... -
Page 7: Transport And Storage
3 Transport and storage The device should be only transported in the original case or in appropriate packing. If the device is not used for some time, protect it against heat and humidity. Store the device in a roofed, dry, and dust free room. -
Page 8: Installation And Connection
4 Installation and connection 4.1 Installation site requirements Sample gas probes are intended for flange mounting. – Installation site and installation position are determined based on requirements specific to the application. – If necessary, the connection piece should be slightly tilted toward the centre of the channel. –... -
Page 9: Electrical Connections
This device has an EN 175301-803 plug. The following pin assignments and the assignment of solenoid valves to the function are listed below. The numbers specified correspond with those on the plugs. The power supply is 24 VDC. Blowback Sample gas Fig. 1: A02-100034 pin assignment ECO BE460013 ◦ 01/2020 Bühler Technologies GmbH... -
Page 10: Operation And Controls
5 Operation and controls NOTICE The device must not be operated beyond its specifications. 5.1 Before Start-Up Before starting the device, verify – the hose- and electrical connections are not damaged and correct installed. – no parts of the gas probe have been removed. –... -
Page 11: Maintenance
6 Maintenance During maintenance, remember: – The equipment must be maintained by a professional familiar with the safety requirements and risks. – Only perform maintenance work described in these operating and installation instructions. – When performing maintenance of any type, observe the respective safety and operation regulations. DANGER Electrical voltage Electrocution hazard. -
Page 12: Service And Repair
7 Service and repair This chapter contains information on troubleshooting and correction should an error occur during operation. Repairs to the unit must be performed by Bühler authorised personnel. Please contact our Service Department with any questions: Tel.: +49-(0)2102-498955 or your agent If the equipment is not functioning properly after correcting any malfunctions and switching on the power, it must be inspected by the manufacturer. -
Page 13: Disposal
8 Disposal Dispose of parts so as not to endanger the health or environment. Follow the laws in the country of use for disposing of elec- tronic components and devices during disposal. BE460013 ◦ 01/2020 Bühler Technologies GmbH... -
Page 14: Appendices
9 Appendices 9.1 Technical Data Gas Probe Technical Data Flange: 1.4571 Head: 1.4571 Gas inlet temperature: max. 120 °C Ambient temperature: -20 to +60 °C Solenoid valve: VA/ Viton/ EPDM 24 VDC Weight without filter element: approx. 9.3 kg Reservoir: 1.4571 Reservoir volume: Reservoir max. -
Page 15: Dimensions
9.3 Dimensions Reservoir: Flange DN65 PN6 Accessories approx. 392 (15.4) 1= sampling tube (accessory) View A 2= NPT 1/4" connection (e.g. calibrating gas) 3= sample gas Off NPT 1/4" 4= G1/4 connector (e.g. pressure gauge) 5= condensate Off G1/4 6= air connection G1/4 BE460013 ◦... -
Page 16: Attached Documents
10 Attached Documents – Declaration of Conformity KX460003 – RMA - Decontamination Statement Bühler Technologies GmbH BE460013 ◦ 01/2020... - Page 18 RMA-Formular und Erklärung über Dekontaminierung RMA-Form and explanation for decontamination RMA-Nr./ RMA-No. Die RMA-Nummer bekommen Sie von Ihrem Ansprechpartner im Vertrieb oder Service./ You may obtain the RMA number from your sales or service representative. Zu diesem Rücksendeschein gehört eine Dekontaminierungserklärung. Die gesetzlichen Vorschriften schreiben vor, dass Sie uns diese Dekontaminierungserklärung ausgefüllt und unterschrieben zurücksenden müssen.
- Page 19 Dekontaminierungserklärung DE000011 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 01/2019 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: service@buehler-technologies.com Internet: www.buehler-technologies.com...
