Installation and Assembly
4.2

Pin Assignment

Terminal 2
V M1M2
V M1M2
Terminal 1

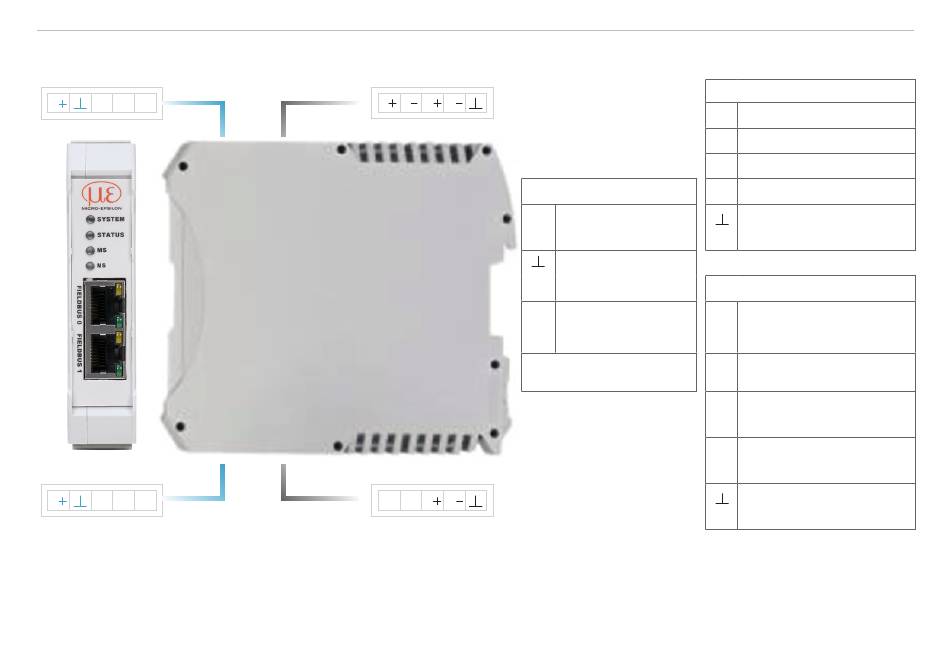

Fig. 2 Interface module terminals
1) Internally connected to supply ground
IF2030/ENETIP
Terminal 4
T T R R
A B S S
Terminal 3
2) If the distance between IF2030/PNET and the sensor/controller is long, a
separate supply for the sensor/controller may be advisable.
Terminal 1 and 2
V+ Supply
voltage
2
Ground for supply
voltage
M1, Multifunction input
M2 1/2 sensor (e.g., for
laser on/off)
Terminal 1 and 2 connec-
tions daisy-chained
Terminal 4
T+ RS422 Tx+
T- RS422 Tx-
R+ RS422 Rx+
R- RS422 Rx-
Ground 1 e.g., for RS422
shield connection
Terminal 3
A RS485 A
B RS485 B
S+ Synchronization output +
S- Synchronization output -
Ground 1 e.g., for RS485
shield connection
Page 11
