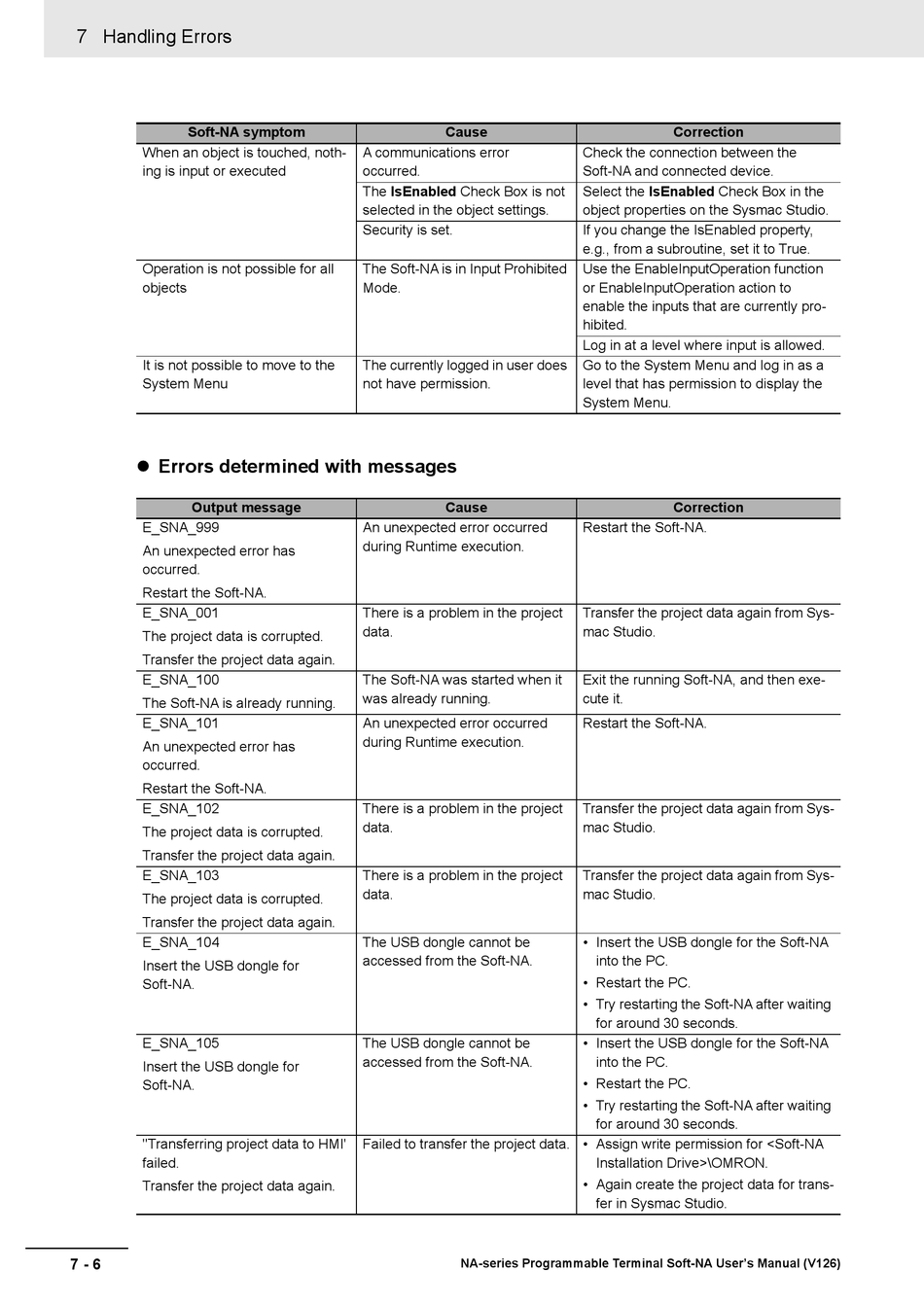

7 Handling Errors
Soft-NA symptom
When an object is touched, noth-
ing is input or executed
Operation is not possible for all
objects
It is not possible to move to the
System Menu
 Errors determined with messages
Output message
E_SNA_999
An unexpected error has
occurred.
Restart the Soft-NA.
E_SNA_001
The project data is corrupted.
Transfer the project data again.
E_SNA_100
The Soft-NA is already running.
E_SNA_101
An unexpected error has
occurred.
Restart the Soft-NA.
E_SNA_102
The project data is corrupted.
Transfer the project data again.
E_SNA_103
The project data is corrupted.
Transfer the project data again.
E_SNA_104
Insert the USB dongle for
Soft-NA.
E_SNA_105
Insert the USB dongle for
Soft-NA.
''Transferring project data to HMI'
failed.
Transfer the project data again.
7 - 6
Cause
A communications error
occurred.
The IsEnabled Check Box is not
selected in the object settings.
Security is set.
The Soft-NA is in Input Prohibited
Mode.
The currently logged in user does
not have permission.
Cause
An unexpected error occurred
during Runtime execution.
There is a problem in the project
data.
The Soft-NA was started when it
was already running.
An unexpected error occurred
during Runtime execution.
There is a problem in the project
data.
There is a problem in the project
data.
The USB dongle cannot be
accessed from the Soft-NA.
The USB dongle cannot be
accessed from the Soft-NA.
Failed to transfer the project data. • Assign write permission for <Soft-NA
NA-series Programmable Terminal Soft-NA User's Manual (V126)
Correction
Check the connection between the
Soft-NA and connected device.
Select the IsEnabled Check Box in the
object properties on the Sysmac Studio.
If you change the IsEnabled property,
e.g., from a subroutine, set it to True.
Use the EnableInputOperation function
or EnableInputOperation action to
enable the inputs that are currently pro-
hibited.
Log in at a level where input is allowed.
Go to the System Menu and log in as a
level that has permission to display the
System Menu.
Correction
Restart the Soft-NA.
Transfer the project data again from Sys-
mac Studio.
Exit the running Soft-NA, and then exe-
cute it.
Restart the Soft-NA.
Transfer the project data again from Sys-
mac Studio.
Transfer the project data again from Sys-
mac Studio.
• Insert the USB dongle for the Soft-NA
into the PC.
• Restart the PC.
• Try restarting the Soft-NA after waiting
for around 30 seconds.
• Insert the USB dongle for the Soft-NA
into the PC.
• Restart the PC.
• Try restarting the Soft-NA after waiting
for around 30 seconds.
Installation Drive>\OMRON.
• Again create the project data for trans-
fer in Sysmac Studio.
