USB Type-C™ Multiport Travel Dock,
6-Port
User Manual
DA-70867
1.0 INTRODUCTION

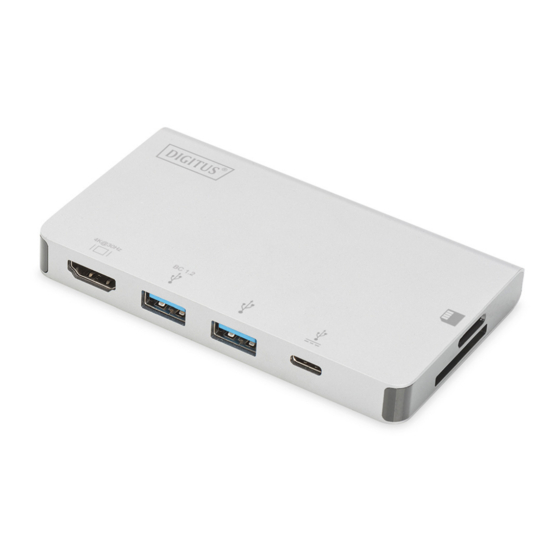

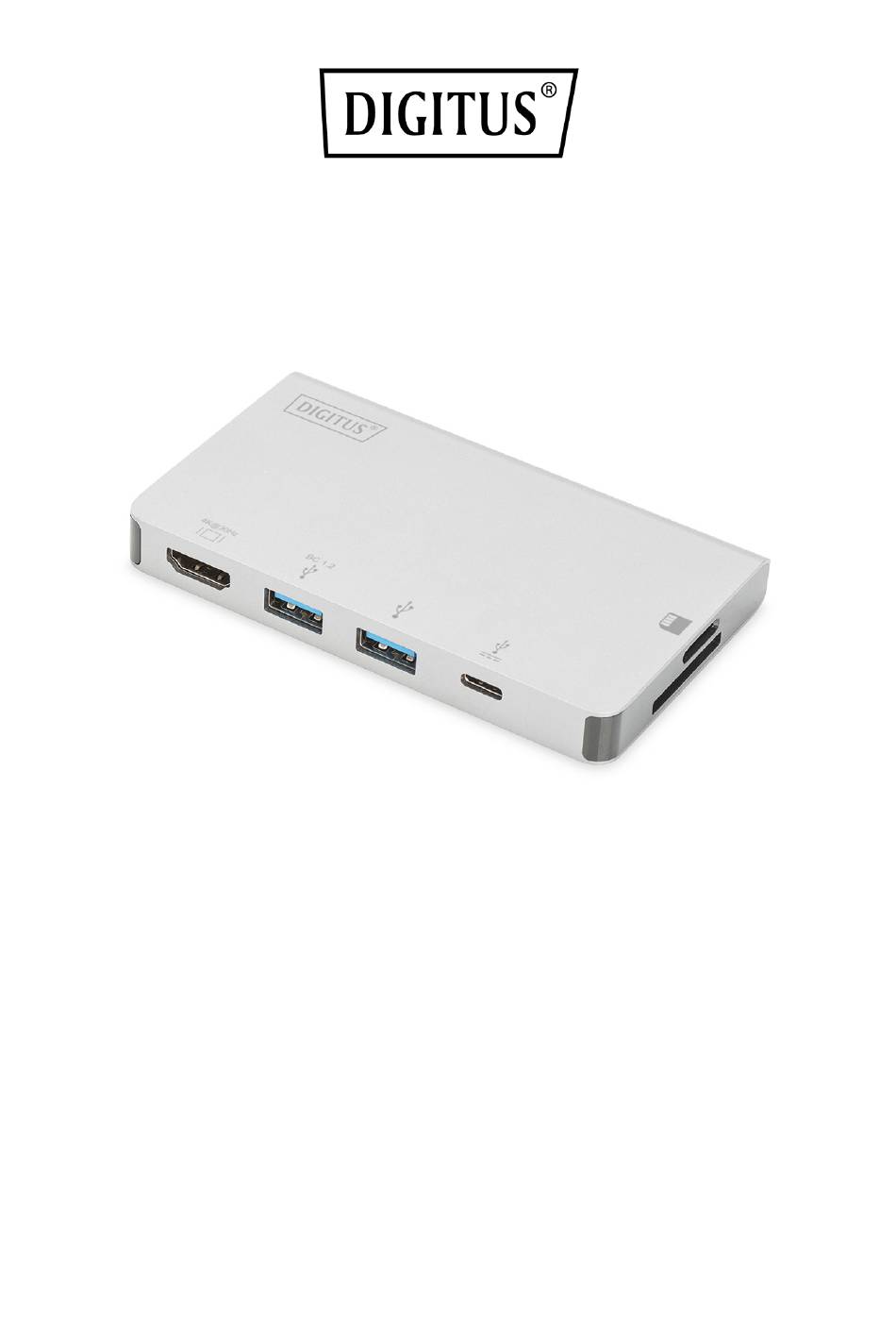

This is a USB-C to two USB 3.0, HDMI, Micro SD, SD/MMC, Type-C™ Data
and PD Charging Adapter. The USB 3.0 port allows you to connect USB
device or another hub to the host USB-C computer, the USB-C female
port supports both PD Charging and data; the HDMI port allows you to
enjoy high definition picture or video on big screen, and the Micro SD
and SD/MMC port allows you to read information in the memory card
on the host PC. It can work on all PCs and mobile phones which support
DP Alt-mode.
Advertisement
Table of Contents
Related Manuals for Digitus DA-70867
Summary of Contents for Digitus DA-70867
- Page 1 USB Type-C™ Multiport Travel Dock, 6-Port User Manual DA-70867 1.0 INTRODUCTION This is a USB-C to two USB 3.0, HDMI, Micro SD, SD/MMC, Type-C™ Data and PD Charging Adapter. The USB 3.0 port allows you to connect USB device or another hub to the host USB-C computer, the USB-C female port supports both PD Charging and data;...
- Page 2 2.0 FEATURES Interface: 1. Type-C™ Female x1 (connect to Type-C™ host PC with our equipped Type-C™ M to M cable) 2. Type-C™ Female x1 (for data and PD Charging) 3. USB-A Female x2 4. HDMI Female x1 5. SD slot x1, Micro SD slot x1 ...
- Page 3 3.0 SPECIFICATIONS Input/Output Connector Input USB-C Female x1 (with our Type-C™ M to M cable) Output USB 3.0 Female x2 USB-C Female x1 (for data and Charging) HDMI Female x1 Micro SDX1 SD/MMCX1 Environmental Operating Temperature 0°C to +45°C Operating Humidity 10% to 85% RH (no condensation) Storage Temperature -10°C to +70°C...
- Page 4 5.0 OPERATION 1) Connect the USB-C Female port of this product to USB-C device. 2) Connect the two USB 3.0 outputs of this product to two USB 3.0/2.0 devices 3) Connect HDMI output of this product to HDTV with one HDMI cable 4) Insert Micro SD, SD/MMC card into the responding slots 5) Connect the USB-C charging port, it can charge for the host computer and support power for this product simultaneously...
- Page 5 6.0 CONNECTION DIAGRAM Type-C Host PC HDMI Display Micro SD SD Card Type-C PD Type-C Device Mouse U DiSk Card Adapter Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
