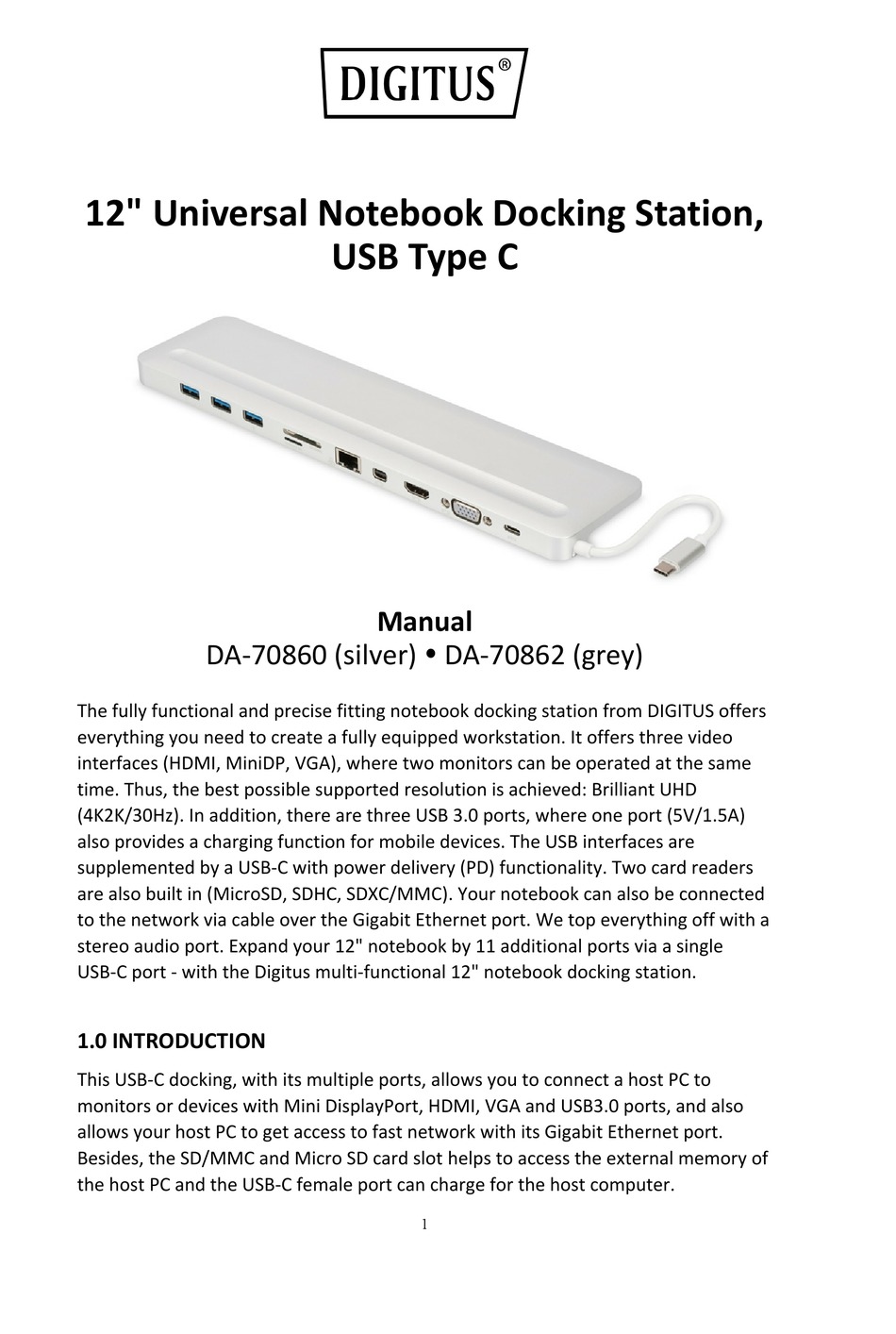

Digitus DA-70862 Manual

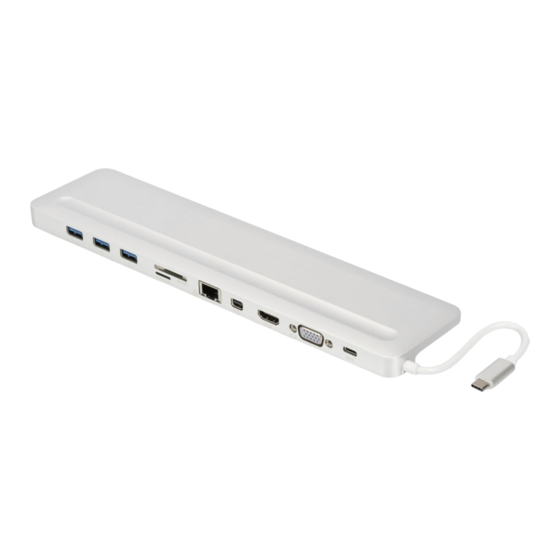

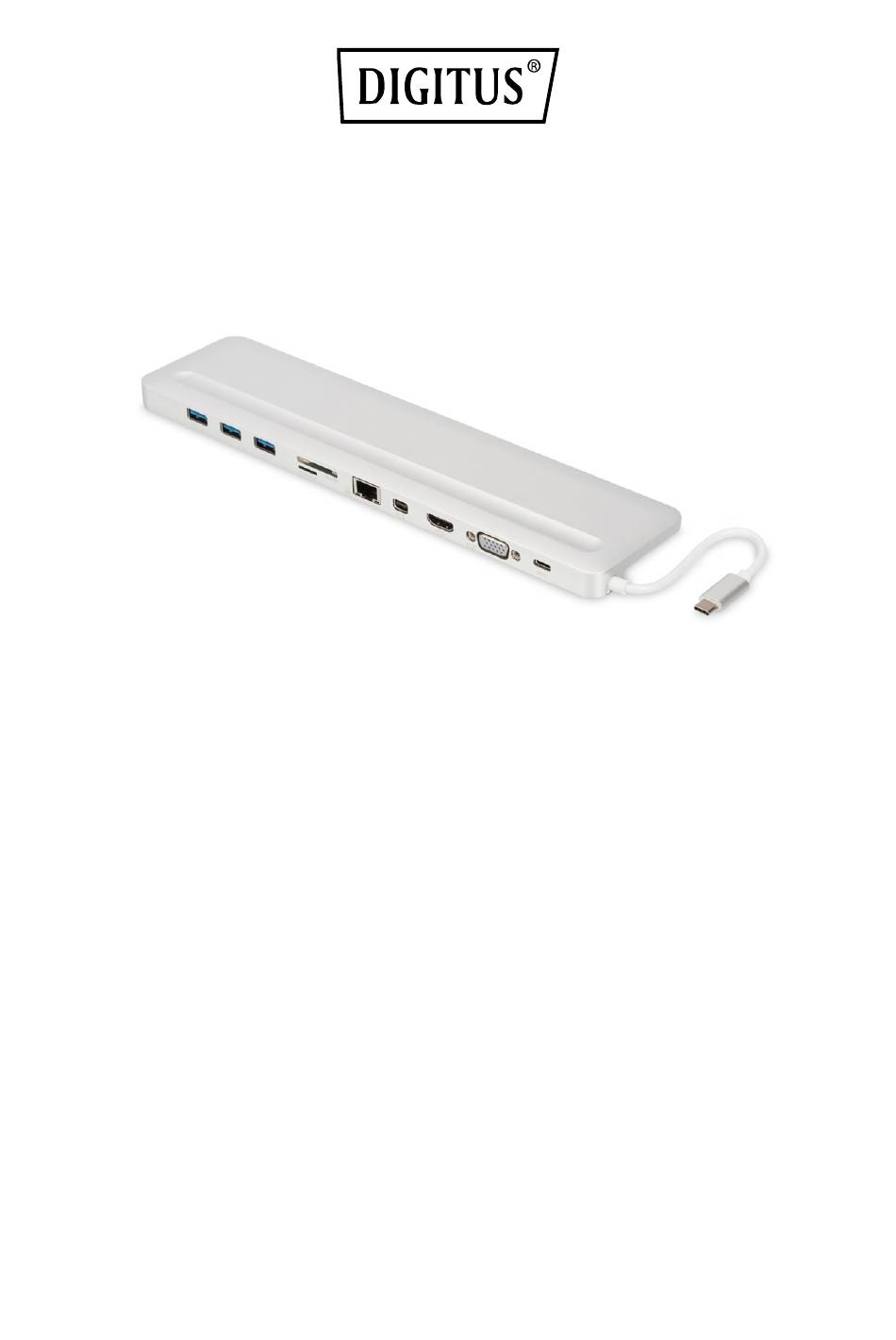

12" Universal Notebook Docking Station,
USB Type C
Manual
DA-70860 (silver)  DA-70862 (grey)
The fully functional and precise fitting notebook docking station from DIGITUS offers
everything you need to create a fully equipped workstation. It offers three video
interfaces (HDMI, MiniDP, VGA), where two monitors can be operated at the same
time. Thus, the best possible supported resolution is achieved: Brilliant UHD
(4K2K/30Hz). In addition, there are three USB 3.0 ports, where one port (5V/1.5A)
also provides a charging function for mobile devices. The USB interfaces are
supplemented by a USB-C with power delivery (PD) functionality. Two card readers
are also built in (MicroSD, SDHC, SDXC/MMC). Your notebook can also be connected
to the network via cable over the Gigabit Ethernet port. We top everything off with a
stereo audio port. Expand your 12" notebook by 11 additional ports via a single
USB-C port - with the Digitus multi-functional 12" notebook docking station.

1.0 INTRODUCTION

This USB-C docking, with its multiple ports, allows you to connect a host PC to
monitors or devices with Mini DisplayPort, HDMI, VGA and USB3.0 ports, and also
allows your host PC to get access to fast network with its Gigabit Ethernet port.
Besides, the SD/MMC and Micro SD card slot helps to access the external memory of
the host PC and the USB-C female port can charge for the host computer.
1
