USB Type-C™ Multiport Travel Dock,
8-Port
User Manual
DA-70866

1.0 INTRODUCTION

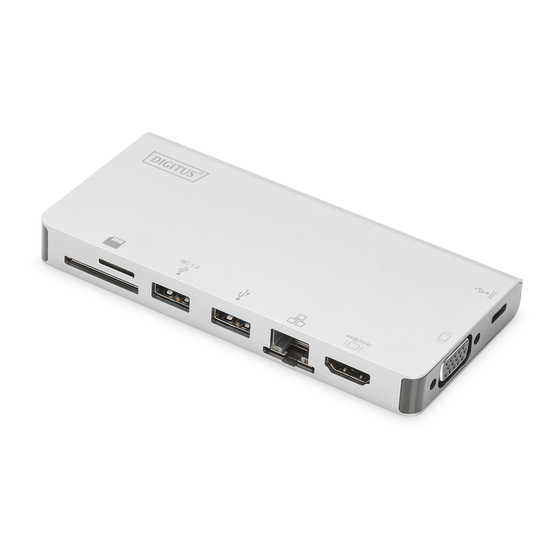

This is a USB-C to two USB 3.0, RJ45, HDMI, VGA, Micro SD, SD/MMC,
Type-C™ Data and PD Charging portable dock. The USB 3.0 port allows
you to connect USB device to the host USB-C computer, the USB-C
female port supports both PD Charging and data; the Gigabit Ethernet
port allows the host computer to get access to the network; the HDMI
and VGA ports allow you to enjoy high definition picture or video on big
screen, and the Micro SD and SD/MMC port allows you to read data in
the memory card on the host PC. It can work on all PCs and mobile
phones which support DP Alt-mode.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-70866 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DA-70866

  • Page 1 USB Type-C™ Multiport Travel Dock, 8-Port User Manual DA-70866 1.0 INTRODUCTION This is a USB-C to two USB 3.0, RJ45, HDMI, VGA, Micro SD, SD/MMC, Type-C™ Data and PD Charging portable dock. The USB 3.0 port allows you to connect USB device to the host USB-C computer, the USB-C female port supports both PD Charging and data;...
  • Page 2 2.0 FEATURES  Interface: 1. Type-C™ Female x1 (connect to Type-C™ host PC with our equipped Type-C™ M to M cable) 2. Type-C™ Female x1 (for data and PD Charging) 3. USB-A Female x2 4. HDMI Female x1 5. VGA female x1 6.
  • Page 3 Note: Description of the Detached Type-C™ M to M Cable 1) It is a USB 3.1 Type-C™ Gen2 Full-featured cable with speed up to 10Gbps; E-marked IC and Vbus current capability up to 5Amp 2) This product only functions well with our equipped Type-C™ M to M cable or cable produced by us that has the same spec with the original one.
  • Page 4 5.0 OPERATION 1) Connect the USB-C Female port of this product to USB-C device. 2) Connect the two USB 3.0 outputs of this product to two USB 3.0/2.0 devices 3) Connect HDMI output of this product to HDTV with one HDMI cable 4) Connect VGA port of this product to a VGA monitor 5) Connect to the Gigabit Ethernet port of this product to Ethernet Router with an Ethernet cable...
  • Page 5: Connection Diagram

    6.0 CONNECTION DIAGRAM Mouse U Disk Type-C Host PC Type-C Device SD Card Type-C PD Adapter Ethernet Router VGA Display HDMI Display Micro SD Card Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
