COMPONENT LAYOUT

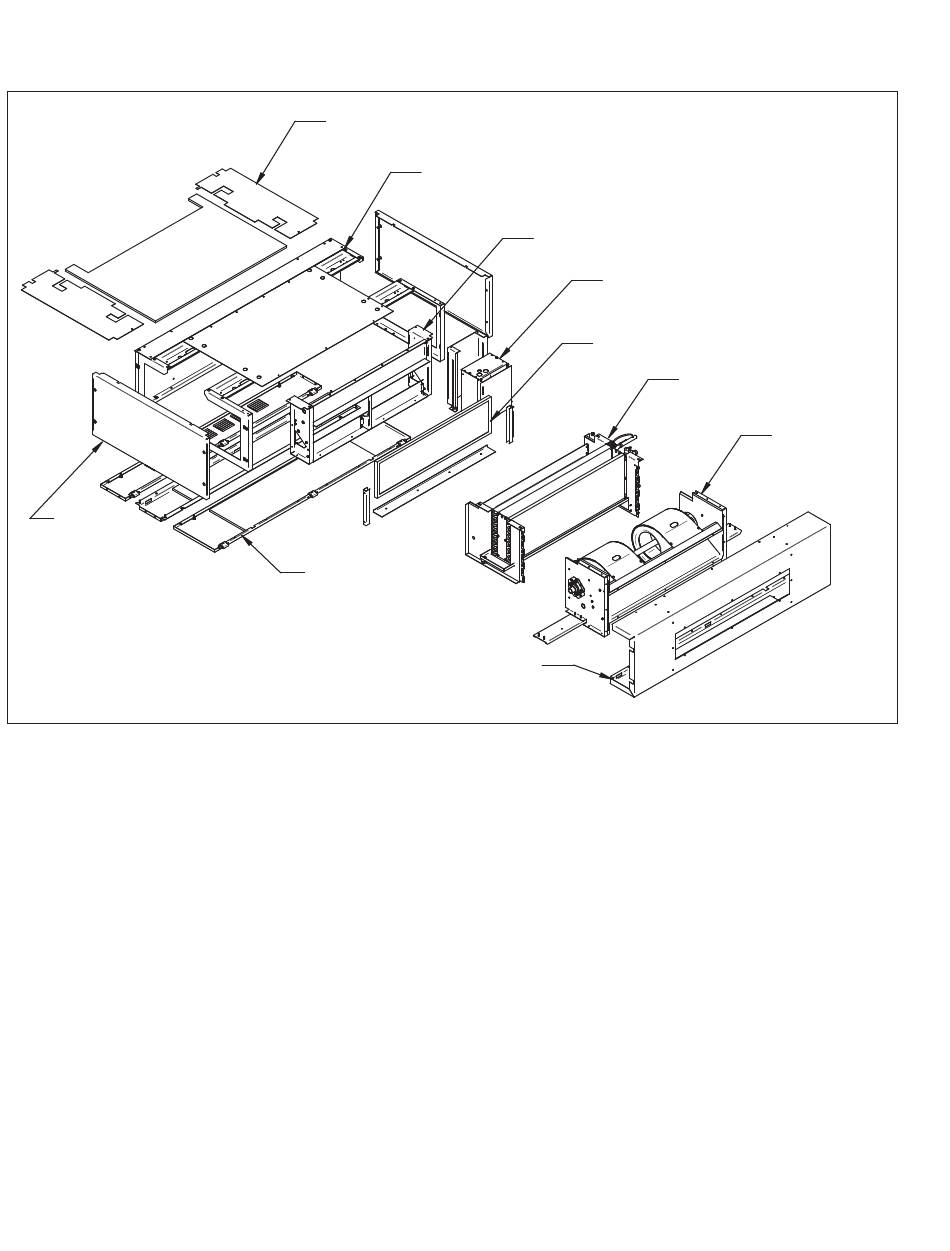

Figure 14.1 - Exploded View
END
PANELS
14
PIPING TOP
ACCESS PANELS
BASE ASSEMBLY
BOTTOM
ACCESS
PANELS
DISCHARGE AIR PANEL
ASSEMBLY
AIR14.501.2
DAMPER ASSEMBLY
CONTROL PANEL
FILTER
COIL ASSEMBLY
BLOWER
ASSEMBLY
