DIMENSIONS

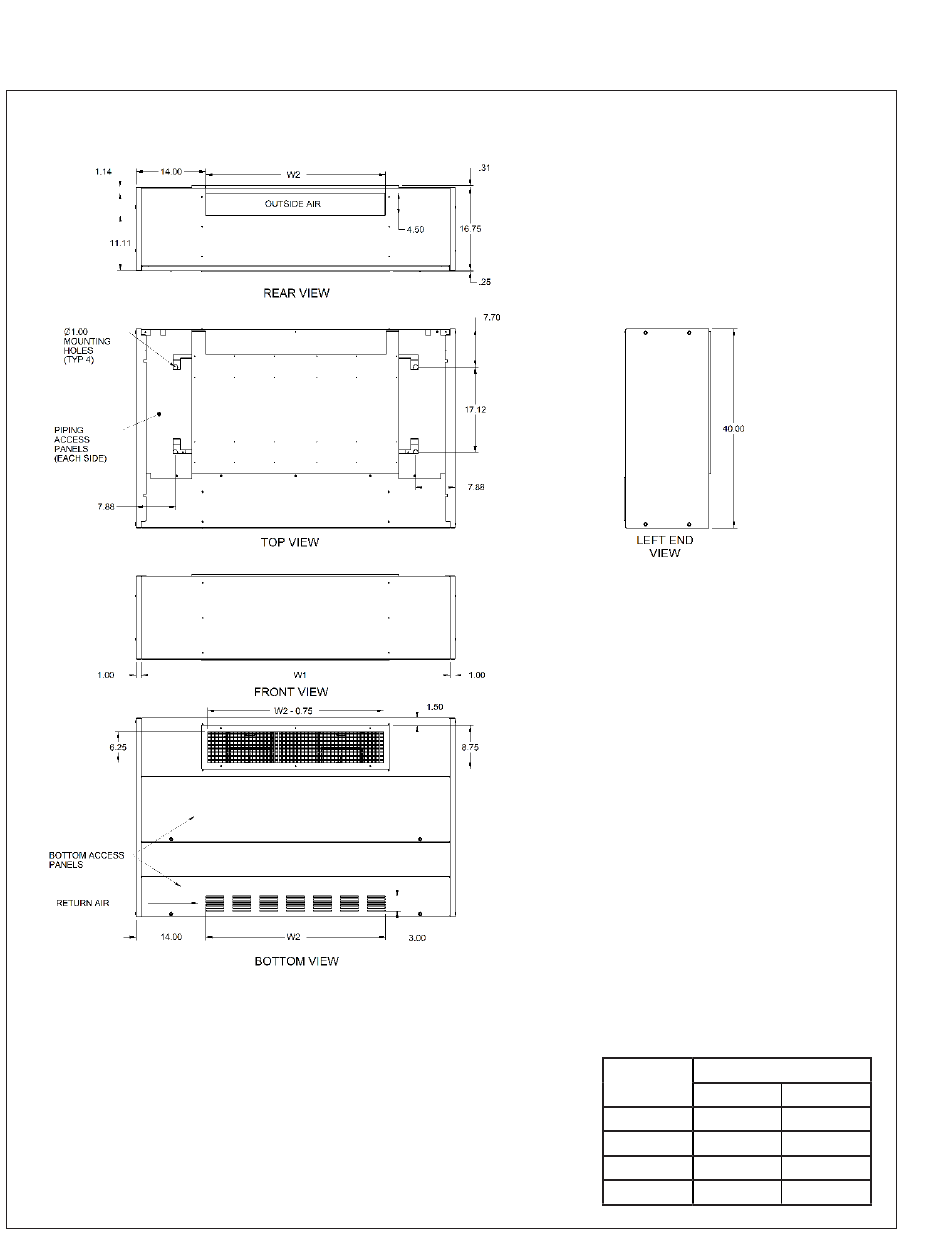

Figure 12.1 - Down Discharge Unit
12
AIR14.501.2
Table 12.1 - Unit Dimensions
Dimensions (inches)
Model Size
W1
750
62
1000
74
1250
86
1500
98
W2
36
48
60
72
