WPG MTCL8FS10TDC Instructions Manual

Cladding lifter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KEEP FOR FUTURE REFERENCE
INSTRUCTIONS
International Version
P .O. Box 368 – 908 W est M ain
Laurel, M T USA 59044
MODEL NUMBER: MTCL8FS10TDC
phone 800-548-7341
SERIAL NUMBER: ___________
phone 406-628-8231
fax 406-628-8354
(please see serial label and record number here)

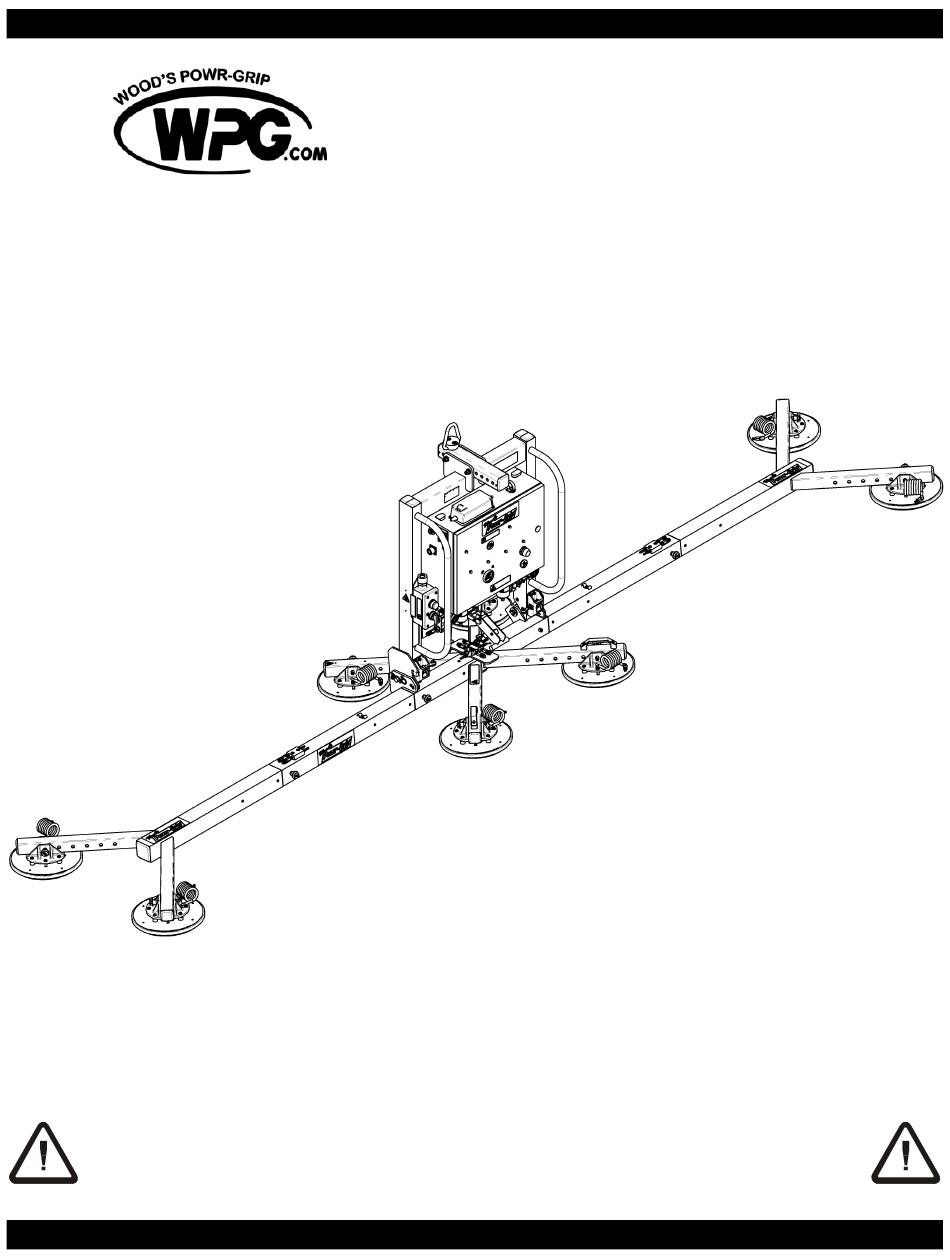

CLADDING LIFTER
DC-VOLTAGE
WITH DUAL VACUUM SYSTEM
AND VPFS10T PADS
R EAD ALL I NSTRUCTI ONS AND W AR NI NGS
BEFOR E OPER ATI NG THI S LI FTER
DESIGNED FOR THE MATERIALS HANDLING PROFESSIONAL
