Appendix; Schematic - Microchip Technology AVR-IoT Wx Hardware User's Manual

Hide thumbs
Table of Contents

Advertisement

8.

Appendix

8.1

Schematic

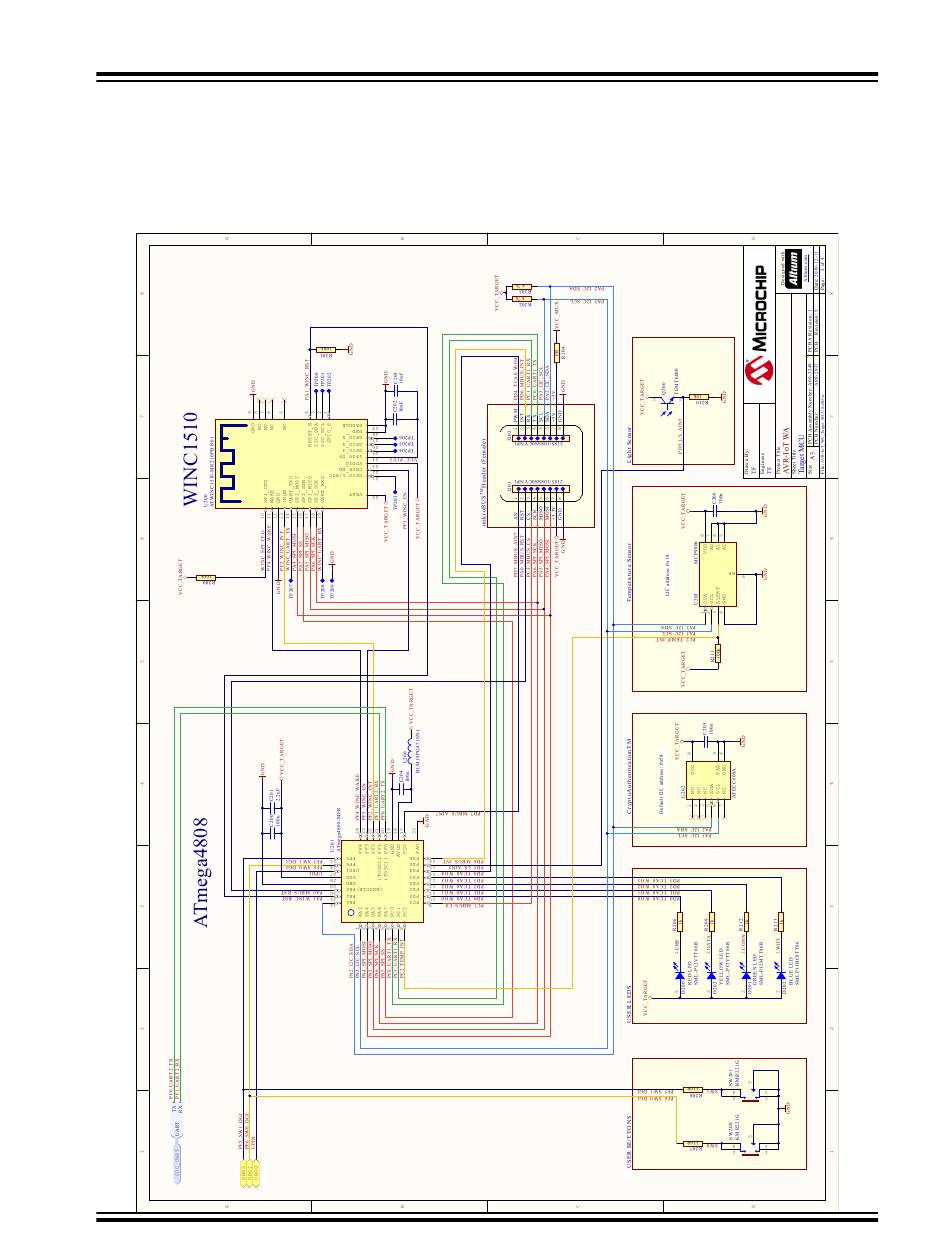

Figure 8-1. AVR-IoT Wx Schematic
©
2020 Microchip Technology Inc.
AVR-IoT Wx Hardware User Guide
User Guide
Appendix
DS50002805B-page 25
