Selecting Components

Selecting components with the Matrix System MVP Control Panel is easy. Each component connected to the
System has a number. Enter this number on the keypad, press the button on the correct Dual Chain Module
or Watt Meter/Single Chain Module and the LED display will confirm your entry. Continue to select
components for a demonstration system, and as soon as the appropriate level signal reaches a destination
component, the system will begin to play.
Enter desired 1 or 2 digit
component number with
Numeric Keys.
Component
number appears in
Control Module
Display.
Clear entry by
I-R Remote
pressing "00," if
desired
Control
Panel
Press corresponding Press Chain Button on
numbered Chain Selection correct Dual Chain Module.
Key. (1-14)
Correct
component number
N
appears in Dual
Error
Chain Module
Display (?).
Y
Component
Selected

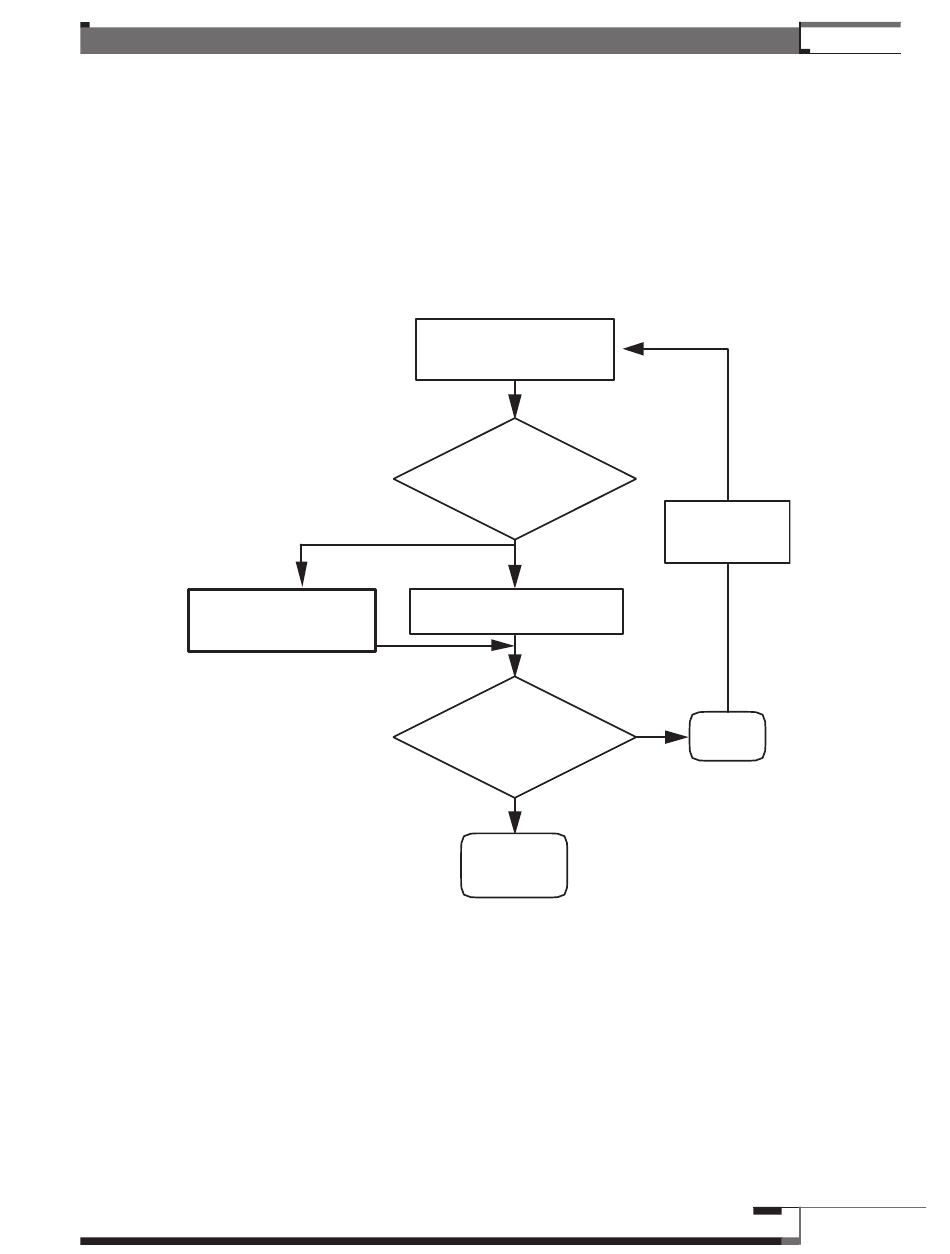

Figure 56 – Basic Component Selection
