Operation and Maintenance Manual
Carrier OptiClean™ Negative Air Machine
Model FN1AAF
NOTE: Read all instructions and data in this manual before operating.

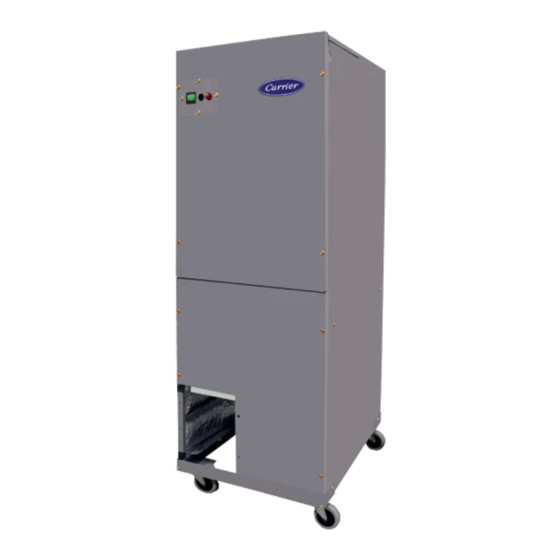

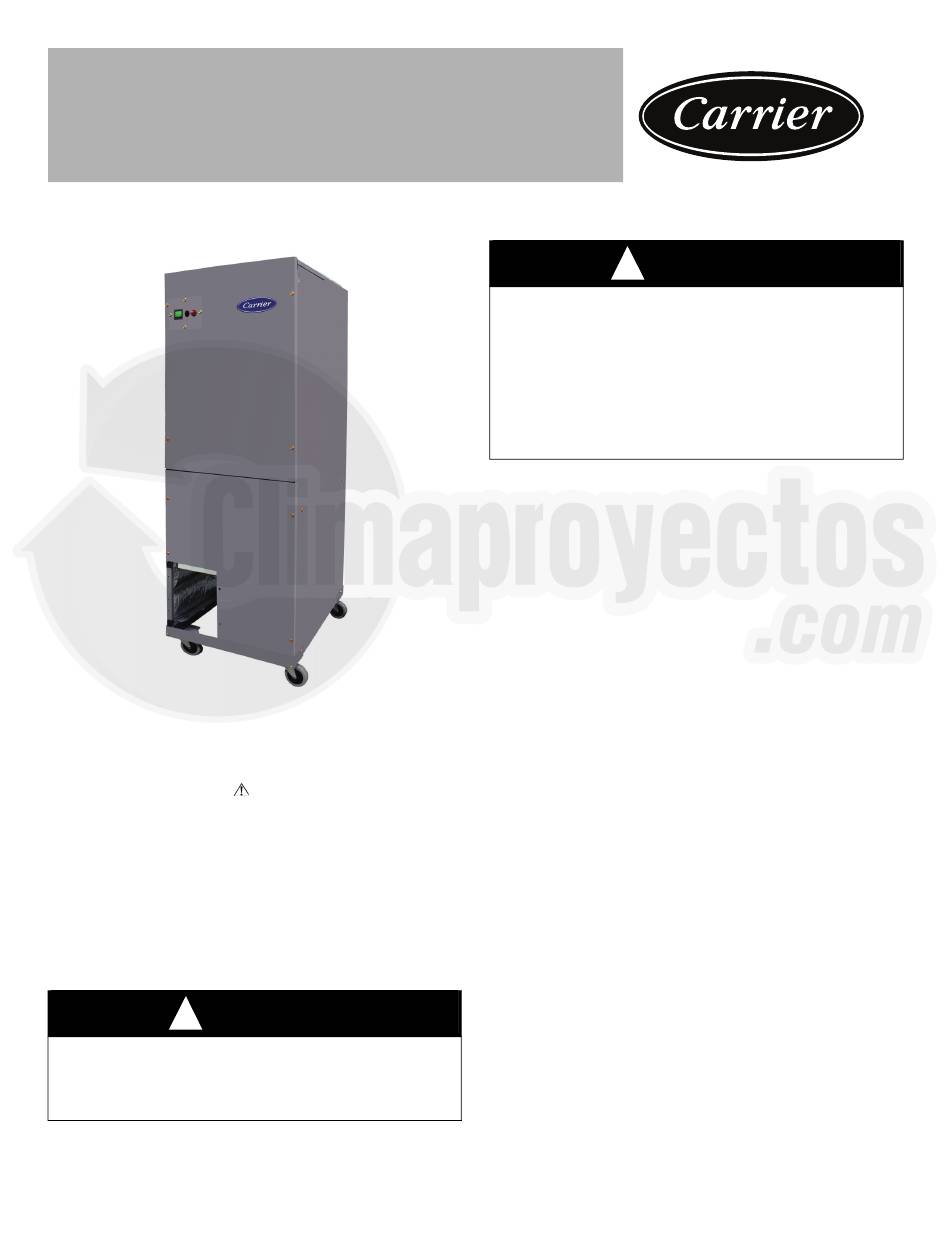

Fig. 1 – FN1AAF
A Note About Safety
Any time you see this symbol
unit, be aware of the potential for personal injury. There are three levels
of precaution:
DANGER identifies the most serious hazards which will result in severe
personal injury or death.
WARNING signifies hazards that could result in personal injury or
death.
CAUTION is used to identify unsafe practices which would result in
minor personal injury or product and property damage.
NOTE is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.
WARNING
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
Disconnect all electrical power to the unit before removing access
panels to perform any maintenance.
A200220
in manuals, instructions and on the
WARNING
!
PERSONAL INJURY OR PROPERTY DAMAGE
HAZARD
Failure to follow this warning could result in personal injury or
property damage.
Improper installation, adjustment, alteration, service, maintenance, or
use can cause conditions which may cause personal injury or property
damage. Consult a qualified installer or your distributor for information
or assistance. Read and follow all instructions and warnings, including
labels shipped with or attached to unit before operating.
About Your Negative Air Machine
The Carrier OptiClean™ negative air machine is a portable, minimum
500 CFM solution primarily designed to help convert normal hospital
rooms into Airborne Infectious Isolation Rooms (AIIR). Designed to
ASHRAE's Standard 170 for Ventilation of Health Care Facilities, the
Carrier OptiClean uses highly efficient filters and a heavy duty, yet
quiet, motor to remove contaminated air from the room. The resulting
negative air pressure, or "vacuum effect," helps limit the spread of
air-based contaminants into surrounding areas. If negative pressure is not
required, such as in an open-air, temporary hospital, the machine can be
used as an air "scrubber," pulling air in, removing many contaminants,
and discharging cleaner air back into the room.
The Carrier OptiClean negative air machine has the following features:
• 99.97% efficient long-life HEPA filter removes particles as small as
0.3 microns
• Standard MERV 7 or higher pre-filter available locally
• Minimum 500 CFM
• Meets or exceeds ASHRAE Standard 170: Ventilation of Health Care
Facilities
• Vertical design for smaller footprint compared to many competitors
• Portable and adaptable to nearly any location
• Heavy duty locking casters for easy and smooth transport
• HEPA filter rack and sealing design meet air leakage requirement
• Red lighted indicator to alert user when filters are overloaded
(generally means pre-filter requires replacement)
• Green ON/OFF switch illuminates to verify when running
• 10-foot long power cord with strain relief
• 115V
• Galvanized steel, pre-painted cabinet is fully insulated
• Exhaust transition plate to standard 10-inch round duct included
• UL® Listed
• One year limited warranty
• Currently designed for commercial applications only
UL and the UL logo are trademarks of UL LLC.
