FB4C(S,Q)L
Fan Coil Units for R-401A Refrigerant
SIZES 018 TO 060, 50Hz
NOTE: Read the entire instruction manual before starting the
installation.

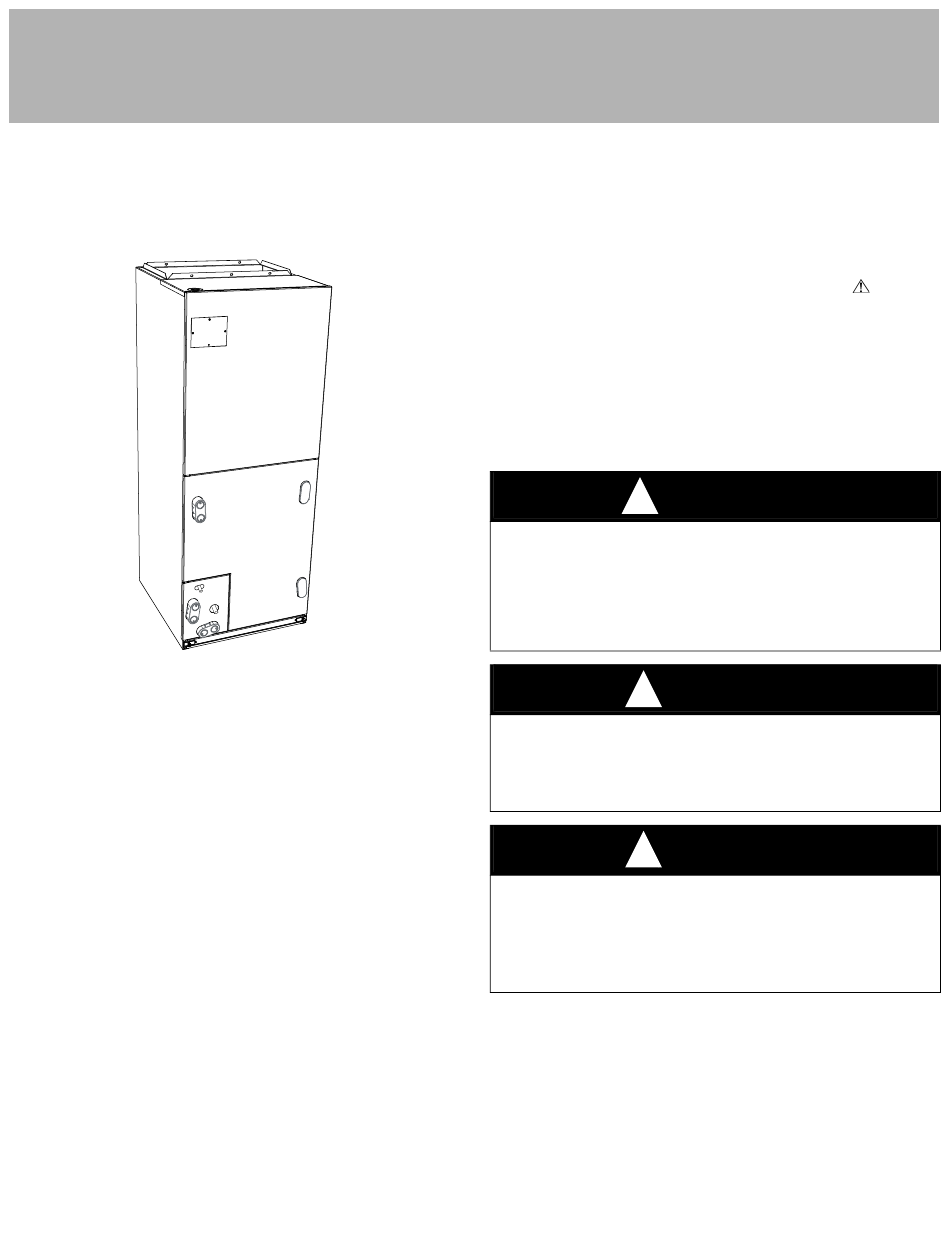

Fig. 1 - Typical Unit

Table of Contents

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Refrigerant Tubing Connection and Evacuation . . . . . . . . . . . . . . 7
Refrigerant Flow-Control Device . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Condensate Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Start-Up Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
AIRFLOW PERFORMANCE TABLES. . . . . . . . . . . . . . . . . . . 11
AIRFLOW PERFORMANCE TABLES (cont.) . . . . . . . . . . . . . 12
R- 410A QUICK REFERENCE GUIDE. . . . . . . . . . . . . . . . . . . 22

Safety Considerations

Improper installation, adjustment, alteration, service, maintenance, or
use can cause explosion, fire, electrical shock, or other conditions which
may cause death, personal injury or property damage. Consult a
qualified installer, service agency, or your distributor or branch for
information or assistance. The qualified installer or agency must use
factory-authorized kits or accessories when modifying this product.
Refer to the individual instructions packaged with the kits or accessories
when installing.
Follow all safety codes. Wear safety glasses, protective clothing, and
work gloves. Use quenching cloth for brazing operations. Have fire
extinguisher available. Read these instructions thoroughly and follow all
warning or cautions included in literature and attached to the unit.
Installation Instructions
A02332A
Consult local building codes and the current editions of the National
Electrical Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical Code
CSA C22.1.
Recognize safety information. When you see this symbol
and in instructions or manuals, be alert to the potential for personal
injury. Understand the signal words DANGER, WARNING,
CAUTION, and NOTE. These words are used with the safety-alert
symbol. DANGER identifies the most serious hazards which will result
in severe personal injury or death. WARNING signifies hazards which
could result in personal injury or death. CAUTION is used to identify
unsafe practices which may result in minor personal injury or product
and property damage. NOTE is used to highlight suggestions which will
result in enhanced installation, reliability, or operation.
WARNING
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
Before installing or servicing system, always turn off main power to
system. There may be more than one disconnect switch. Tag disconnect
switch with a suitable warning label. Turn off accessory heater power if
applicable.
!
CUT HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care and wear
appropriate protective clothing and gloves when handling parts.
!
HOT TUBE WARNING
Failure to follow this caution could result in personal injury and/or
property damage.
Refrigerant lines can reach or exceed 130 °F (54 °C). Avoid contact
with the vapor header or vapor line, especially in Heating Mode.

Introduction

FB4C models are R- 410A Fan Coils designed for installation flexibility.
These units are designed to meet the low air leak requirements currently
in effect.
A TXV is used on FB4C(S,Q)L. This valve is a bleed- through type and
adjustable (if necessary). All FB4C fan coils use a multi- tap ECM motor
for efficiency. These units have been designed for upflow, downflow (kit
required), and horizontal orientations.
CAUTION
CAUTION
on the unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FB4CSL and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrier FB4CSL

  • Page 1: Table Of Contents

    FB4C(S,Q)L Fan Coil Units for R-401A Refrigerant SIZES 018 TO 060, 50Hz Installation Instructions NOTE: Read the entire instruction manual before starting the Consult local building codes and the current editions of the National installation. Electrical Code (NEC) NFPA 70. In Canada, refer to the current editions of the Canadian Electrical Code CSA C22.1.
  • Page 2: Installation

    FB4C(S,Q)L: Installation Instructions These units require a field supplied air filter, and are designed IMPORTANT: When unit is installed over a finished ceiling and/or specifically for R- 410A refrigerant 50 Hz air conditioners. These units living area, building codes may require a field-supplied secondary are available for systems of 18,000 through 60,000 BTUh nominal condensate pan to be installed under the entire unit.
  • Page 3: Horizontal Installation

    FB4C(S,Q)L: Installation Instructions For slope fan coils, use kit Part No. KFADC0201SLP. For A- coils, use 5. Attach coil to casing flange using coil mounting screw previously kit Part No. KFADC0401ACL. Use fireproof resilient gasket, 1/8 to 1/4- removed. in (3 to 6 mm) thick, between duct, unit, and floor. NOTE: Gasket kit 6.
  • Page 4: Ductwork Acoustical Treatment

    FB4C(S,Q)L: Installation Instructions f. Install hose onto plastic spout. 7. Install horizontal pan on right side of coil assembly. CAUTION 8. Slide coil assembly into casing. Be sure coil bracket on each corner of vertical pan engages coil support rails. PROPERTY DAMAGE HAZARD 9.
  • Page 5 FB4C(S,Q)L: Installation Instructions FAN COIL CAUTION HEAT PUMP THERMOSTAT (CONTROL) (CONTROL) PROPERTY DAMAGE HAZARD Failure to follow this caution may result in product or property damage. If a disconnect switch is to be mounted on unit, select a location where drill or fastener will not contact electrical or refrigerant components.
  • Page 6 FB4C(S,Q)L: Installation Instructions transformer and connect it to the 208v terminal. (See Fig. 13.) FAN COIL HEAT PUM THERMOSTAT (CONTROL) (CONTROL SECONDARY ODTS1 ODTS2 PRIMARY YEL / GRN TO GROUND LUG A05182 Fig. 13 – Transformer Connections Heater Staging The controls are factory circuited for single- stage operation. For 2- stage operation, use outdoor thermostat kit Part No.
  • Page 7: Refrigerant Tubing Connection And Evacuation

    FB4C(S,Q)L: Installation Instructions Refrigerant Tubing Connection and Evacuation Minimum CFM and Motor Speed Selection The fan speed selection is done at the motor connector. Units with or Use accessory tubing package or field- supplied tubing of refrigerant without electric heaters require a minimum CFM. Refer to the unit grade.
  • Page 8: Condensate Drain

    FB4C(S,Q)L: Installation Instructions CAUTION UNIT OR PROPERTY DAMAGE HAZARD Failure to follow this caution may result in product or property damage. The conversion of the fan coil to downflow requires special procedures for the condensate drains on both A-coil and slope units. The vertical drains have an overflow hole between the primary and secondary drain holes.
  • Page 9: Start-Up Procedures

    FB4C(S,Q)L: Installation Instructions CAUTION FAN COIL THERMOSTAT HEAT PUMP (CONTROL) (CONTROL) PROPERTY DAMAGE HAZARD Failure to follow this caution may result in product or property damage. Shallow running traps are inadequate and DO NOT allow proper condensate drainage (see Fig. 18).
  • Page 10: Care And Maintenance

    FB4C(S,Q)L: Installation Instructions CAUTION UNIT COMPONENT HAZARD Failure to follow this caution may result in product damage. Never operate unit without a filter. Damage to blower motor or coil may result. Factory authorized filter kits must be used when locating the filter inside the unit.
  • Page 11: Airflow Performance Tables

    FB4C(S,Q)L: Installation Instructions AIRFLOW PERFORMANCE TABLES Table 1 – FB4C Airflow Performance (CFM) MODEL & SIZE BLOWER SPEED 0.10 0.20 0.30 0.40 0.50 0.60 Tap 5 Tap 4 Tap 3 FB4C 018 Tap 2 Tap 1 Tap 5 Tap 4 Tap 3 FB4C 024 Tap 2...
  • Page 12: Airflow Performance Tables (Cont.)

    FB4C(S,Q)L: Installation Instructions AIRFLOW PERFORMANCE TABLES (cont.) Table 2 – FB4C Air Delivery Performance Correction Component Pressure Drop (in. wc) at Indicated Airflow (Dry to Wet Coil) UNIT SIZE 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 0.034 0.049 0.063...
  • Page 13 Address Line 2 Address Line 3 NUMBER NUMBER INPUT (A) Indianapolis IN FB4CSL018L00EAAA 38CKM018-X-701-- 19160 16150 1462 1842 13.10 8.77 2200 Carrier Corp 7310 W. Morris St. 46231 USA Indianapolis IN FB4CSL024L00EAAA 38CKM024-X-701-- 22670 20350 1804 2258 10.5 12.57 9.01 11.4 2710 Carrier Corp 7310 W.
  • Page 14 Fig. 22 – FB4CSL - English Measurements...
  • Page 15 Fig. 23 – FB4CSL - English Measurements...
  • Page 16 Fig. 24 – FB4CSL - Metric Measurements...
  • Page 17 Fig. 25 – FB4CSL - Metric Measurements...
  • Page 18 Fig. 26 – FB4CQL - English Measurements...
  • Page 19 Fig. 27 – FB4CQL - English Measurements...
  • Page 20 Fig. 28 – FB4CQL - Metric Measurements...
  • Page 21 Fig. 29 – FB4CQL - Metric Measurements...
  • Page 22: R- 410A Quick Reference Guide

    Evacuate to 500 microns prior to recharging. • Do not vent R-410A refrigerant into the atmosphere. • Do not use capillary tube coils. © 2024 Carrier. All rights reserved. Edition Date:10/24 Catalog No: IM-FB4CSL-QL-02 A Carrier Company Replaces: IM-FB4CSL-QL-01 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
