FN1AAF
OptiClean™ Air Scrubber and Negative Air Machine
!
IMPORTANT INFORMATION
Read all instructions and data in this manual before operating. DO NOT
apply power or turn on until the outer packaging (plus the inside located
Parts box and cardboard under the filters) have been removed from the
unit. See applicable "Assemble the Unit" Instructions herein.
Additional information and video assembly instructions are available
online at opticlean.carrier.com.

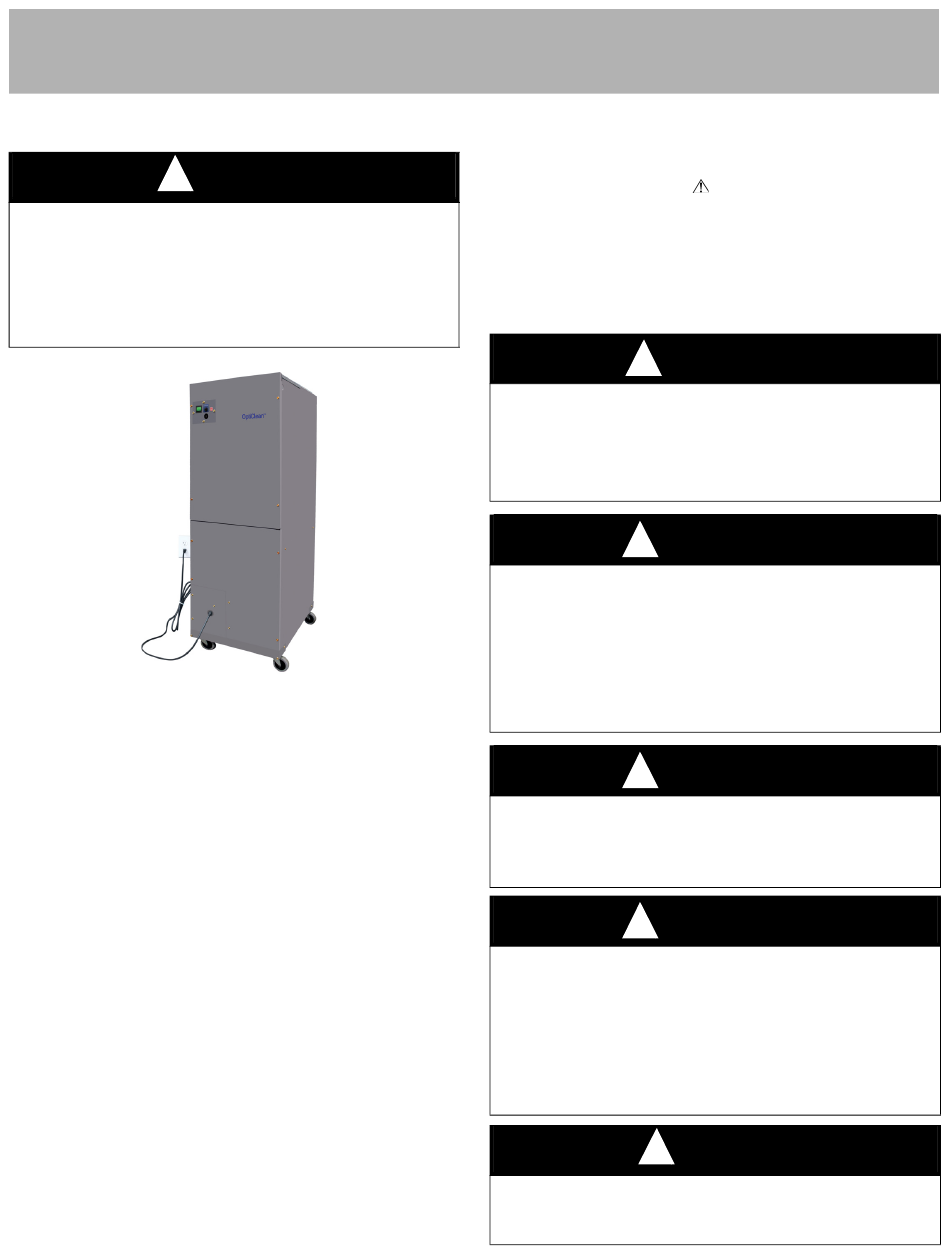

Fig. 1 – FN1AAF

Features

• 99.97% efficient long-life HEPA filter removes particles as small as
0.3 microns
• Standard MERV 7 or higher pre-filter
• Minimum 200 CFM and Maximum 1500 CFM
• Meets or exceeds ASHRAE Standard 170: Ventilation of Health Care
Facilities
• Vertical design for smaller footprint compared to many competitors,
and can be mounted and operated horizontally when necessary
• Portable and adaptable to nearly any location
• Heavy duty locking casters for easy and smooth transport
• HEPA filter rack and sealing design meet air leakage requirement
• Red lighted indicator to alert user when filters are overloaded
(generally means pre-filter requires replacement)
• Green ON/OFF switch illuminates to verify when running
• Speed selector switch on 006 & 015 sizes for various air flow ranges
• 115V operation. 10-foot long power cord with strain relief
• Galvanized steel, pre-painted cabinet is fully insulated
• Exhaust transition plate to standard 10-inch round (005/006 size) or
12-inch oval (015 size) duct included
• UL® Listed
• One year limited warranty
UL and the UL logo are trademarks of UL LLC.
Operation and Maintenance Manual
NOTICE

A Note About Safety

Any time you see this symbol
unit, be aware of the potential for personal injury. All equipment should
be installed in accordance with accepted practices and unit Installation
Instructions, and in compliance with all national and local codes. Power
should be turned off when servicing or repairing electrical components.
Extreme caution should be observed when troubleshooting electrical
components with power on. Observe all warning notices posted on
equipment and in instructions or manuals.
CUT HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care and wear
appropriate protective clothing, safety glasses and gloves when
servicing, and when handling parts.
PERSONAL INJURY / PROPERTY DAMAGE HAZARD
Failure to follow this warning could result in personal injury or
property damage.
Improper installation, adjustment, alteration, service, maintenance, or
use can cause conditions which may cause personal injury or property
damage. Consult a qualified installer or your distributor for information
or assistance. Read and follow all instructions and warnings, including
A210012GEN
labels shipped with or attached to unit before operating.
Failure to follow this warning could result in personal injury or death.
Disconnect all electrical power to the unit before removing access
panels to perform any maintenance.
PORTABLE UNIT AND METAL SHARP EDGES
HAZARD
Failure to follow this Warning could cause personal injury or death.
This unit must be used in a location where unsupervised children are
not allowed to play. The unit is portable, and areas inside and under the
unit could cause personal injury. If the unit is used in a horizontal
configuration, physical barriers must be installed around the unit to
prevent unauthorized access.
CALIFORNIA USERS
When this equipment is used in the state of California, it must be
anchored or affixed in such a way that the unit is not mobile.
in manuals, instructions and on the
CAUTION
!
WARNING
!
WARNING
!
WARNING
!
NOTICE
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OptiClean FN1AAF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Carrier OptiClean FN1AAF

  • Page 1 Observe all warning notices posted on Additional information and video assembly instructions are available equipment and in instructions or manuals. online at opticlean.carrier.com. CAUTION CUT HAZARD Failure to follow this caution may result in personal injury.
  • Page 2 99% of contaminants, and discharge cleaner air back into the room. NOTE: While removing your unit from its packaging, inspect it carefully. If damage is noted, contact your shipping carrier and file a claim. Tools Required •...
  • Page 3 NOTE: While removing your unit from its packaging, inspect it A200233A carefully. If damage is noted, contact your shipping carrier and file a Fig. 4 – Boxed Casters and Duct Transition (10-inch round shown) claim. 10. Use the included screws to attach the round or oval duct transition...
  • Page 4 FN1AAF: Operation and Maintenance Manual General Operating Instructions WARNING IMPORTANT: Always lock the casters during operation. MOVING PARTS & SHARP EDGES HAZARD IMPORTANT: Make sure there are no paper or lightweight loose Failure to follow this warning could result in personal injury. objects near the floor by the unit that could be sucked into the bottom air Do not place objects on top of the discharge plenum.
  • Page 5 FN1AAF: Operation and Maintenance Manual 10. Position the new HEPA filter into the unit with the gasket on the 6. Identify the correct Motor Tap for desired airflows and connect the filter facing up, on the discharge side of the filter. Make sure the wires according to Table HEPA filter is centered and the edges align with the brackets on the...
  • Page 6 FN1AAF: Operation and Maintenance Manual Specifications Table 4 – Electrical Specifications 005 Model 006 Model 015 Model Voltage Hertz Horsepower HP 1/3 or 3/4 Amps 12.0 † Speeds Nominal CFM 200 / 400 / 600 500 / 1000 / 1500 *.
  • Page 7 FN1AAF: Operation and Maintenance Manual Parts Table 5 – Parts Part Number - Model Size Item # Qty Description Discharge 346303-701 346303-702 Transition Plate Power Cord 346284-401 346284-401 Strain Relief 346294-401 HD46AM127 HD52AM120 Motor HD46AM126 HD42AM120 HD52AQ120 HD42AQ120 Blower Housing 342890-75103 342890-75105 Assembly...
  • Page 8 FN1AAF: Operation and Maintenance Manual Notes: ©2021 Carrier. All rights reserved. Edition Date: 2/21 Catalog No: OM-FN1AAF-05 Replaces: OM-FN1AAF-04 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
