Introduction

Introduction
The Graco M2K spray packages are intended for use
with two-component epoxy, polyurethane, and polyester
split batch (Model 24W609) materials in industrial appli-
cations. When maintained and operated properly they
can produce a ±1% ratio accuracy, while simultaneously
reducing material waste and cleanup solvent use, over
hand mixing, and hot potting applications.
Solvent
F

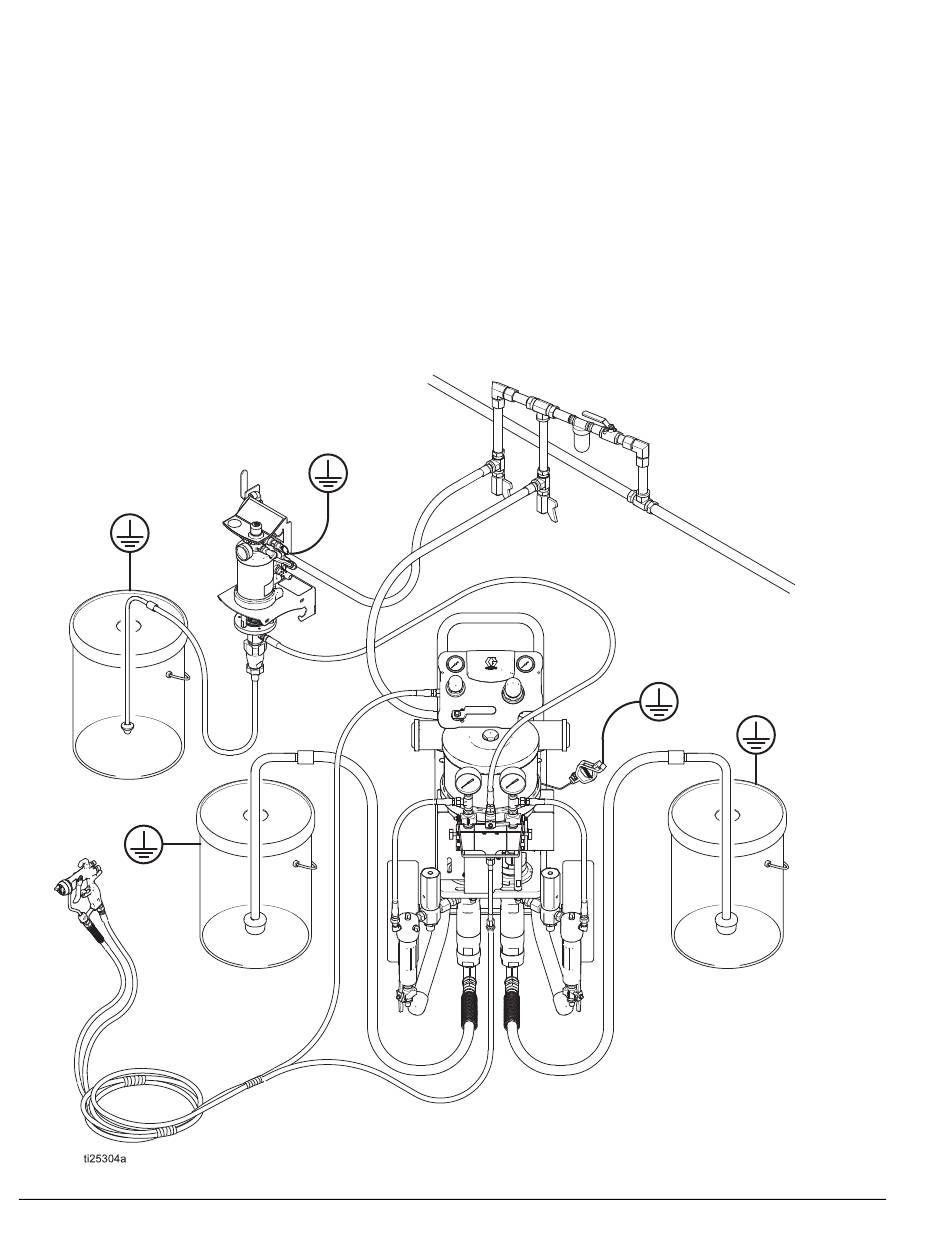

. 1 Typical System Installation

IG
8
Solvent Pump
A Supply
Typical System Installation
F . 1 is only a guide for selecting and installing system
IG
components and accessories. Contact your Graco dis-
tributor for assistance in designing a system to suit your
particular needs.
Always use Genuine Graco Parts and Accessories,
available from your Graco distributor. If you supply your
own accessories, be sure they are adequately sized and
pressure-rated for your system.
Air Supply
Solvent Flush Supply Hose
B Supply
