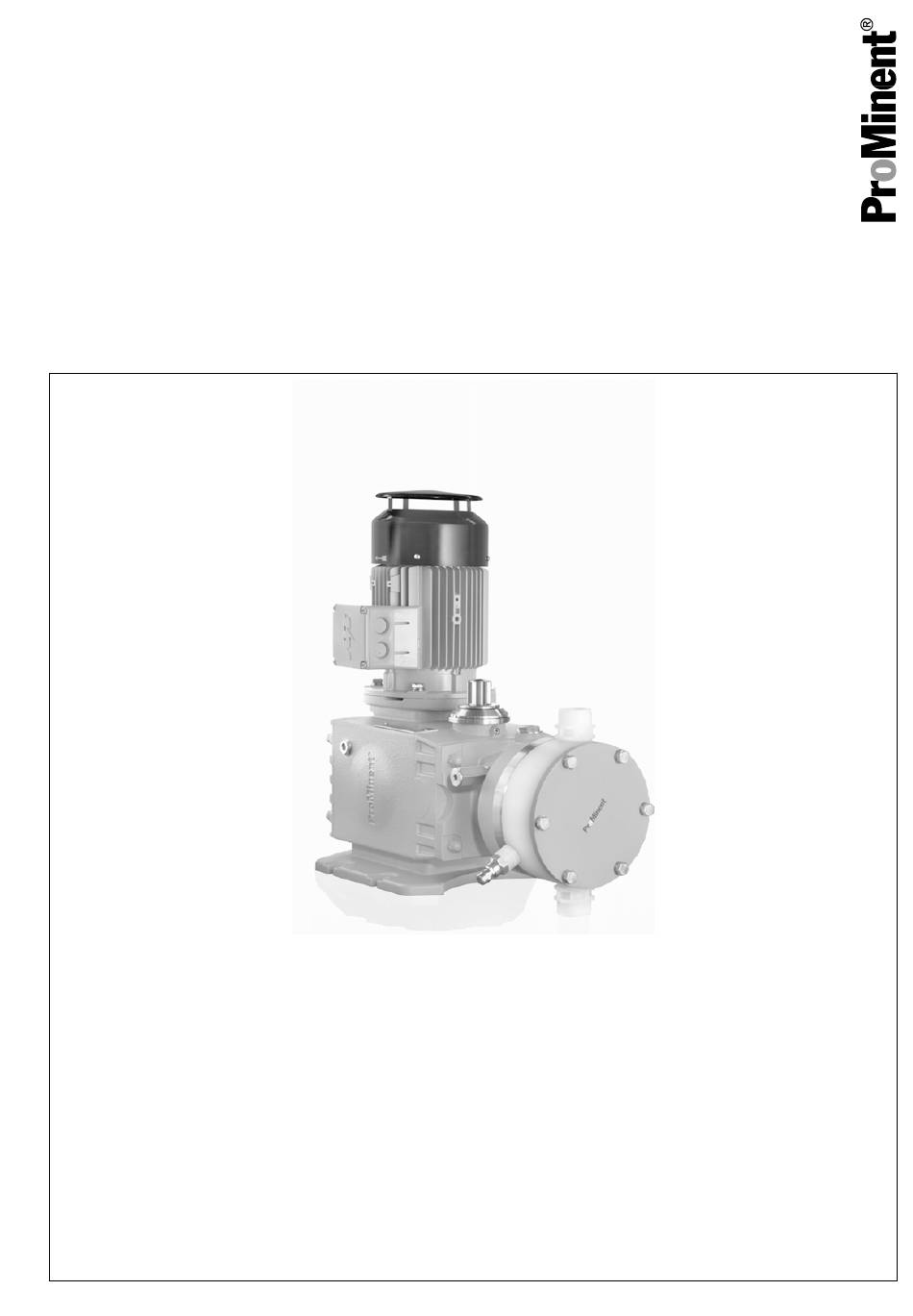

Operating instructions
Metering pump
Hydro/ 4, HP4a
EN
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
984728
Original Operating Instructions (2006/42/EC)
BA HY 015 10/14 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hydro HP4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProMinent Hydro HP4

Summary of Contents for ProMinent Hydro HP4

  • Page 1 " ром им ех" - дистрибьютор и сервисный п ртнер ProMinent www.promhimtech.ru / zakaz@promhimtech.ru Operating instructions Metering pump Hydro/ 4, HP4a Please carefully read these operating instructions before use. · Do not discard. The operator shall be liable for any damage caused by installation or operating errors.
  • Page 2 Supplemental instructions Supplementary information Read the following supplementary information in its entirety! Should you already know this information, you will benefit more from referring to the operating instructions. The following are highlighted separately in the document: Enumerated lists Fig. 1: Please read! Operating guidelines ð...

  • Page 3: Table Of Contents

    Table of contents Table of contents Identity code..................5 Safety Chapter................. 8 Storage, transport and unpacking..........15 Overview of device / control elements........... 17 Functional description..............18 Assembly..................19 Installation..................23 7.1 Installation, Hydraulic............23 7.1.1 Basic installation notes............26 7.2 Installation, Electrical............
  • Page 4 Table of contents 14.6 General................76 Dimensions..................77 Earthing drawing................92 EC Declaration of Conformity for Hydro Machines ....... 93 EC Declaration of Conformity for Machines ATEX HP4 without heating cartridge................94 EC Declaration of Conformity for ATEX HP4 machines with heating cartridge................

  • Page 5: Identity Code

    (standard) With valve spring Hydraulic connector Standard threaded connector (in line with technical data) With DIN ISO flange With ANSI flange Design 0 With ProMinent ® logo (standard) 1 Without ProMinent logo ® 2 With ProMinent ®...
  • Page 6 Identity code HP4a Hydro/ 4, version a 3-phase, 230 V/400 V, 50 Hz, (Exe, Exde), 1.1 kW 3-phase, 265 V/440 V, 60 Hz, (Exe, Exde), 1.1 kW 3-phase, variable speed control motor, 230/400 V, 1.5 kW V(0) Variable speed control motor with integrated frequency converter 1-phase, 230 V, 50/60 Hz V(2) Variable speed control motor with integrated frequency converter...
  • Page 7 Identity code Type Capacity Type Capacity Type Capacity Type Capacity 250350 160400 100800 071230 1230 250400 160625 101000 1000 071400 1400 Maximum back pressure with TTT, PPT and PCT material versions: 10 bar!

  • Page 8: Safety Chapter

    Observe the general limitations with regard to viscosity limits, chem‐ ical resistance and density - refer also to the ProMinentResistance List (in the Product Catalogue or at www.prominent.com)! All other uses or modifications are prohibited.
  • Page 9 Safety Chapter Never operate pumps without the relevant nameplate (and the respec‐ tive EC Declaration of Conformity) for pumps for use in premises at risk from explosion in premises at risk from explosion. The pump is not intended for the metering of gaseous media and solids.
  • Page 10 Service the Service department refers to service technicians, who have received proven training and have been authorised by ProMinent or ProMaqua to work on the system.
  • Page 11 Safety Chapter Safety information CAUTION! These operating instructions include notes and quotes from German guidelines relating to the system operator's scope of responsibility. This information does not discharge the oper‐ ator from his responsibility as an operator and is intended only to remind him or make him aware of specific problem areas.
  • Page 12 An unsuitable feed chemical can damage the wetted parts of the pump. – Take into account the resistance of the wetted materials when selecting the feed chemical - see the ProMinent Product Catalogue or visit our homepage. WARNING! Danger of injury to personnel and material damage The pump must only be opened at those points required to be opened by these operating instructions.
  • Page 13 Safety Chapter Information in the event of an emergency In the event of an electrical accident, disconnect the mains cable from the mains or press the emergency cut-off switch fitted on the side of the system! If feed chemical escapes, also depressurise the hydraulic system around the pump as necessary.
  • Page 14 Safety Chapter Create an EC Declaration of Conformity Adapt the operating instructions, if necessary Correctly install the motor With ATEX motors: perform an ignition hazard assessment Sound pressure level Sound pressure level LpA < 75 dB according to EN ISO 20361 at maximum stroke length, maximum stroke rate, maximum back pressure (water)

  • Page 15: Storage, Transport And Unpacking

    WARNING! The transporting of pumps which have been used with radio‐ active feed chemicals is forbidden! They will also not be accepted by ProMinent! WARNING! Only return the metering pump for repair in a cleaned state and with a flushed liquid end - refer to the chapter "Decom‐...
  • Page 16 Storage, transport and unpacking Ambient conditions - refer to "Technical Data" chapter.

  • Page 17: Overview Of Device / Control Elements

    Overview of device / control elements Overview of device / control elements P_HY_0043_SW Fig. 3: Single head and double head version, Hydro/ 4 Power end Gear bleeding plug Hydraulic end Oil drain stopper Liquid End Oil drainage plug Stroke adjustment dial Stroke sensor (optional) Bleed valve Diaphragm rupture sensor...

  • Page 18: Functional Description

    Functional description Functional description Pump The metering pump is an oscillating diaphragm pump, the stroke length of which can be adjusted. Hydraulic end The hydraulic end has a bleed valve (2), a fixed pressure limitation valve (3) and optionally an overpressure signaller (1). The bleed valve (2) con‐ tinuously bleeds the hydraulic end.

  • Page 19: Assembly

    Assembly Assembly Compare the dimensions on the dimension sheet with – those on the pump. Motor installation - with designs without a motor Select a suitable motor - it should correspond to the data of one of the motors from the "Motor data" table - refer to "Technical data" chapter.
  • Page 20 Assembly P_HY_0060_SW Fig. 6: Correct heigh of the clutch claw on the motor shaft Hydro HP4 Size Motor flange 143 / 145TC 2-1/8" 53,975 B5 / 250 Base WARNING! Danger of electric shock If water or other electrically conducting liquids penetrate into the drive housing, in any other manner than via the pump's suction connection, an electric shock may occur.
  • Page 21 Assembly Space requirement WARNING! Motor may overheat If the necessary cooling air supply is not guaranteed, the motor may overheat. In an area at risk from explosion, it could trigger an explosion. – Maintain sufficient clearance between the air intake opening and the walls.
  • Page 22 Assembly Fastening Capacity too low Vibrations can disrupt the liquid end valves. Secure the metering pump so that no vibrations can – occur. P_MOZ_0015_SW Fig. 10 Take the dimensions (m) for the fixing holes from the appropriate dimension or data sheets. Use sufficiently strong bolts to fix the pump to the base.

  • Page 23: Installation

    Installation Installation CAUTION! Danger of injury to personnel and material damage Disregarding the technical data during installation can lead to personal injuries or damage to property. – Observe the technical data - refer to the "Technical Data" chapter and, where applicable, to the operating instructions for the accessories.
  • Page 24 Installation WARNING! Warning of feed chemical reactions to water Feed chemicals that should not come into contact with water may react to residual water in the liquid end that may origi‐ nate from works testing. – Blow the liquid end dry with compressed air through the suction connector.
  • Page 25 They seal the connections between grooved pump P_SI_0021 valves and ProMinent grooved inserts - see Fig. 12. Fig. 12: Moulded composite seals with – However, in the event that a smooth insert is used (e.g.

  • Page 26: Basic Installation Notes

    Installation CAUTION! Warning of feed chemical spraying around PTFE seals, which have already been used / compressed, can no longer reliably seal a hydraulic connection. – New, unused PTFE seals must always be used. P_SI_0022 Fig. 13: Flat elastomer seal for a smooth CAUTION! insert Danger due to incorrect use of the pressure relief valve...
  • Page 27 Installation Shorten the return line so that it does not dip into the feed chemical in the storage tank. P_MOZ_0043_SW Fig. 14: (A) standard installation, (B) with pulsation damper Main line Storage tank Legend for hydraulic diagram Symbol Explanation Symbol Explanation Metering pump Foot valve with filter meshes...

  • Page 28: Installation, Electrical

    This can either be in the form of a Declaration of Conformity from the supplier (ProMinent) for the entire unit or, with the supply of indi‐ vidual components, with the operator's explosion protec‐ tion document.
  • Page 29 Installation WARNING! Danger of electric shock This pump is equipped with a protective earth conductor, to reduce the risk arising from an electric shock. – Connect the PE conductor to "earth" with a clean and permanent electrical connection. WARNING! Danger of electric shock A mains voltage may exist inside the motor or electrical ancil‐...
  • Page 30 Installation WARNING! Only motors with a frequency converter: Danger of electric shock There remains a risk of an electric shock on conducting parts of the motor with an integrated frequency converter and on the lines themselves for 3 minutes after the mains voltage has been switched off.
  • Page 31 Installation Motor data sheets, special motors, special motor flanges, external fans, temperature monitoring Motor data sheets can be requested for the motors. – With motors other than those with identity code specifi‐ – cations "S", "M" or "N": Pay special attention to the oper‐ ating instructions for the motors.
  • Page 32 Installation CAUTION! Danger resulting from unnoticed diaphragm rupture If the pump has been ordered with an electric diaphragm rup‐ ture sensor, it should also be electrically installed. – Install the enclosed diaphragm rupture sensor electri‐ cally on a suitable monitoring device. CAUTION! Additional damages with ruptured diaphragm If damage is caused or if the hydraulic oil mixes with the feed...
  • Page 33 Checking of the seals – Permitted barriers – Configuration of and I – Permitted connector plugs WARNING! Never reprogram the pressure switch without the written authorisation of ProMinent GmbH, Heidelberg. Plug assignment Cable colour Process connector brown white blue P_HY_0029_SW black Out 1 Fig.
  • Page 34 Installation Stroke sensor (optional) Connect the stroke sensor to a suitable monitoring device as per the details in the "Technical Data" chapter - also observe its technical data! The monitor / feed supply installed by the customer should be able to evaluate the current variations of the Namur sensor to indicate a diaphragm rupture! WARNING!

  • Page 35: Decommissioning And Disposal

    Decommissioning and Disposal Decommissioning and Disposal Safety information WARNING! ATEX pump in areas at risk from explosion – Have a suitably competent person check whether the appropriate installation information from the "Installation " chapter has been implemented correctly. – Have a "recognised competent person" check the elec‐ trical installation and in particular the intrinsically safe electric circuit.
  • Page 36 Decommissioning and Disposal WARNING! Only motors with a frequency converter: Danger of electric shock There remains a risk of an electric shock on conducting parts of the motor with an integrated frequency converter and on the lines themselves for 3 minutes after the mains voltage has been switched off.
  • Page 37 Decommissioning and Disposal CAUTION! If damage can be caused or if the hydraulic oil mixes with the feed chemical, only restart the pump following a diaphragm rupture once the diaphragm has been replaced. Testing the overpressure sensor Create an overpressure in the discharge line to check whether the over‐ pressure sensor triggers at the correct pressure.

  • Page 38: Bleeding The Liquid End

    Decommissioning and Disposal Use the safety relief valve CAUTION! Danger due to incorrect use of the safety relief valve The safety relief valve can only protect the motor and the gear, only against illegal positive pressure that is monitored by the metering pump itself. It cannot protect the system against positive pressure.

  • Page 39: Calibrating The Stroke Control Drive (Optional)

    Fig. 17: Tapping the valve set disc 8.2 Calibrating the Stroke Control Drive (Optional) The stroke control drive is calibrated to the capacity ordered. Please con‐ tact ProMinent in the event that you wish the stroke control drive to be cali‐ brated to another capacity.

  • Page 40: Maintenance

    "experienced personnel with the requisite knowl‐ edge". – These measures constitute the minimum protective measurements stipulated by ProMinent. It is the duty of the operator to eliminate any other dangers identified by appropriate measures. WARNING! ATEX pump in area at risk from explosion Static electricity can cause ignition sparks.
  • Page 41 Maintenance WARNING! Fire hazard with flammable media Only with combustible media: These may start to burn when combined with oxygen. – During filling and draining of the liquid end, an expert must ensure that feed chemical does not come into con‐ tact with oxygen.
  • Page 42 Check the pump installation for: Leaks Abnormal noises or squeaking Abnormal temperatures Abnormal odours Abnormal vibrations Other peculiarities WARNING! In areas at risk from explosion: Stop the pump immediately and rectify anything unusual. You may have to contact ProMinent Service.
  • Page 43 If the clutch is OK, you can then increase the maintenance interval to 4000 hours. If the clutch is not clearly OK: Call ProMinent Service. ATEX pump only: Check the seals of the EDS 4448 pressure switch Technical personnel at regular intervals (depending on the climatic conditions and the feed chemical) in relation to their serviceability and replace if neces‐...
  • Page 44 Maintenance Interval Maintenance work Personnel ATEX design only: Check the heating cartridge and the protective Customer Service depart‐ temperature limiter for externally visible damage and/or corrosion on ment the housing and connection parts. Immediately have damaged parts replaced with genuine spare parts by the manufacturer. After approx.
  • Page 45 Maintenance P_HY_0059_SW Fill with hydraulic oil With the double-head versions, perform the following work simultaneously on both dosing heads. Set the stroke adjustment dial (1) to "100 %" and unscrew the bleed valve (2). Slowly fill hydraulic oil through the opening for the gearbox vent stopper (3) until the oil inspection window (3) is 1/3 covered.

  • Page 46: Repairs

    Repairs Repairs Safety information WARNING! ATEX pump in areas at risk from explosion – Generally check the proper operation of the system, par‐ ticularly of the power end and bearings, by regular moni‐ toring (for leaks, noises, temperatures, smell ..). WARNING! ATEX pump in area at risk from explosion Static electricity can cause ignition sparks.

  • Page 47: Replacing The Diaphragm

    Repairs WARNING! Risk of fingers being crushed Under unfavourable conditions, the stroke axle or displace‐ ment body can cause crushing of the fingers. – Disconnect the pump from the mains power supply and ensure that it cannot be switched on again by unauthor‐ ised persons.
  • Page 48 Repairs CAUTION! A diaphragm rupture may remain unnoticed Should the multi-layer diaphragm be treated incorrectly, the diaphragm rupture warning system may fail. – Take the multi-layer diaphragm out of the packaging just before installing it. – Never allow dirt to come into contact with the multi-layer diaphragm.
  • Page 49 Repairs P_HY_0033_SW Fig. 18 WARNING! Warning of injury to eyes The very strong spring (3) and the spring collar (5) on the diaphragm anchor (6) may spring away when loos‐ ening the safety collar (4). – Use the mounting aid (8) to remove! –...
  • Page 50 Repairs Position the dosing head with the bolts so that the suction connector is pointing downwards - diaphragm rupture sensor must be at the bottom. First gently tighten the dosing head bolts and then tighten cross‐ Ä ‘Tightening torques’ on page 50 . wise, tightening torque - Ä...

  • Page 51: Repair The Diaphragm Rupture Sensor

    Repairs 10.2 Repair the Diaphragm Rupture Sensor WARNING! Warning of feed chemical Following a diaphragm rupture, there will be additional feed chemical in the diaphragm rupture sensor and the feed channel in the dosing head. – Protect yourself against the metering chemical if using hazardous or unknown feed chemicals.
  • Page 52 Repairs If the diaphragm rupture sensor does not operate clearly and reli‐ ably, then a new diaphragm rupture sensor must be used without fail. ATEX version Checking the diaphragm rupture sensor When changing the diaphragm, unscrew the diaphragm rupture sensor from the dosing head. Check that the monitor does not indicate a diaphragm rupture: Using a blunt insulating probe (Ø...

  • Page 53: Calibrating The Capacity

    Repairs 10.3 Calibrating the Capacity It is only worth calibrating the capacity if you wish to carry out particularly precise metering at a completely different back pressure. The capacity of the hydraulic diaphragm metering pump is only to a min‐ imal extent dependent on the back pressure.

  • Page 54: Replacing The Power End Bearing

    Carefully tighten the screw (3) in the stroke adjustment dial and replace the cap (4). API versions only: Press the metal cap onto the stroke adjustment dial. 10.4 Replacing the Power End Bearing Only have ProMinent Service replace the power end bearing!

  • Page 55: Troubleshooting

    Troubleshooting Troubleshooting Safety information WARNING! ATEX pump in areas at risk from explosion – Generally ensure proper operation (no leaks, unusual noises, high temperatures, unusual smell ...) especially of the power end and bearings. – Do not allow the pump to run hot due to a lack of oil! With lubricated metering pumps, regularly check for the presence of lubricant, for example by checking the liquid level, visual leak control etc.
  • Page 56 CAUTION! Danger of personnel injury and material damage The use of untested third party parts can result in personnel injuries and material damage. – Only fit parts to metering pumps, which have been tested and recommended by ProMinent.
  • Page 57 Troubleshooting CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system. – Disconnect the pump from the mains power supply and ensure that it cannot be switched on again by unauthor‐...
  • Page 58 The power end motor is very The discharge line is Technical per‐ Rectify any constriction of the dis‐ hot. seriously constricted. charge line. sonnel Have the safety relief valve checked. All other faults. Other causes. Call ProMinent Service.

  • Page 59: Decommissioning And Disposal

    Decommissioning and Disposal Decommissioning and Disposal 12.1 Decommissioning WARNING! Fire hazard with flammable media Only with combustible media: These may start to burn when combined with oxygen. – During filling and draining of the liquid end, an expert must ensure that feed chemical does not come into con‐ tact with oxygen.

  • Page 60: Disposal

    Decommissioning and Disposal CAUTION! Warning of feed chemical spraying around Feed chemical can spray out of the hydraulic components if they are manipulated or opened due to pressure in the liquid end and adjacent parts of the system. – Disconnect the pump from the mains power supply and ensure that it cannot be switched on again by unauthor‐...
  • Page 61 Decommissioning and Disposal WARNING! Danger due to spring tension There is a spring under high tension below the hydraulic cap under the diaphragm mounting plate. – Only remove the hydraulic cap in line with the "Hydro repair and configuration instructions." CAUTION! Environmental hazard due to hydraulic oil The pump contains hydraulic oil, which can cause damage to...

  • Page 62: Technical Data

    Technical Data Technical Data Only with "M - modified" design: WARNING! Risk of personal injuries Please observe the ”Supplement for modified version“ at the end of the chapter! It replaces and supplements the technical data! 13.1 Performance Data HP4a operating at 50 Hz Type Minimum pump capacity at maximum back Maximum...

  • Page 63: Metering Reproducibility

    Technical Data The suction lift / suction pressure applies to filled suction lines and filled liquid end - when installed correctly. HP4a operating at 60 Hz Type Minimum pump capacity at maximum back Maximum Suction lift Permis‐ Connector size pressure stroke rate sible pri‐...

  • Page 64: Viscosity

    Unit no valve springs 0 ... 200 mPas with valve springs 200 ... 500 mPas 13.4 Weight For pumps with a standard motor. Hydro HP4 SST Design Weight approx. Simplex Single head Duplex Single head Duplex Double head Triplex Single head...
  • Page 65 Technical Data Data Value Unit Ambient temperature in operation -10 ... +40 °C ("Standard" version, for drive): Ambient temperature in operation ("Low -25 ... +40 °C temperature" version, for drive): Ambient temperature in operation ("Low -20 ... +40 °C temperature Zone 2" version, for drive): * Only with heating heating cartridge PP liquid end Data...
  • Page 66 Technical Data TT liquid end Data Value Unit Max. temperature long-term at max. oper‐ 90 °C ating pressure Max. temperature for 15 min at max. 2 bar 120 °C Minimum temperature -10 °C HCT - ATEX liquid end Data Value Unit Max.

  • Page 67: Air Humidity

    Technical Data 13.6.2 Air humidity Data Value Unit Maximum air humidity *: 95 % rel. humidity** *non-condensing (according to DIN IEC 60068-2-30) 50 % rel. humidity with actuator 13.6.3 Installation Height Data Value Unit Maximum installation height*: 1000 m above sea level * Install higher at your own risk.

  • Page 68: Diaphragm Rupture Sensor

    Technical Data Identity Phase, protec‐ Rated voltage Mains supply Rated output Manufacturer's Remarks code speci‐ tion frequency designation fication 3 phase, 254-277 V / 60 Hz 1.1 kW DEx 90 S/4K II2GEExeIIT3 440-480 V 3 phase, 254-277 V / 60 Hz 1.1 kW DEx 90 S/4K with PTC, speed...

  • Page 69: Pressure Limitation Valve (Hp4)

    Technical Data Data Value Unit Rated voltage * 8 VDC Power consumption - active surface > 3 mA uncovered Power consumption - active surface cov‐ < 1 mA ered Rated switching distance 1.5 mm * Ri ~ 1 kΩ Cable colour Polarity blue brown...

  • Page 70: Stroke Sensor

    Technical Data Type identification Type iden‐ Feature Property tification EDS 4 Designation of the pressure EDS 4 switch Accuracy: Thin film/relative pressure Mechanical connector: G ¼ A DIN 3852, external thread Electrical connection: Unit plug, M12x1, 5-pin 0060 Measuring range: specification in bar Control output: programmable...

  • Page 71: Heating Cartridge

    Technical Data Cable colour Polarity blue brown Install the sensor according to the "Installation, Electrical" chapter. Observe its documentation. Name of sensor: NJ1,5-8GM-N. 13.13 Heating cartridge Technical data - see enclosed operating instructions: "ELMESS operating instructions liquid heater type NAHF11 ...; HRHF11". 13.14 Protective temperature limiter (ATEX only) Technical data - see enclosed operating instructions: "ELMESS protective temperature limiter II (2) G [EEx ib] IIC/IIB II (2) D [Ex...

  • Page 72: Sound Pressure Level Hp4A

    Technical Data 13.16 Sound pressure level HP4a Sound pressure level Sound pressure level LpA < 75 dB in accordance with EN ISO 20361:2010-10 at maximum stroke length, maximum stroke rate, maximum back pressure (water) 13.17 Supplement for modified versions (With Identcode specification "Version": "M" - "modified") Technical data Technical data of pumps in the modified version can deviate from those of the standard pumps.

  • Page 73: Ordering Information

    Ordering Information Ordering Information 14.1 Exploded view of the drawing P_HY_0017_SW Fig. 23: Exploded view of Hydro liquid end Numbered positions = PVT set of spare parts - range for supply. Technical changes reserved. Seals (Set) Suction connection assy. Valve balls Diaphragm Pressure connection assy.
  • Page 74 Ordering Information Spare parts kits Hydro/ 4 for types: 250130, 250190, 250250, 250350, 250400: for liquid end Material version Part no. FMH 400 - DN 25 1043763 PVT with valve 1023057 1040812 SST with valve 1040813 1040860 HCT with valve 1022716 for types: 160210, 160300, 160400, 160550, 160625: for liquid end...

  • Page 75: Diaphragms

    Ordering Information 14.3 Diaphragms Metering diaphragm PTFE / 1.4404 for liquid end Pump type Part no. FMH 400 250130, 250190, 250250, 250350, 250400 1040808 FMH 625 160210, 160300, 160400, 160550, 160625 1040809 FMH 1000 100330, 100480, 100635, 100880, 101000 1040810 FMH 1400 0704650, 070670, 070890, 071230, 071400 1040811...

  • Page 76: General

    Ordering Information 14.6 General Hydraulic oil The pump uses an hydraulic oil that lubricates the gear at the same time. Manufacturer Name Viscosity class Part no. Standard Mobil Mobilube 1 SHC * 75W - 90 1005823 Foodsafe Mobil SHC Cibus * 1007610 * or comparative hydraulic oil Seals...

  • Page 77: Dimensions

    Dimensions Dimensions Compare the dimensions on the dimension sheet and – pump. All dimensions are in mm. – Dimension sheet for Hydro HP4 (HP4a single head pump) Ø12 ØF P_HY_0038_SW Fig. 24: Illustration not strictly binding. Liquid end Type 250130...
  • Page 78 Exde motor Motor with fre‐ Exde motor with Motor, control‐ motor quency con‐ frequency con‐ lable verter verter Dimension sheet for Hydro HP4 (HP4a double head pump) P_HY_0049_SW 61_02-101_00_33-7Ax05_B2 Fig. 25: Illustration not strictly binding. Liquid end Type 250130 160210 100330...
  • Page 79 Dimensions Liquid end Type 250130 160210 100330 070465 250190 160300 100480 070670 250250 160400 100635 070890 250350 160550 100880 071230 250400 160625 101000 071400 SS/HC SS/HC/PV SS/HC/PV SS/HC/PV DN25, G1 1/2 DN25, G1 1/2 DN32, G2 DN40, G2 1/4 Standard Exe motor Exde motor Motor with fre‐...
  • Page 80 Dimensions Dimension sheet Hydro HP4 (duplex single head pump) P_HY_0050_SW 61_02-101_00_33-7Ax05_B3 Fig. 26: Illustration not strictly binding. Liquid end Type 250130 160210 100330 070465 250190 160300 100480 070670 250250 160400 100635 070890 250350 160550 100880 071230 250400 160625 101000 071400...
  • Page 81 Dimensions Dimension sheet for Hydro HP4 (HP4a duplex double head pump) P_HY_0051_SW 61_02-101_00_33-7Ax05_B4 Fig. 27: Illustration not strictly binding. Liquid end Type 250130 160210 100330 070465 250190 160300 100480 070670 250250 160400 100635 070890 250350 160550 100880 071230 250400 160625...
  • Page 82 Dimensions Dimension sheet for Hydro HP4 (HP4a tri‐ plex pump)
  • Page 83 Dimensions P_HY_0052_SW 61_02-101_00_33-7Ax05_B5 Fig. 28: Illustration not strictly binding.
  • Page 84 Dimensions Liquid end Type 250130 160210 100330 070465 250190 160300 100480 070670 250250 160400 100635 070890 250350 160550 100880 071230 250400 160625 101000 071400 SS/HC SS/HC/PV SS/HC/PV SS/HC/PV SS/HC SS/HC/PV SS/HC/PV SS/HC/PV SS/HC/PV DN25, G1 1/2 DN25, G1 1/2 DN32, G2 DN40, G2 1/4 Standard Exe motor...
  • Page 85 Dimensions Dimension sheet for Hydro HP4 (HP4a with ATEX FC) P_HY_0053_SW 61_02-101_00_33-7Ax05_B6a Fig. 29: Illustration not strictly binding.
  • Page 86 Dimensions Dimension sheet for Hydro HP4 (HP4a without motor with motor flange) P_HY_0054_SW 61_02-101_00_33-7Ax05_B6b Fig. 30: Illustration not strictly binding. Size Motor flange 6.575" 5.875" 4.5" 0.433" 0.875" 2-1/8" 0.197" 3/16" 0.964" 14.21" (H7) 145TC 149.23 22.23 53,975 4.7625 24.49 114.3...
  • Page 87 Dimensions Dimension sheet for Hydro HP4 (HP4a without motor without motor flange) P_HY_0058_SW 61_02-101_00_33-7Ax05_B6c Fig. 31: Illustration not strictly binding.
  • Page 88 Dimensions Dimension sheet for Hydro HP4 (HP4a single pump with servomotor) P_HY_0056_SW 61_02-101_00_33-7Ax05_B7a Fig. 32: Illustration not strictly binding. Liquid end Type 250130 160210 100330 070465 250190 160300 100480 070670 250250 160400 100635 070890 250350 160550 100880 071230 250400 160625...
  • Page 89 Dimensions Dimension sheet for Hydro HP4 (HP4a double pump with servomotor) P_HY_0057_SW 61_02-101_00_33-7Ax05_B7b Fig. 33: Illustration not strictly binding. Liquid end Type 250130 160210 100330 070465 250190 160300 100480 070670 250250 160400 100635 070890 250350 160550 100880 071230 250400 160625...
  • Page 90 Dimensions Liquid end Type 250130 160210 100330 070465 250190 160300 100480 070670 250250 160400 100635 070890 250350 160550 100880 071230 250400 160625 101000 071400 SS/HC/PV SS/HC/PV SS/HC SS/HC/PV SS/HC/PV SS/HC/PV Valve DN25, G1 1/2 DN25, G1 1/2 DN32, G2 DN40, G2 1/4 Standard Exe motor Exde motor...
  • Page 91 Dimensions Dimension sheet for Hydro HP4 (HP4a with heating cartridge) ATEX P_HY_0055_SW 61_02-101_00_33-7Ax05_B9.svg Fig. 34: Illustration not strictly binding.

  • Page 92: Earthing Drawing

    Earthing drawing Earthing drawing Simplex single head Hydro HP4 with actuator and heating cartridge P_HY_0044_SW Motor Actuator Heating cartridge (optional)

  • Page 93: Ec Declaration Of Conformity For Hydro Machines

    In accordance with DIRECTIVE 2006/42/EC OF THE EUROPEAN PAR‐ LIAMENT AND OF THE COUNCIL, Appendix I, BASIC HEALTH AND SAFETY REQUIREMENTS, section 1.7.4.2. C. ProMinent Dosiertechnik GmbH Im Schuhmachergewann 5 - 11 D - 69123 Heidelberg, hereby declare that the product specified in the following, complies with...

  • Page 94: Ec Declaration Of Conformity For Machines Atex Hp4 Without Heating Cartridge

    In accordance with DIRECTIVE 2006/42/EC OF THE EUROPEAN PAR‐ LIAMENT AND OF THE COUNCIL, Appendix I, BASIC HEALTH AND SAFETY REQUIREMENTS, section 1.7.4.2. C. ProMinent GmbH Im Schuhmachergewann 5 - 11 D - 69123 Heidelberg, hereby declare that the product specified in the following, complies with...

  • Page 95: Ec Declaration Of Conformity For Atex Hp4 Machines With Heating Cartridge

    In accordance with DIRECTIVE 2006/42/EC OF THE EUROPEAN PAR‐ LIAMENT AND OF THE COUNCIL, Appendix I, BASIC HEALTH AND SAFETY REQUIREMENTS, section 1.7.4.2. C. ProMinent GmbH Im Schuhmachergewann 5 - 11 D - 69123 Heidelberg, hereby declare that the product specified in the following, complies with...

  • Page 96: Ec Declaration Of Conformity For Atex Hp4 Machines Without Heating Cartridge

    In accordance with DIRECTIVE 2006/42/EC OF THE EUROPEAN PAR‐ LIAMENT AND OF THE COUNCIL, Appendix I, BASIC HEALTH AND SAFETY REQUIREMENTS, section 1.7.4.2. C. ProMinent GmbH Im Schuhmachergewann 5 - 11 D - 69123 Heidelberg, hereby declare that the product specified in the following, complies with...

  • Page 97: Ec Declaration Of Installation For Atex Hp4 Machines With Heating Cartridge

    In accordance with DIRECTIVE 2006/42/EC OF THE EUROPEAN PAR‐ LIAMENT AND OF THE COUNCIL, Appendix I, BASIC HEALTH AND SAFETY REQUIREMENTS, section 1.7.4.2. C. ProMinent GmbH Im Schuhmachergewann 5 - 11 D - 69123 Heidelberg, hereby declare that the product specified in the following, complies with...

  • Page 98: Diagrams For Adjusting The Capacity

    Diagrams for adjusting the capacity Diagrams for adjusting the capacity Hydro/ 4 HP4a H C (l/h) C (l/h) 250400 160625 250350 160550 250250 160400 250190 160300 250130 160210 s [%] s [%] C (l/h) C (l/h) 250400 160625 160550 250350 160400 250250 160300...
