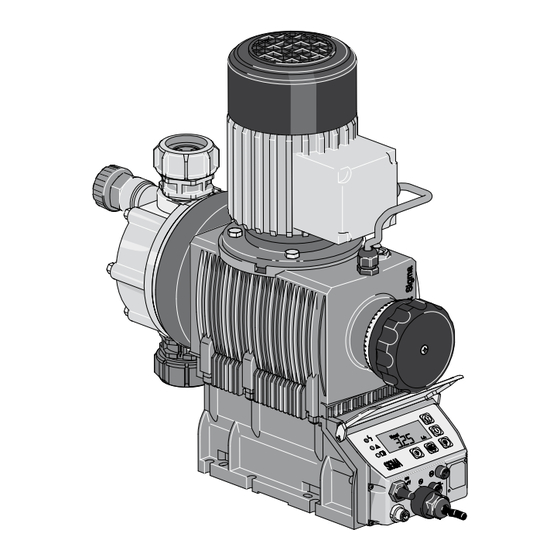

ProMinent Sigma 2 S2Ca Operating Instructions Manual

Diaphragm motor-driven metering pump control
Hide thumbs
Table of Contents

Advertisement

Quick Links

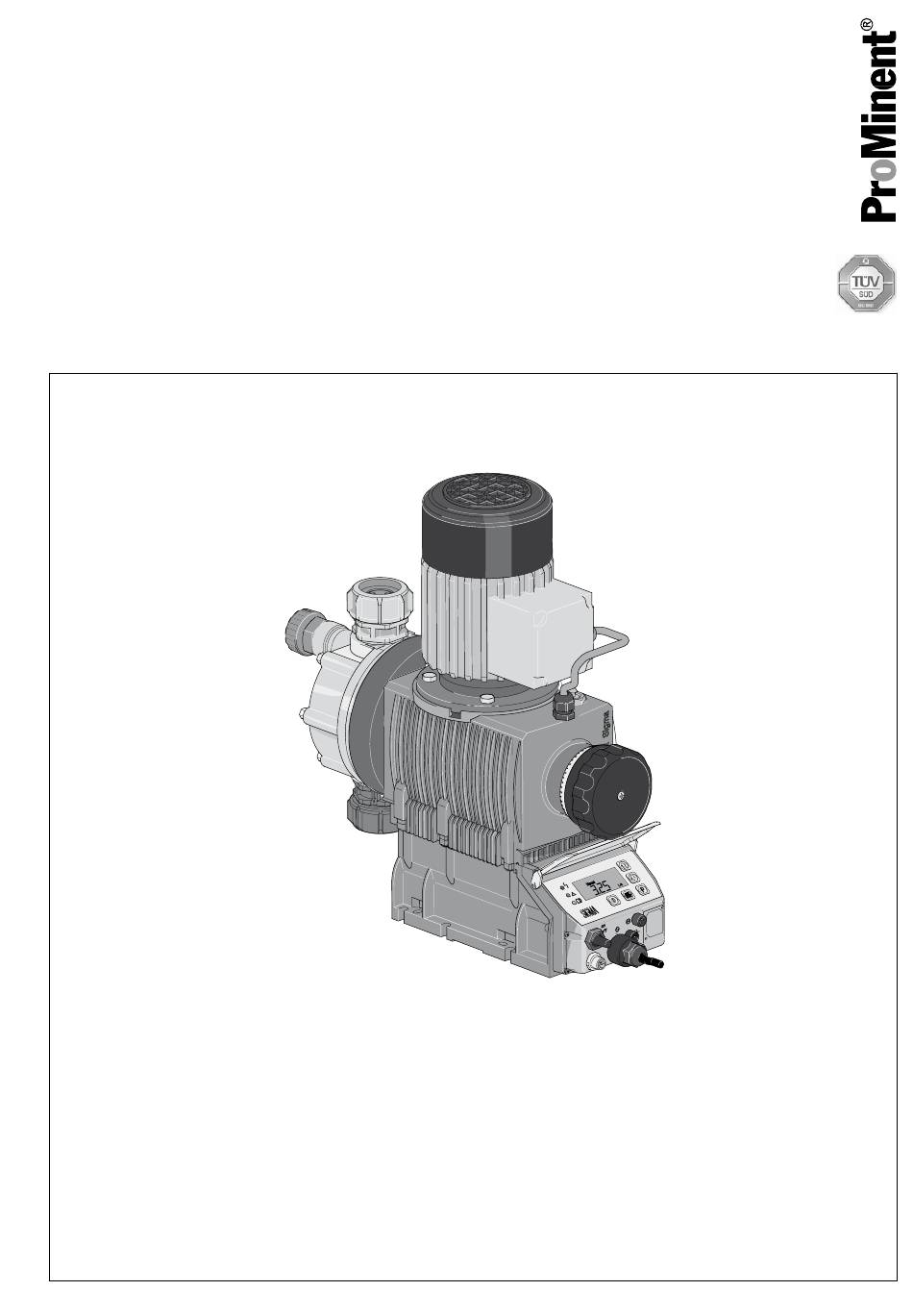

Operating instructions
Diaphragm Motor-Driven Metering Pump
Sigma/ 2 Control Type S2Ca
Two sets of operating instructions are required for the safe, correct and proper operation of the metering pumps: The
product-specific operating instructions and the "General Operating Instructions for ProMinent
pumps and hydraulic accessories".
Both sets of operating instructions are only valid when read together.
Please carefully read these operating instructions before use! · Do not discard!
The operator shall be liable for any damage caused by installation or operating errors!
Part no. 985894
PK_2_115
Technical changes reserved.
Original Operating Instructions (2006/42/EC)
®
motor-driven metering
BA SI 040 05/11 EN
