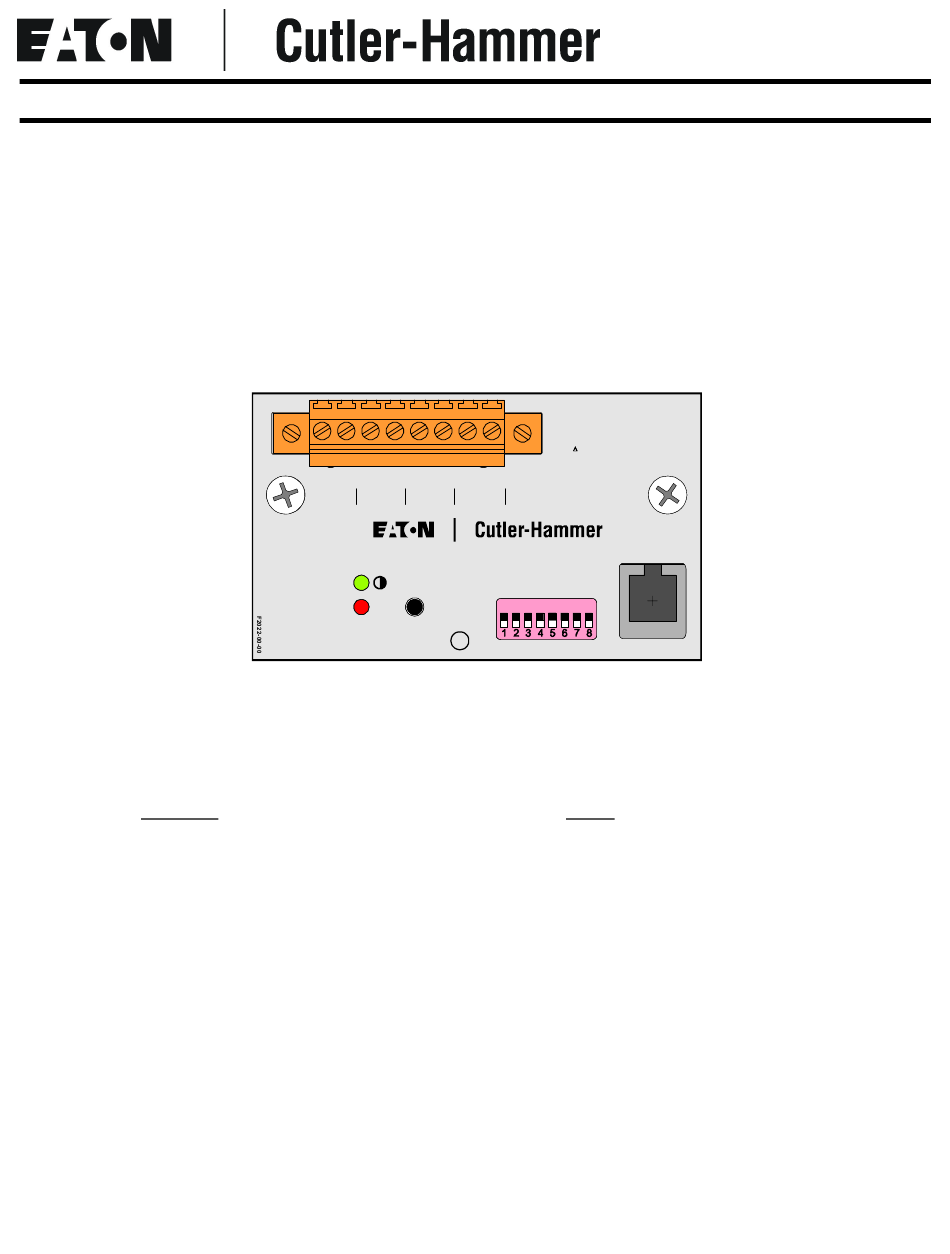

D64RPB125 DIGITAL GROUND FAULT RELAY
CANADA
Eaton Yale Ltd.
3228 South Service Road
Burlington, Ontario
L7R 3Y8
Revision 1
September, 2004
D64RPB125 INSTRUCTION MANUAL
J1
L+ N- R2 R1 14 13 12 11
24-125V
TEST/
N.O.
N.C.
AC/DC
RESET
C6
DIGITAL GROUND FAULT RELAY
R39
D64RPB125
D10
RUN
D1
S1
RESET
TRIP
DOUBLE CLICK
FOR TEST
T
Page 1
INTERNAL CT SENSOR
RATINGS
:
In (A) = 125
I n (A) = 0.1-2
C14
C16
J2
ON
SW1
1
4
6
2
3
5
7 8
OFF
RJ-12
U.S.A
Eaton Electrical Inc.
Power & Control Systems Operations
2900 Doc Bennett Road
Fayetteville, NC
28306
PUB IB04300001E
