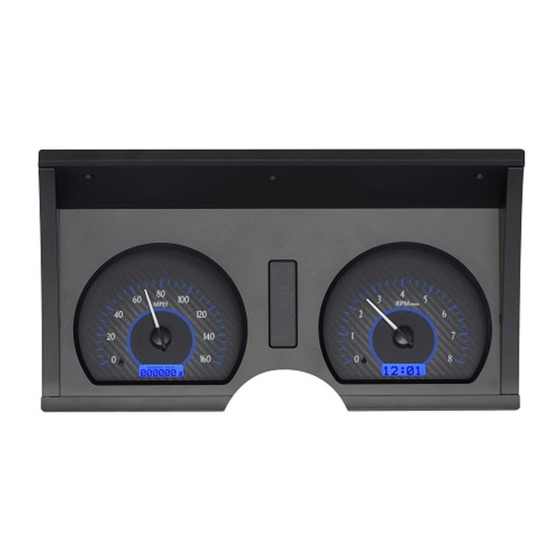

Dakota Digital VHX-78C-VET Instrument Installation

For 1978-82 corvette

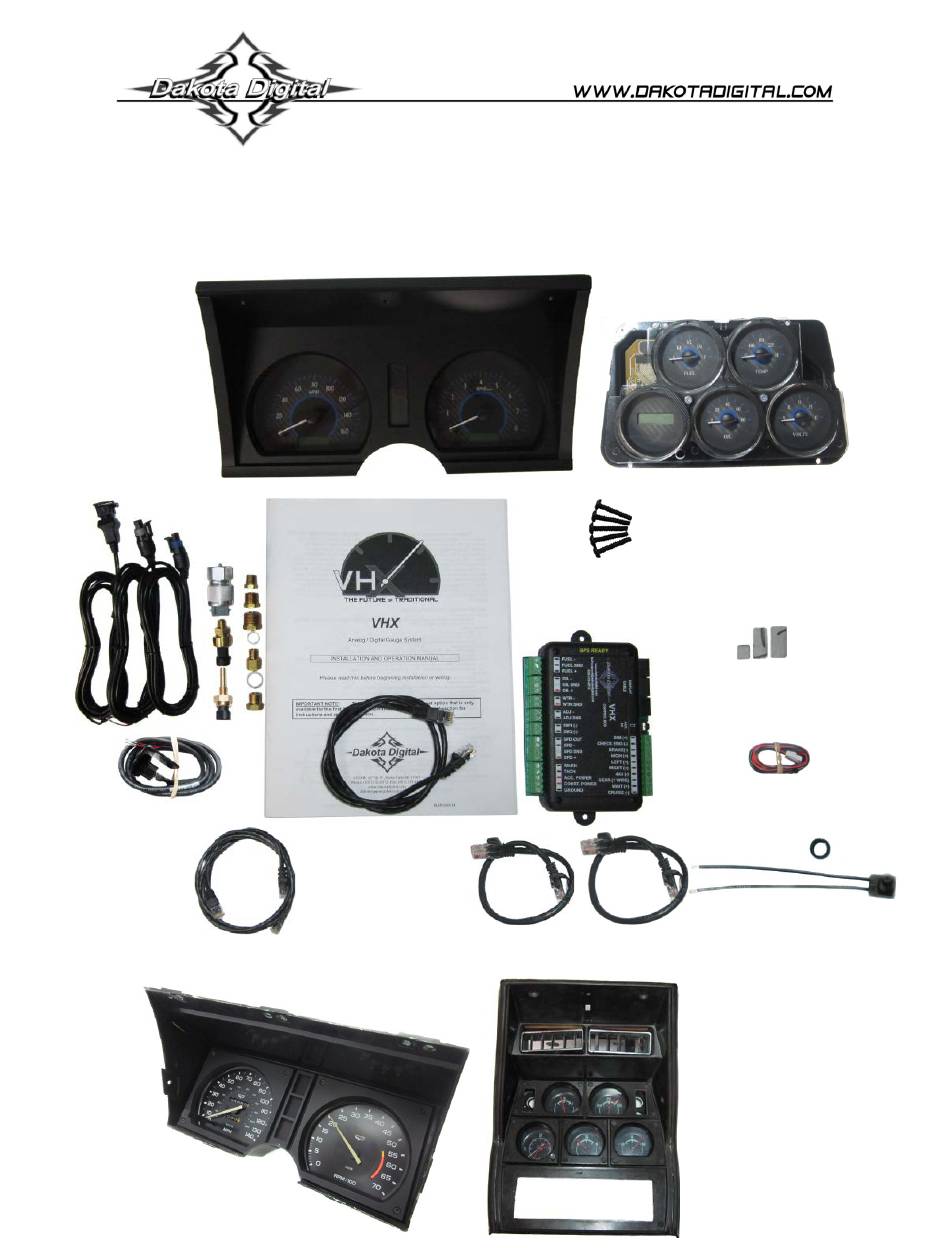

Your new VHX-78C-VET kit includes:

Universal

Sender Pack

Switch Assembly

Installation

1. Remove the stock main gauge cluster and the center gauge cluster from the dash and save all center

gauge hardware for reassembly.

VHX-78C-VET

Dakota Digital VHX Instrument Installation

For 1978-'82 Corvette

Installation Manuals

(1) 60" CAT5 Cable

(1) 36" CAT5 Cable

(2) 12" CAT5 Cable

VHX Displays

(5) 8-18 x 1" Screws

Control Box

(3) Block-Off Lenses

Clock Switch Harness

Clock Switch

Manual # 650444A
