Rimage Perfect Image Replacement Manual page 5

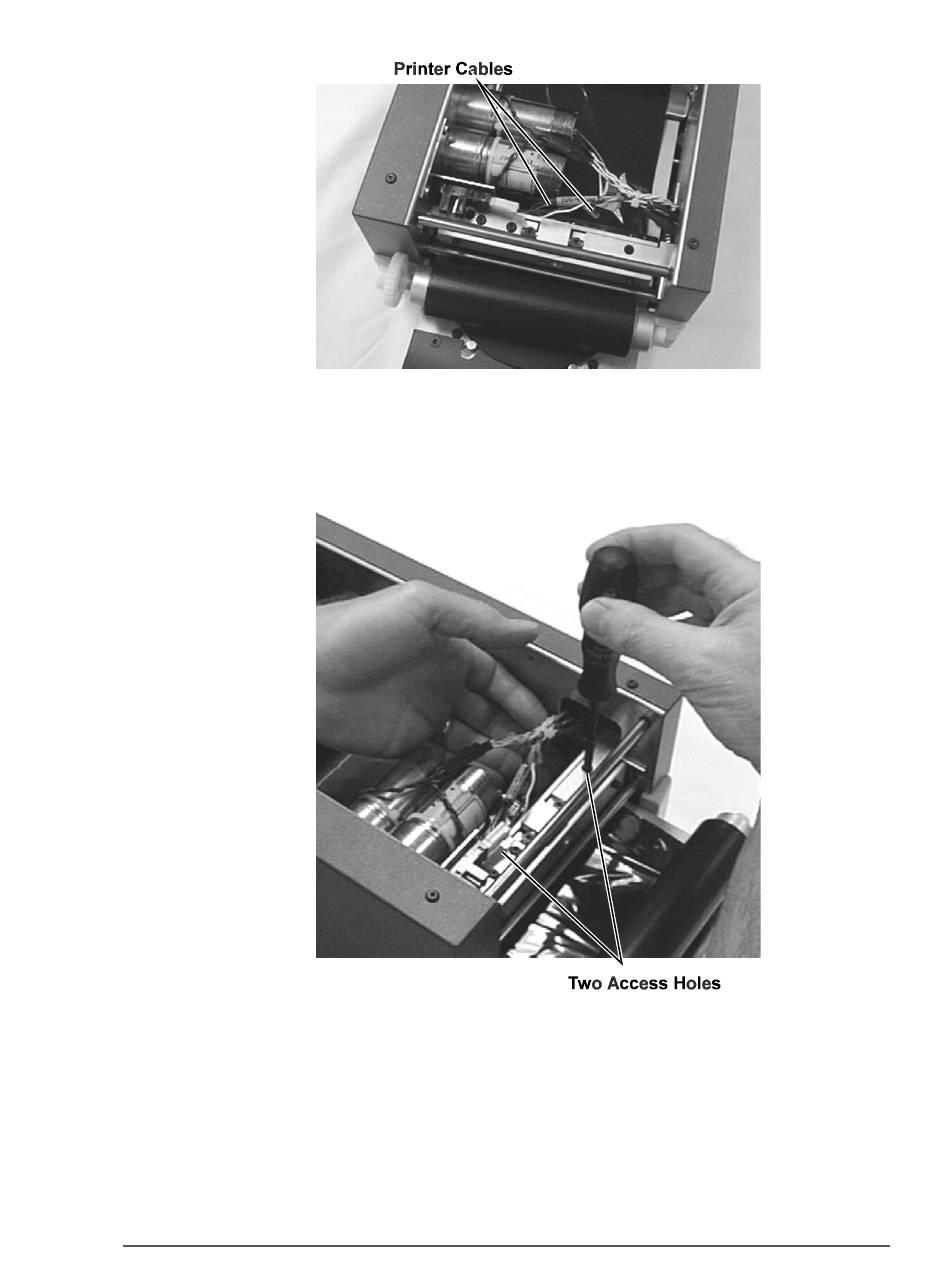

9. While supporting the printhead with your hand, use a T10 Torx screwdriver to
remove the screws inside the two access holes. These holes are located at the top
of the printhead pivot arm assembly (see the figure below). The printhead is
released from the printhead assembly. You may need to remove the sesnor from
the optical sensor bracket to gain access to the screw.
10. Remove the printhead by sliding it under the printhead pivot-arm assembly and
then toward the front of the printer. See the figure below.
5
