Description
This procedure consists of steps that describe how to replace the printhead for the CD
Printer. You should use an anti-static bracelet or another means of grounding
yourself when you are performing these procedures.
Serious
printhead damage
printhead. This procedure should be performed only by Rimage trained and qualified
personnel using the required tools. Rimage is not responsible for any equipment,
parts, or personnel damages that may be incurred by printhead cleaning,
adjustments, or replacements. Rimage offers factory servicing for all printers
including printhead replacements.
Required Tools
The following procedure to replace and adjust the CD printer's printhead requires a
CPR print head replacement kit (210538-001). This kit includes the necessary
screwdriver (Torx T10) along with the printhead. A 3/32" Allan Wrench is also needed.
Removing the Printhead
Before replacing the printhead, make sure the cam is not damaged, or out of
adjustment! From the Rimage Technical Website locate the "Cam Broken"
document.
1. Make sure the CD drawer is in the out position. If necessary, power up the printer
and press the Unit Attention button to open the drawer.
2. Power off the printer, then disconnect the power cord.
3. Remove the top printer cover by lifting the cover up.

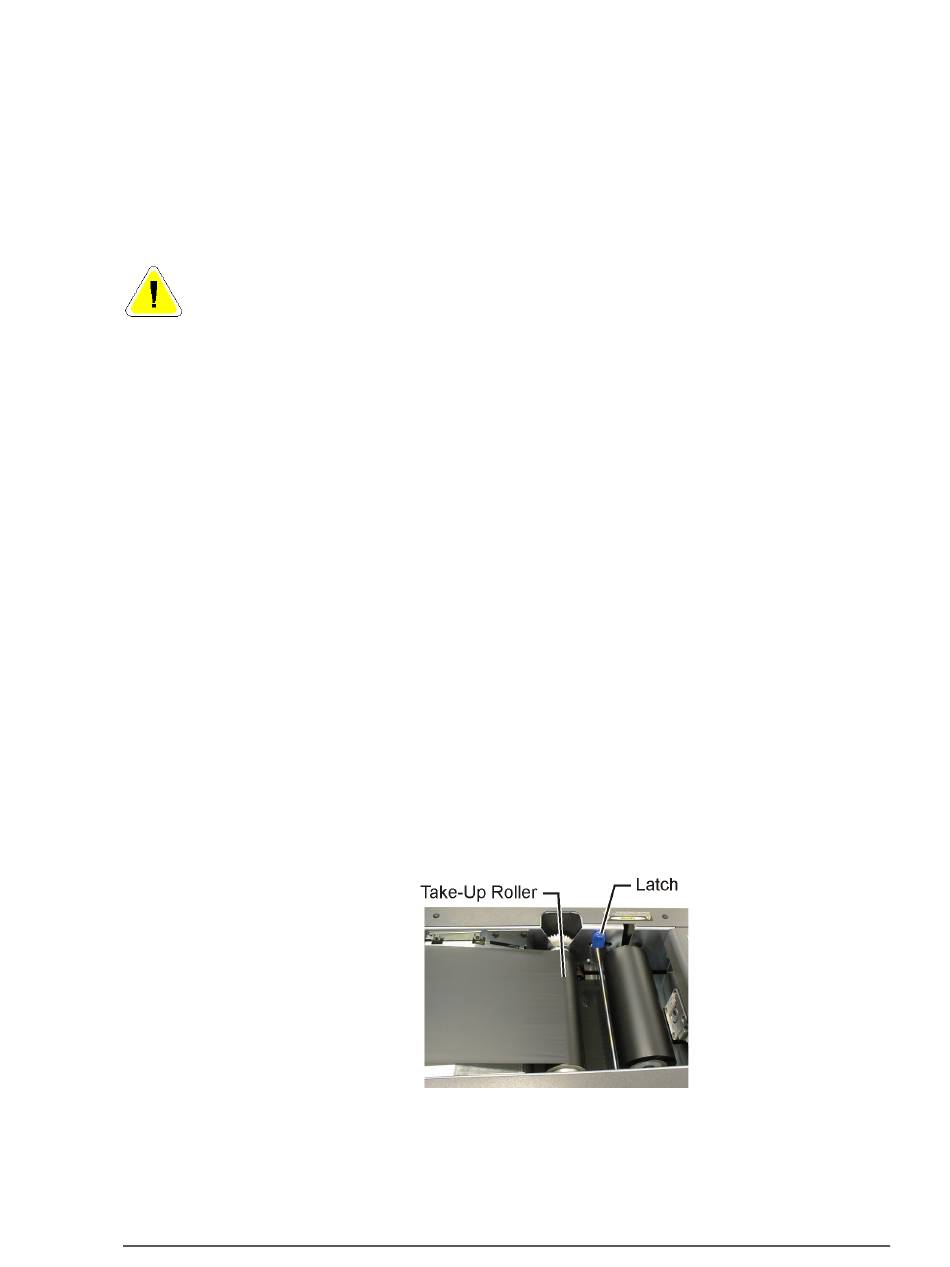

4. If the ribbon is present, remove the Take-up roller by pulling back the latch, then
lifting up on the Take-up roller. See the figure below.
Caution:
can result from improperly installing and/or adjusting the
3
