ASSEMBLY INSTRUCTIONS
RiverRidge
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
®

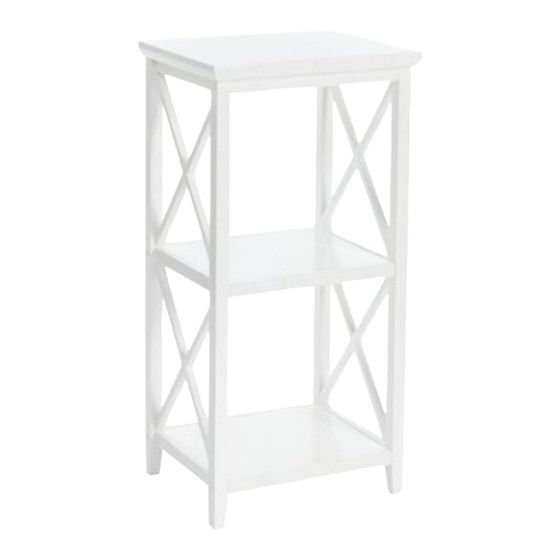

X-Frame 3-Shelf Storage Tower
ITEM #: 06-072/16-022
ITEM #: 06-073/16-023
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
White
Espresso
Advertisement
Table of Contents
Related Manuals for RiverRidge HOME 06-072/16-022
Summary of Contents for RiverRidge HOME 06-072/16-022
- Page 1 ASSEMBLY INSTRUCTIONS ® RiverRidge X-Frame 3-Shelf Storage Tower ITEM #: 06-072/16-022 White ITEM #: 06-073/16-023 Espresso ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF OR 75 POUNDS TOTAL WEIGHT, THIS MAY CAUSE DAMAGE TO THE SHELF AND MAY CAUSE SERIOUS INJURY OR DEATH.
- Page 3 PARTS LIST DESCRIPTION Top Board 2PCS Side Frame 2PCS Shelf Back Cross Bar Front Cross Bar...
- Page 4 PARTS DESCRIPTION 12PCS Screw (5x45mm) 4PCS Screw (4x35mm) 12PCS Plastic Cap 2PCS Screw (4x55mm) Allen Wrench 2PCS Plastic Anchor TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com.
- Page 5 STEP 1 1. Place top board (1) upside down on soft padded surface. 2. Attach back cross bar (4) to top board (1) by inserting 2 screws (B) through holes on back cross bar (4) and tighten to top board (1). 3.
- Page 6 STEP 3 1. Attach other side frame (2) to top board (1) and 2 shelves (3) by inserting 2 screws (A) through holes on side frame (2) and tighten to back cross bar (4) and front cross bars (5). 2. Insert 4 screws (A) through holes on side frame (2) and tighten screws (A) into both shelves (3).
- Page 7 STEP 5 Option #1: Securing to Drywall Position shelf against wall in desired location. Using a pencil, make 2 small marks on wall through holes on back cross bar (4). Move shelf away from wall and screw 2 plastic anchors (G) into wall on pencil marks.
- Page 8 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
