Page 2: Table Of Contents
PLUS Wireless Systems Products Manual Table of contents TECHNICAL SUPPORT AND ASSISTANCE ......................6 WARNINGS AND SAFETY ............................. 7 DISTRIBUTION ..............................8 BEFORE BEGINNING THE INSTALLATION ......................8 CHAPTER 1 – PLUS WIRELESS SYSTEM OVERVIEW ....................9 INTRODUCTION ..............................9 REFERENCES ................................ - Page 3 PLUS Wireless Systems Products Manual DIGITAL INPUTS BEHAVIOURS ........................32 DIGITAL OUTPUTS ............................33 PLUS REPEATER WRP001 ..........................36 MECHANICAL INTERFACE AND DIMENSIONS ....................36 BLOCK DIAGRAM ............................37 LABELS ................................37 LEDS AND BUTTONS WORKFLOW ......................... 37 WIRING ................................39 PLUS GATEWAY WGW420 ..........................
- Page 4 Figure 35 - Block diagram of WRP001 repeater ....................37 Figure 36 - Labels of WRP001 repeater ........................ 37 Figure 37 - Configuration of WRP001 repeater at Tekon Configurator software ..........38 Figure 38 - PLUS Repeater WRP001 wiring ......................39 Figure 39 –...
- Page 5 Table 25 - Description of each label from Tekon Configurator window (TWPH-1UT) .......... 44 Table 26 - Description of each label from Tekon Configurator window (TWP-4AI4DI1UT) ......... 45 Table 27 - Description of each label from Tekon Configurator window (Analog outputs) ........45 Table 28 - Modbus mapping - Holding Registers ....................48 Table 29 - Modbus mapping - Holding Registers - Analog output index ..............
-
Page 6: Technical Support And Assistance
If the unit malfunctions, it must be returned to the factory for evaluation. Upon examination by Tekon Electronics, if the unit is found to be defective, it will be repaired or replaced at no charge. This warranty is null if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion, current, heat, moisture or vibration;... -
Page 7: Warnings And Safety
PLUS Wireless Systems Products Manual WARNINGS AND SAFETY Read these safety instructions carefully. Keep this User Manual for later reference. Disconnect this equipment from power supply before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. Keep this equipment away from humidity. -
Page 8: Distribution
The distribution of Tekon Electronics products must ensure that the radio frequency of the product is accepted in the country of destination. Please check if the country you want to send the products to, allows the use of electronic devices with radio frequency emission equal to those emitted by the acquired products. -

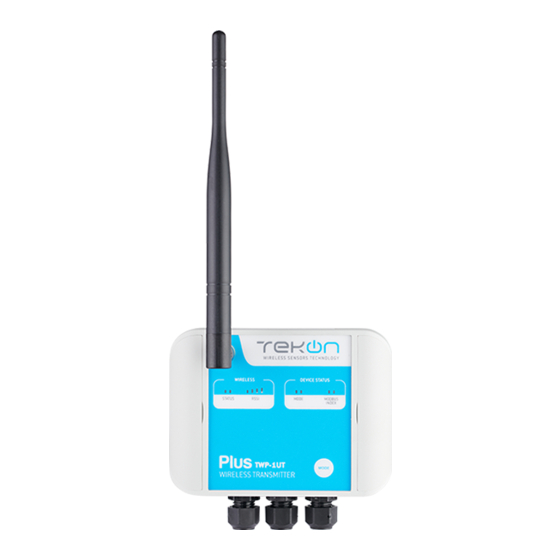

Page 9: Chapter 1 - Plus Wireless System Overview
The RS485 port allows the gateway to be integrated with other equipment to communicate with the Modbus protocol, thus playing the role of Modbus Slave. All the products in the PLUS wireless family are configurable through the free software Tekon Configurator. REFERENCES You can check all the references of PLUS product family available so far for the market. -
Page 10: Chapter 2 - Products
PLUS Wireless Systems Products Manual CHAPTER 2 – PRODUCTS PLUS TRANSMITTER TWP4AI MECHANICAL INTERFACE AND DIMENSIONS Figure 1 - TWP4AI transmitter mechanical interface and dimensions... -
Page 11: Block Diagram
PLUS Wireless Systems Products Manual BLOCK DIAGRAM Figure 2 - Block diagram of TWP4AI transmitter LABELS Figure 3 - Labels of TWP4AI transmitter LEDS AND BUTTONS WORKFLOW State Transmitter Mode Repeater Mode Power Network search On while wireless connection is not established, and RF module (Device Status) does not go to Sleep mode Configuration... -
Page 12: Wiring
PLUS Wireless Systems Products Manual (wireless) Connected Flashes five times if connected to the gateway and one time if Idem (Never goes Off) (right) connected to the repeater (Off 60 seconds after boot) (controlled by RF Configuration Idem module) Site survey Idem RSSI Site survey... -
Page 13: Figure 4 - Twp4Ai Pcb And Connectors
PLUS Wireless Systems Products Manual Comm. Trigger Input Not used Digital outputs Power Supply Analog inputs used Figure 4 - TWP4AI PCB and connectors The next table is a detailed description of each connector and its functionality. Please pay attention to the different configurations of the analog inputs in case of current or voltage mode Functionality Current Mode... -
Page 14: Analog Inputs
The 4 analog inputs are configured independently, thus allowing to define whether the electrical signal that arrives at each of the inputs is of the current or voltage type. During the transmitter configuration mode, in the “Tekon Configurator” software, a dedicated tab is displayed to the configuration of the analog inputs. -
Page 15: Digital Input
PLUS Wireless Systems Products Manual Figure 6 - Analog inputs options in Tekon Configurator software 2. Analog inputs values You can read the analog inputs at the configuration with the intention of checking if the signal is being received correctly. -
Page 16: Figure 7 - Digital Input Tab In Tekon Configurator Software
PLUS Wireless Systems Products Manual Figure 7 - Digital input tab in Tekon Configurator software The different operation modes of the digital input allow the user to define under what circumstances we want a communication triggered by an event monitored by the equipment connected to this input. -
Page 17: Configuration
Click on “Read” to check the state of the digital input trigger. DIGITAL OUTPUTS In the “Digital Outputs” tab of the Tekon Configurator software, the user can configure the options of the digital outputs that control signal loss, remote control status and warm-up time for devices to communicate with the gateway. -
Page 18: Table 6 - Description Of Remote Control Output Features
PLUS Wireless Systems Products Manual Remote Control Output Feature Value / State Description Startup State Initial state of the digital output when the device is powered on. Last State Link Lost State Digital output status when the transmitter link to the gateway is lost. Last State Table 6 - Description of Remote Control output features External Power Control Output... -
Page 19: Plus Head Transmitter Twph-1Ut
PLUS Wireless Systems Products Manual PLUS HEAD TRANSMITTER TWPH-1UT MECHANICAL INTERFACE AND DIMENSIONS Figure 10 – TWPH-1UT transmitter mechanical interface and dimensions BLOCK DIAGRAM Figure 11 - Block diagram of TWPH-1UT transmitter... -
Page 20: Labels
PLUS Wireless Systems Products Manual LABELS Figure 12 - Labels of TWPH-1UT transmitter LEDS AND BUTTONS WORKFLOW State Transmitter Mode Repeater Mode Configuration Idem Green Try connection Red LED blinks Idem (left) (right) Connected Red and Green LED flashes alternately. Goes off after 1 minute. Does not go off Sleep / Normal Does not go off... -
Page 21: Device
DEVICE The configuration of the elements necessary for the communication of TWPH-1UT transmitter within the gateway network is done in the Device tab, in the Tekon Configurator software. Figure 13 - Device tab in Tekon Configurator software The displayed fields can be configured with exception of the “Serial Number” value. -
Page 22: Wiring
PLUS Wireless Systems Products Manual Figure 14 - Sensor input tab in Tekon Configurator software In case of an error in the sensor input, the value “65535” is displayed in the “Sensor temperature” field. WIRING RTD 2 Wires RTD 3 Wires... -
Page 23: Plus Transmitter Twp-4Ai4Di1Ut
PLUS Wireless Systems Products Manual PLUS TRANSMITTER TWP-4AI4DI1UT MECHANICAL INTERFACE AND DIMENSIONS Figure 16 – TWP-4AI4DI1UT transmitter mechanical interface and dimensions... -
Page 24: Block Diagram
PLUS Wireless Systems Products Manual BLOCK DIAGRAM Figure 17 - Block diagram of TWP-4AI4DI1UT LABELS Figure 18 - Labels of TWP-4AI4DI1UT transmitter LEDS AND BUTTONS WORKFLOW State Transmitter Mode Repeater Mode Power Network search On while wireless connection is not established, and RF module (Device Status) does not go to Sleep mode Configuration... -
Page 25: Wiring
PLUS Wireless Systems Products Manual (controlled by RF Site survey Idem module) Status Network search Idem (Wireless) Connected Flashes five times if connected to the gateway and one time if Idem (Never goes Off) (right) connected to the repeater (Off 60 seconds after boot) (controlled by RF Configuration Idem... -
Page 26: Figure 19 - Twp-4Ai4Di1Ut Pcb And Connectors
PLUS Wireless Systems Products Manual The connectors marked as “Not used” should not be used in any circumstances in this transmitter. Comm. Trigger Input Digital Outputs Power Supply Analog inputs used Figure 19 - TWP-4AI4DI1UT PCB and connectors Universal Temperature Input The universal temperature input allows to user to connect PT100 or thermocouple type sensors. -
Page 27: Device
Table 13 - Description of TWP-4AI4DI1UT connections DEVICE The configuration of the elements necessary for the communication of TWP-4AI4DI1UT transmitter within the gateway network is done in the Device tab, in the Tekon Configurator software. Figure 22 - Device tab in Tekon Configurator software... -
Page 28: Sensor Input
Communication period of the transmitter. (*) See the topic “Operation Mode” to know more about this feature Table 14 - Description of Tekon Configurator "Device" tab for TWP-4AI4DI1UT SENSOR INPUT The TWP-4AI4DI1UT transmitter has an universal temperature input that can support PT100-type temperature sensors or thermocouples. -
Page 29: Figure 24 - Analog Inputs Tab In Tekon Configurator Software
PLUS Wireless Systems Products Manual configuration mode, in the “Tekon Configurator” software, a dedicated tab is displayed to the configuration of the analog inputs. Figure 24 - Analog inputs tab in Tekon Configurator software 1. Configuration Expand the checkbox for the analog input you want to configure. -
Page 30: Digital Inputs
The value returned for the digital input is binary – 0 or 1. Figure 26 - Digital inputs tab in Tekon Configurator software The different operation modes of the digital input allow the user to define under what circumstances we want... -
Page 31: Figure 27 - Digital Input Options In Tekon Configurator Software
PLUS Wireless Systems Products Manual Figure 27 - Digital input options in Tekon Configurator software State Description Disabled Digital input is off. Raising Edge Communicates when the state goes from 0 to 1. Falling Edge Communicates when the state goes from 1 to 0. -
Page 32: Digital Inputs Behaviours
PLUS Wireless Systems Products Manual Figure 28 - Digital Inputs configuration and options The options of each digital input are now available for configuration. Configuration Select the digital input transition trigger. Click on “Write” to set and save the changes. Click on “Read”... -
Page 33: Digital Outputs
Figure 31 - Behaviour of digital input activation by Both DIGITAL OUTPUTS In the “Digital Outputs” tab of the Tekon Configurator software, the user can configure the options of the digital outputs that control signal loss, remote control status and warm-up time for devices to communicate with the gateway. -
Page 34: Table 16 - Description Of The Digital Output States Related To The Link Lost Output
PLUS Wireless Systems Products Manual Link Lost Output In this digital output it is possible to configure under which circumstances the loss of the connection signal to the gateway will activate the LED present on the transmitter front panel. This output is featured by three points, described in the following table. -
Page 35: Figure 33 - Digital Outputs Tab In Tekon Configurator Software
PLUS Wireless Systems Products Manual Configuration Select the required options or define the values in each field. Click on “Write” to set and save the changes. Figure 33 - Digital outputs tab in Tekon Configurator software... -
Page 36: Plus Repeater Wrp001
PLUS Wireless Systems Products Manual PLUS REPEATER WRP001 MECHANICAL INTERFACE AND DIMENSIONS Figure 34 – WRP001 repeater mechanical interface and dimensions... -
Page 37: Block Diagram
PLUS Wireless Systems Products Manual BLOCK DIAGRAM Figure 35 - Block diagram of WRP001 repeater LABELS Figure 36 - Labels of WRP001 repeater LEDS AND BUTTONS WORKFLOW State Repeater Power Network search (Device Status) Configuration Connected Mode Configuration Flashes twice alternately with right LED (left) Network search Flashes every second... -
Page 38: Figure 37 - Configuration Of Wrp001 Repeater At Tekon Configurator Software
The PLUS WRP001 repeater is a quick setup device, thus promoting the connection to the network of gateway and transmitters. Being a single function device, it is only possible to associate with one network. Figure 37 - Configuration of WRP001 repeater at Tekon Configurator software Configuration 1. -
Page 39: Wiring
PLUS Wireless Systems Products Manual WIRING The PLUS Repeater WRP001 has a single wiring for the power supply. Power Supply Figure 38 - PLUS Repeater WRP001 wiring... -
Page 40: Plus Gateway Wgw420
PLUS Wireless Systems Products Manual PLUS GATEWAY WGW420 MECHANICAL INTERFACE AND DIMENSIONS Figure 39 – WGW420 gateway mechanical interface and dimensions... -
Page 41: Block Diagram
PLUS Wireless Systems Products Manual BLOCK DIAGRAM Figure 40 - Block diagram of WGW420 gateway LABELS Figure 41 - Labels of WGW420 gateway LEDS WORKFLOW State Gateway Wireless Normal Red LED on RF data reception; Green LED on data transmission. Boot Configuration Modbus... -
Page 42: Wiring
PLUS Wireless Systems Products Manual WIRING At this section we can check all the wiring connections allowed to the gateway WGW420. POWER RS485 ANALOG OUTPUTS Figure 42 - Connections in PLUS WGW420 gateway MODBUS In the Modbus tab, user has direct access to the data coming from the transmitters and can configure the analog outputs of the WGW420 gateway. -
Page 43: Remote Devices
Figure 43 - Tekon Configurator layout of remote devices tab TAB LAYOUT Node Index –... -
Page 44: Common Data
PLUS Wireless Systems Products Manual The layouts from Tekon Configurator have information common to all transmitters and other information that is reserved for the type of transmitter. COMMON DATA Variable Description RSSI Received signal strength indication Comm. Period Communication period configured for the transmitter... -
Page 45: Analog Outputs
Number of elapsed communications periods without new values and signalize an error. MB Add. Link Link to modbus address to convert in current Act. Current Actual value registered in this output index. Table 27 - Description of each label from Tekon Configurator window (Analog outputs) - Page 46 PLUS Wireless Systems Products Manual 1. Configuration Configure the fields the output index; Click on “Write” icon to set and save the changes. If the changes are made to the modbus and in run-time, they are permanently safeguarded even after rebooting. It is recommended that the application modbus master guarantees the reconfiguration of the slaves to ensure their smooth operation.
-
Page 47: Chapter 3 - System Configuration
In the transmitter’s configuration process at the Tekon Configurator software, it is possible to select whether it will function as an end device or as a repeater. Please check the installation guide, at Tekon Electronics website, to know how to configure this feature. -
Page 48: Modbus Mapping
PLUS Wireless Systems Products Manual MODBUS MAPPING HOLDING REGISTERS – TRANSMITTERS DATA Description Address Number Data Data Type Words Serial Number (Transmitter Modbus Index-1) x 20+0 UINT32 Transmitter serial number Transmitter Model (Transmitter Modbus Index-1)x20+2 UINT16 868 MHZ - 09 - TWP4AI | 24 - TWPH- 1UT | 37 –... -
Page 49: Coils Registers (Gateway)
- Installation guide (available on the Tekon Electronics website for free download); - Tekon Configurator software (available on the Tekon Electronics website for free download); - Connection cables required to power the device (applicable to the gateway) and connect to the... -
Page 50: Appendix
PLUS Wireless Systems Products Manual APPENDIX TECHNICAL SPECIFICATIONS PLUS TRANSMITTER TWP4AI RADIO SPECIFICATIONS 868MHZ 915MHZ Range Up to 4Km LoS Frequency band 868 to 869MHz 902 to 928MHz Number of channels Radio receiver sensitivity -97 to -110 dBm Transmit power 25 to 27 dBm 8 to 27 dBm Transmission rate... - Page 51 PLUS Wireless Systems Products Manual DIGITAL INPUT COMMUNICATION LOSS REMOTE OUTPUT EXTERNAL SUPPLY Range 5 to 24V DC 5 to 24V DC 5 to 24V DC Type Sinking / NPN Sinking / NPN Sinking / NPN Maximum current protection 90mA 90mA 90mA Start state...
-
Page 52: Plus Head Transmitter Twph-1Ut
PLUS Wireless Systems Products Manual PLUS HEAD TRANSMITTER TWPH-1UT RADIO SPECIFICATIONS 868MHZ 915MHZ Range Up to 4Km LoS Frequency band 868 to 869MHz 902 to 928MHz Number of channels Radio receiver sensitivity -97 to -110 dBm Transmit power 25 to 27 dBm 8 to 27 dBm Transmission rate 19 to 76,8kbit/s... - Page 53 PLUS Wireless Systems Products Manual MEASUREMENT ACCURACY Reference conditions Power supply 12V DC ± 1% Ambient temperature 23ºC Digital measuring errors See table “Digital measuring accuracy” table Internal cold junction Accuracy < ± 0,50 ºC Resolution 0,01 ºC Influence of ambient temperature on RTD measurement <...
-
Page 54: Plus Repeater Wrp001
PLUS Wireless Systems Products Manual PLUS REPEATER WRP001 RADIO SPECIFICATIONS 868MHZ 915MHZ Range Up to 4Km LoS Frequency band 868 to 869MHz 902 to 928MHz Number of channels Radio receiver sensitivity -99 to -104 dBm -97 to -110 dBm Transmit power 0 to 27 dBm 8 to 27 dBm Transmission rate... -
Page 55: Plus Gateway Wgw420
PLUS Wireless Systems Products Manual PLUS GATEWAY WGW420 RADIO SPECIFICATIONS 868MHZ 915MHZ Range Up to 4Km LoS Frequency band 868 to 869MHz 902 to 928MHz Number of channels Radio receiver sensitivity -97 to -110 dBm Transmit power 25 to 27 dBm 8 to 27 dBm Transmission rate 19 to 76,8kbit/s... -
Page 56: Plus Transmitter Twp-4Ai4Di1Ut
PLUS Wireless Systems Products Manual PLUS TRANSMITTER TWP-4AI4DI1UT RADIO SPECIFICATIONS 868MHZ 915MHZ Range Up to 4Km LoS Frequency band 868 to 869MHz 902 to 928MHz Number of channels Radio receiver sensitivity -97 to -110 dBm Transmit power 25 to 27 dBm 8 to 27 dBm Transmission rate 19 to 76,8kbit/s... - Page 57 PLUS Wireless Systems Products Manual Influence of ambient temperature on RTD measurement < ± 0,001 ºC / ºC on thermocouple Thermocouples J, K, N, T: ≤ ± 0,005 ºC / ºC Thermocouple R: ≤ ± 0,010 ºC / ºC Thermocouple S: ≤ ± 0,2 ºC / ºC POWER SUPPLY Supply voltage 5 to 24V DC ±...
- Page 58 PLUS Wireless Systems Products Manual MECHANICAL INTERFACE Push-in spring terminal blocks (internal) Bucins PG-7 ø Min:2.5 ø Max: 6.5 1.5mm2 (0.0591in) Micro USB internal connector OPERATING ENVIRONMENT ENVIRONMENTAL STORAGE CONDITIONS CONDITIONS Temperature -30 to 80ºC Relative humidity ≤ 95% (non- condensing) DIGITAL MEASURING ACCURACY RESISTANCE THERMOMETER (RTD) Sensor...
- Page 59 PLUS Wireless Systems Products Manual Tekon Electronics Quinta do Simão EN109 – Esgueira 3800-230 Aveiro – Portugal T. +351 234 303 320 M. +351 937 270 062 sales@tekonelectronics.com www.tekonelectronics.com...
