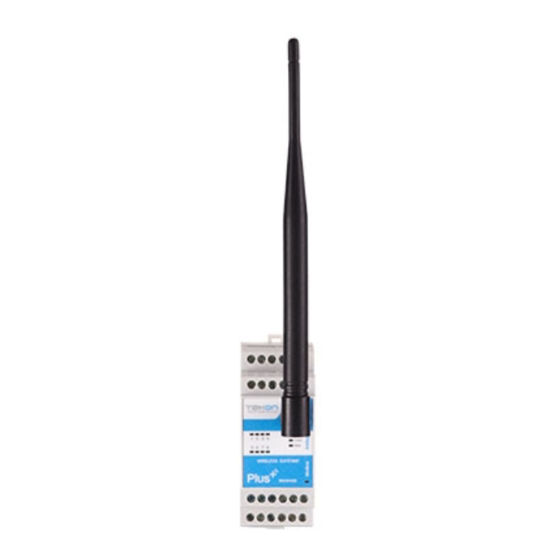

- Page 1 PLUS WGW420 PLUS WGW420 PLUS WGW420 INSTALLATION GUIDE IG_PLUS_WGW420_E01A TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 933 033 250 sales@tekonelectronics.com...
- Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS WGW420 WIRELESS GATEWAY INSTALLATION GUIDE Table of contents step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Pages 3 to 11 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION Pages 12 to 14...
- Page 3 WGW420 PLUS WIRELESS GATEWAY CONFIGURATION...
- Page 4 PLUS WGW420 INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft® Windows® Operating System. Connect the antenna to the Gateway. Wiring Connect the power supply and then the RS485-USB cable to the Gateway.
- Page 5 Green LEDs permanently on Red LEDs permanently on WIRELESS GATEWA Y 10 Seconds to enter configuration mode Normal mode Open Tekon Configurator Software and select PLUS >> Gateway >> Configuration Tekon Configurator software is free of charge and available at www.tekonelectronics.com...
- Page 6 PLUS WGW420 INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Select serial port corresponding to WGW420 PLUS Wireless Gateway Click on the Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft ® Windows® operating system.
- Page 7 INSTALLATION GUIDE PLUS WGW420 step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Perform a power cycle on the Gateway. NOTE: After power up, you have 10 seconds to enter confi guration mode by clicking on Connect button ( (while green LEDs are permanently on).
- Page 8 PLUS WGW420 INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. You can also verify configuration mode activation by checking LEDs on the gateway. Green LEDs performing...
- Page 9 INSTALLATION GUIDE PLUS WGW420 step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Take note of device confi guration data available, namely: Modbus Address, Modbus Baudrate, Modbus Parity, Modbus Stop Bits, Wireless Network ID Wireless Channel. NOTE: The wireless network connection between devices is ensured by setting the same Wireless Network ID and Wireless Channel parameters.
-
Page 10: Modbus Communication
PLUS WGW420 INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Modbus Communication Select Modbus tab of the Gateway and set the previously saved confi gurations. Ensure that Port name, Baudrate, Parity Modbus Address fi elds are the same as those obtained in confi guration mode. - Page 11 INSTALLATION GUIDE PLUS WGW420 step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION NOTE: See WGW420 Datasheet to access LED indication information - page 4. Red LEDs permanently on LED flashes on each wireless communication WIRELESS GATEWA Y...
- Page 12 WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION...
- Page 13 INSTALLATION GUIDE PLUS WGW420 step GATEWAY ANALOG OUTPUTS Follow steps 06 and 07 of the PLUS Wireless Gateway Confi guration. Tekon Confi gurator Software select PLUS >> Gateway >> Analog Outputs menu Considering the transmitter confi guration with GTW Modbus Index=1, there is a Gateway Modbus Address Window corresponding to Modbus address window [0-19].
- Page 14 PLUS WGW420 INSTALLATION GUIDE step GATEWAY ANALOG OUTPUTS Link Analog Output Index 1 (Gateway) to Analog Input 1 (Transmitter) and confi gure MB Add Link according to the previous step. Set minimum and maximum values and click on Write 4000 (4mA)
- Page 15 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Avenida Europa, 460 Quinta do Simão 3800-230 Aveiro PORTUGAL Sales P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com Technical Support E.: support@tekonelectronics.com...
